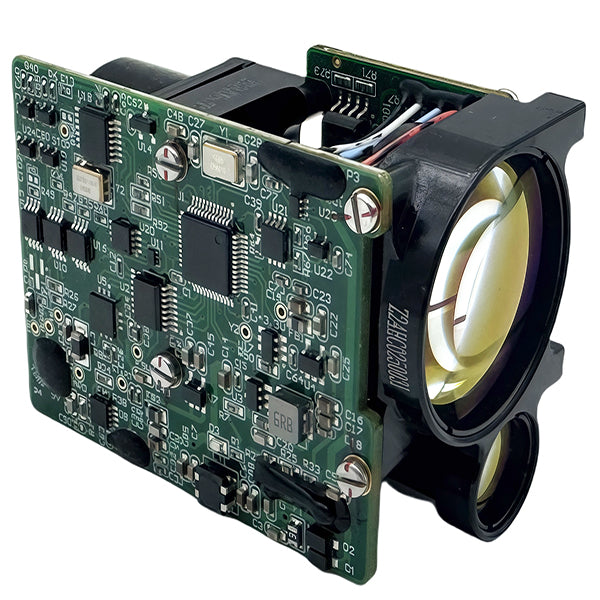

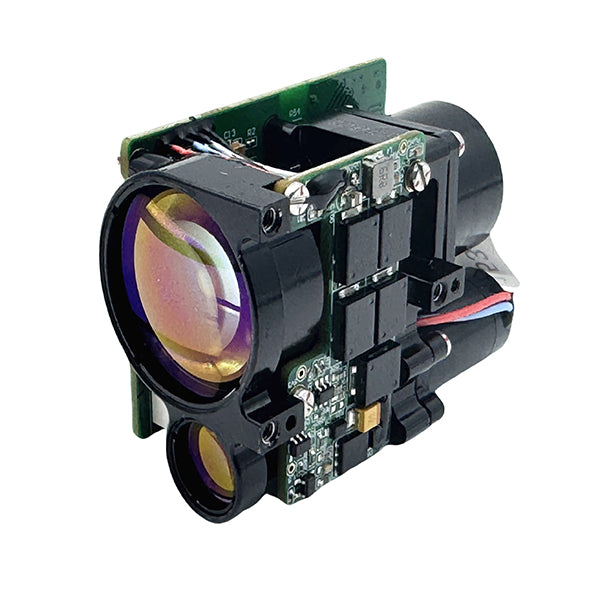

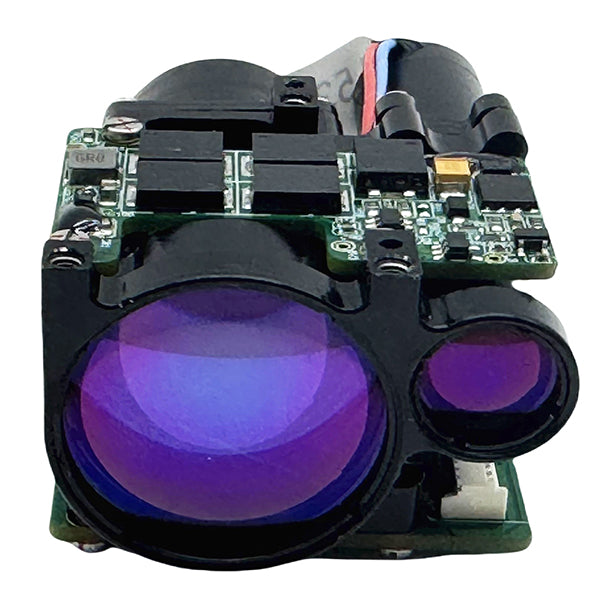

OPTIVIA 1535 nm Laser Rangefinder LRFB5300FC
OPTIVIA 1535 nm Laser Rangefinder LRFB5300FC
OPTIVIA 1535 nm Laser Rangefinder LRFB5300FC
OPTIVIA 1535 nm Laser Rangefinder LRFB5300FC
OPTIVIA 1535 nm Laser Rangefinder LRFB5300FC

LRFB5300FC

OPTIVIA 1535 nm Laser Rangefinder LRFB5300FC

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ±1m
laser rangefinder operating wavelength 1535nm ± 10nm
laser rangefinder peak power 0.04 MW
laser rangefinder ranging range ≥50m - 5300m
ELECTRICAL SPECIFICATIONS
power consumption Standby≤1.8W; Operating ≤4W
power supply DC 10 - 14V (typ 12V)
INTERFACE SPECIFICATIONS
external interface communication interface RS422
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -55°C to +70°C

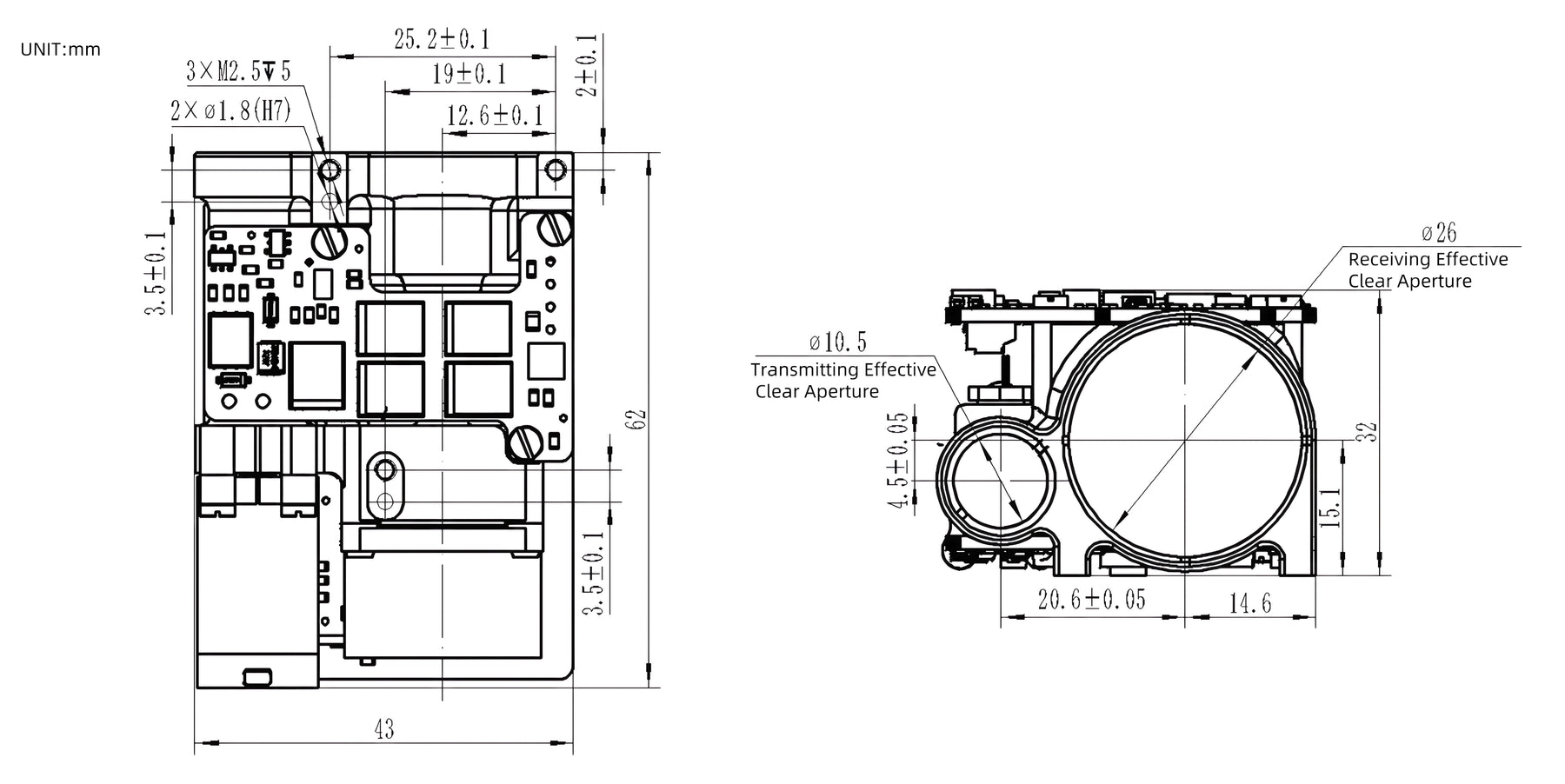

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 62 mm
product weight ≤0.085 kg
product width 43 mm
volume ≤62 x 43 x 42 mm
