LRFB6000EC

OPTIVIA 1535 nm Laser Rangefinder LRFB6000EC

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ≤±1m
laser rangefinder operating wavelength 1535nm ± 5nm
laser rangefinder peak power 0.04 MW
laser rangefinder ranging range ≥30m-6000m
ELECTRICAL SPECIFICATIONS
power consumption Standby1≤1.5W (No Laser Emission at Power-On); Standby2≤3.5W (Continuous Ranging at 10Hz); Peak≤8W
power supply DC 9 - 15V
INTERFACE SPECIFICATIONS
external interface communication interface RS422
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -50°C to +70°C

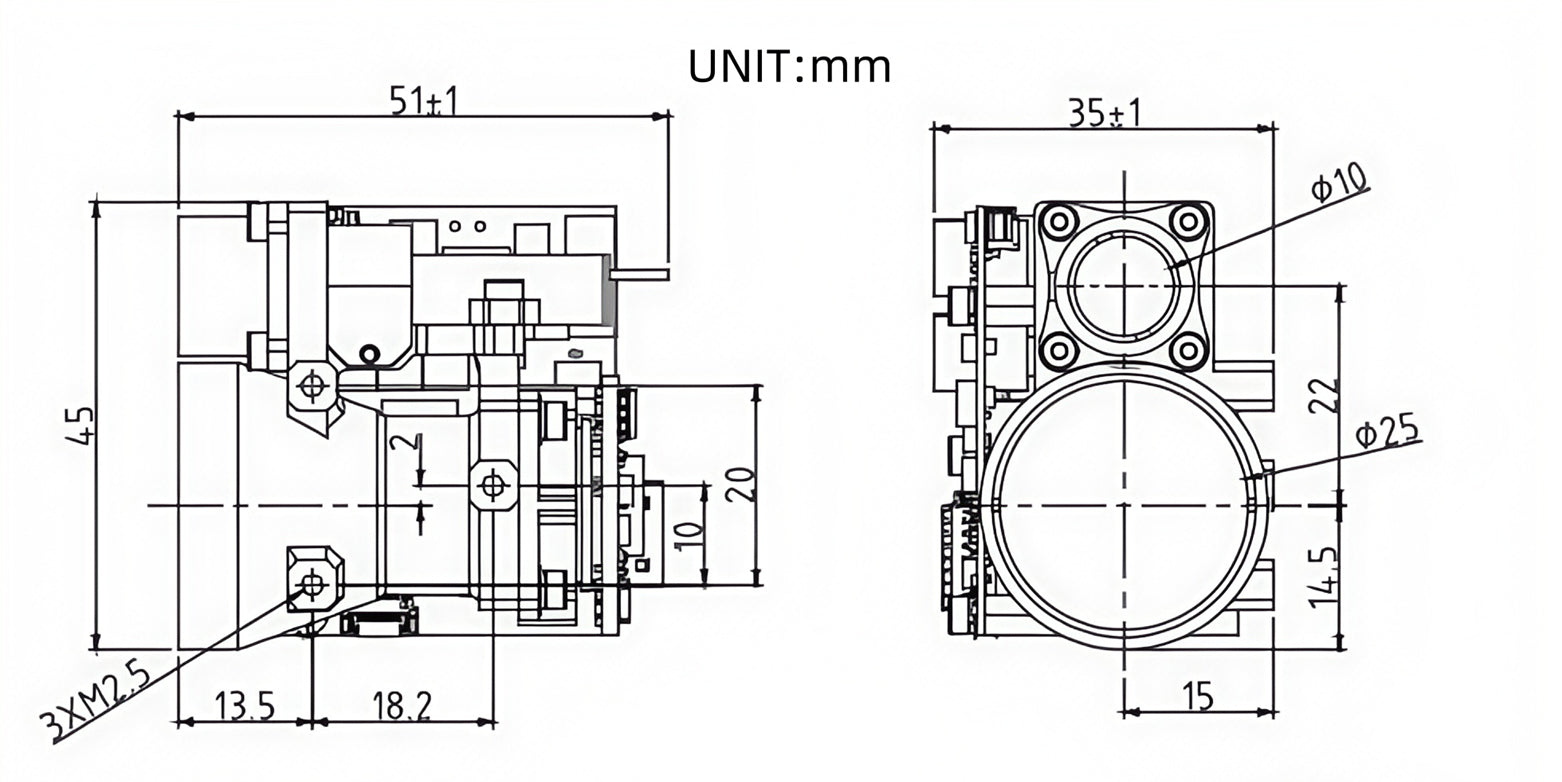

PHYSICAL SPECIFICATIONS
product height 45 mm
product length 51 mm
product weight ≤0.075g
product width 35 mm
volume ≤51 x 35 x 45 mm
