| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ≤±1m |
| laser rangefinder operating wavelength | 1535nm ± 5nm |
| laser rangefinder peak power | 0.06 MW |
| laser rangefinder ranging range | ≥30m-8000m |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg≤3W; Peak≤6W |
| power supply | DC 9 - 15V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |

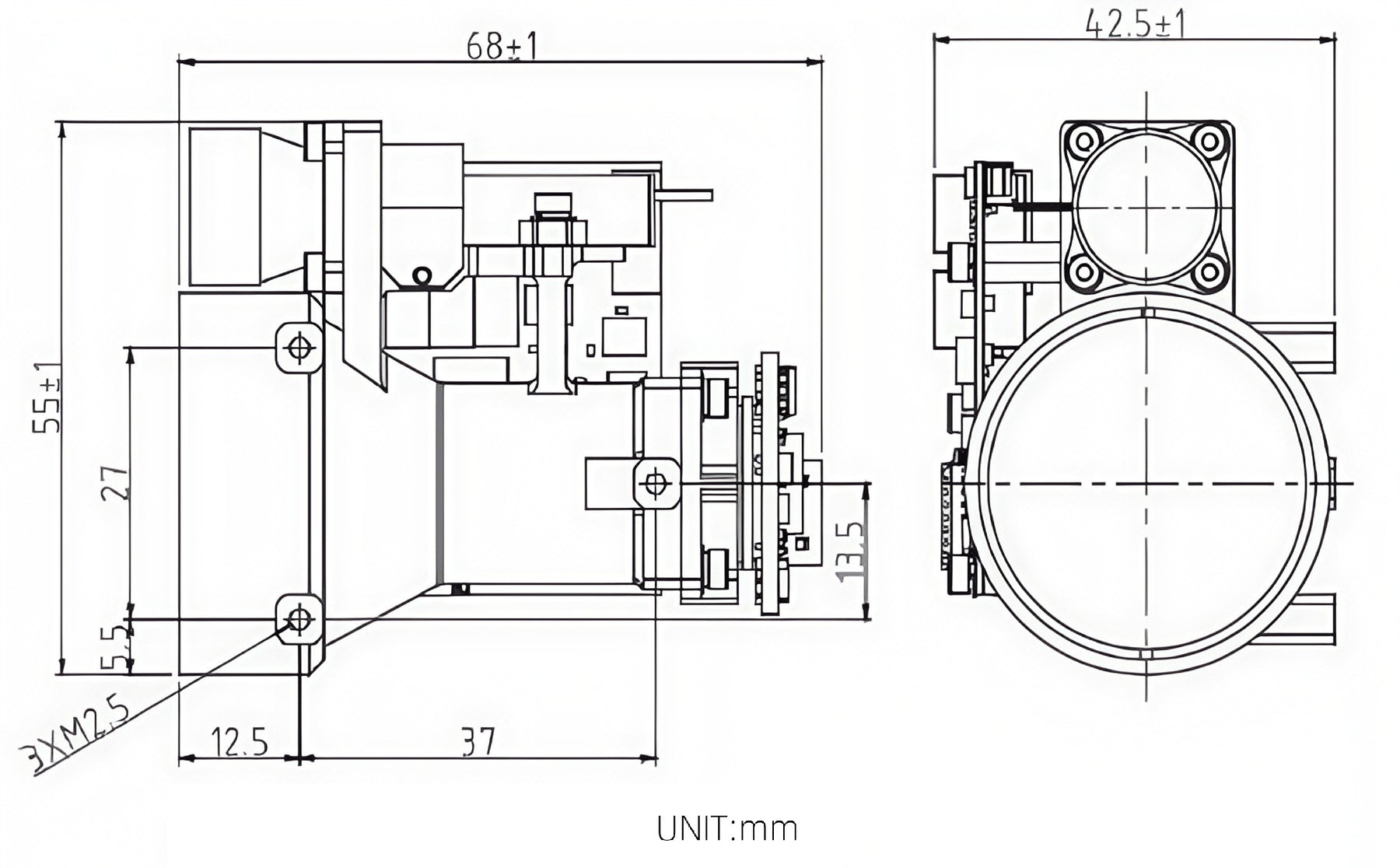

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 55 mm |
| product length | 68 mm |
| product weight | ≤0.1 kg |
| product width | 42.5 mm |
| volume | ≤68 x 42.5 x 55 mm |
