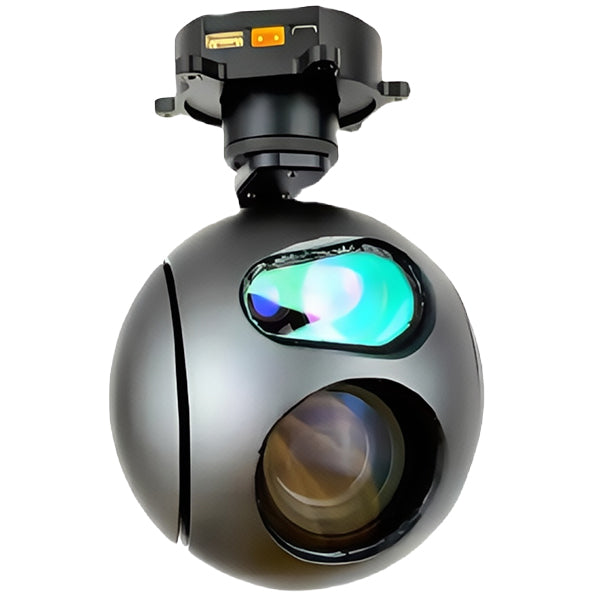

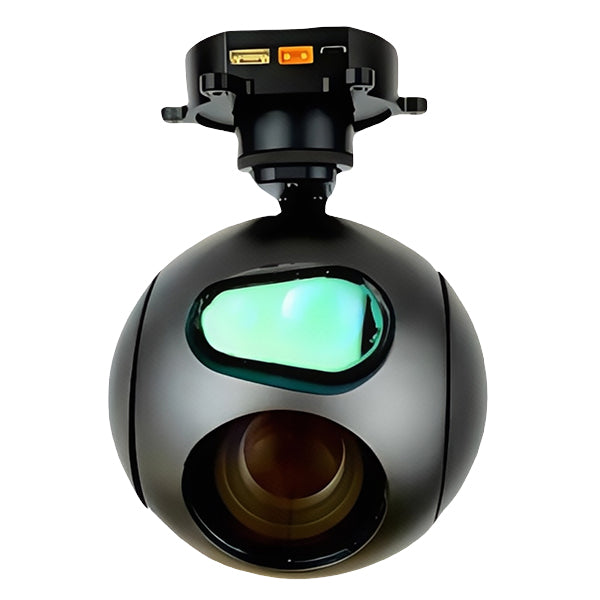

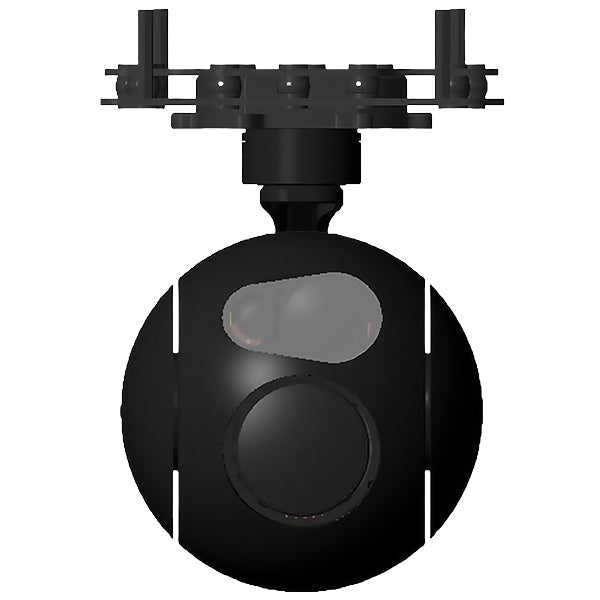

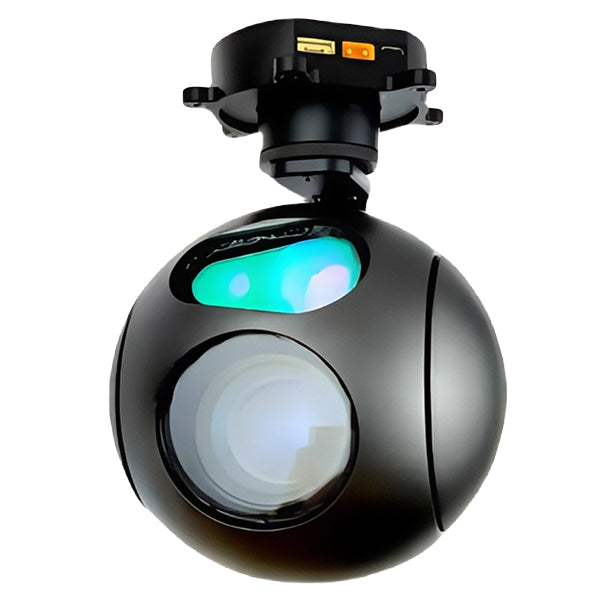

OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera
OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera

OPT162BR

OPTIVIA 30x EO + 3000m Laser Rangefinder Gimbal Camera

Electro-Optical PODs

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
recording time ≥60 min ≥ Small drone flight time
stabilization accuracy horizontal jitter angle ±0.03°
stabilization accuracy pitch jitter angle ±0.02°
stabilization accuracy roll jitter angle ±0.02°
standard preinstalled components 30x Opt. Zoom Visible Light Camera; Laser Rangefinder
Product Revision A
RF SPECIFICATIONS
laser rangefinder accuracy Acc. ±2m, Ranging Resolution 20m
laser rangefinder operating wavelength 1535nm ± 5nm
laser rangefinder ranging range 20 - 3000m
visible light fov diagonal WIDE 67.8° ± 5% TELE 2.77° ± 5%
visible light fov horizontal WIDE 59.8° ± 5% TELE 2.34° ± 5%
visible light fov vertical WIDE 40.5° ± 5% TELE 1.48° ± 5%
visible light resolution 1080P@30fps
ELECTRICAL SPECIFICATIONS
power consumption Standby: 8W
power supply DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V
INTERFACE SPECIFICATIONS
control method Speed adaptive control; External control via network/Serial port
external interface communication interface TTL
external interface video interface RTSP Stream, IP Output: 480P & 1080P Video; Local TF Card Storage, 1080P Video Streams
ENVIRONMENTAL SPECIFICATIONS
temperature operational -10°C to +55°C (20% - 80% RH)
temperature storage -30°C to +60°C (20% to 95% RH)
PHYSICAL SPECIFICATIONS
product height 174 mm
product length 162 mm
product weight 0.88 kg
product width 162 mm
roll angle elevation -45° to +45°
rotation range azimuth 360° continuous rotation
rotation range elevation -45° to +120°
volume Φ: 162 × H: 174 mm
