OPT165BX

OPTIVIA 30x Optical Zoom + 800m Laser Fill Light Dual-Sensor Gimbal Camera

Electro-Optical PODs

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
recording time ≥60 min ≥ Small drone flight time
stabilization accuracy horizontal jitter angle ±0.03°
stabilization accuracy pitch jitter angle ±0.02°
stabilization accuracy roll jitter angle ±0.02°
standard preinstalled components 30x Opt. Zoom Visible Light Camera; Laser Illuminator
Product Revision A
RF SPECIFICATIONS
laser Illuminator angle narrow 2.0° @ 800m range (28m spot)
laser Illuminator angle wide 70° @ 80m range (112m spot)
laser Illuminator operating range 850±10nm (Class 3B)
laser Illuminator range 800m
visible light fov diagonal WIDE 67.8° ± 5% TELE 2.77° ± 5%
visible light fov horizontal WIDE 59.8° ± 5% TELE 2.34° ± 5%
visible light fov vertical WIDE 40.5° ± 5% TELE 1.48° ± 5%
visible light resolution 1920×1080@30fps
ELECTRICAL SPECIFICATIONS
power consumption Dynamic: 10W
power supply DC 12V - 26.2V
INTERFACE SPECIFICATIONS
control method IP, UART,SBUS (PWM optional)
external interface communication interface TTL
external interface video interface Ethernet (RTSP) output , Local TF card 1080p recording
ENVIRONMENTAL SPECIFICATIONS
temperature operational -10°C to +55°C (20% - 80% RH)
temperature storage -20°C to +60°C (20% to 95% RH)

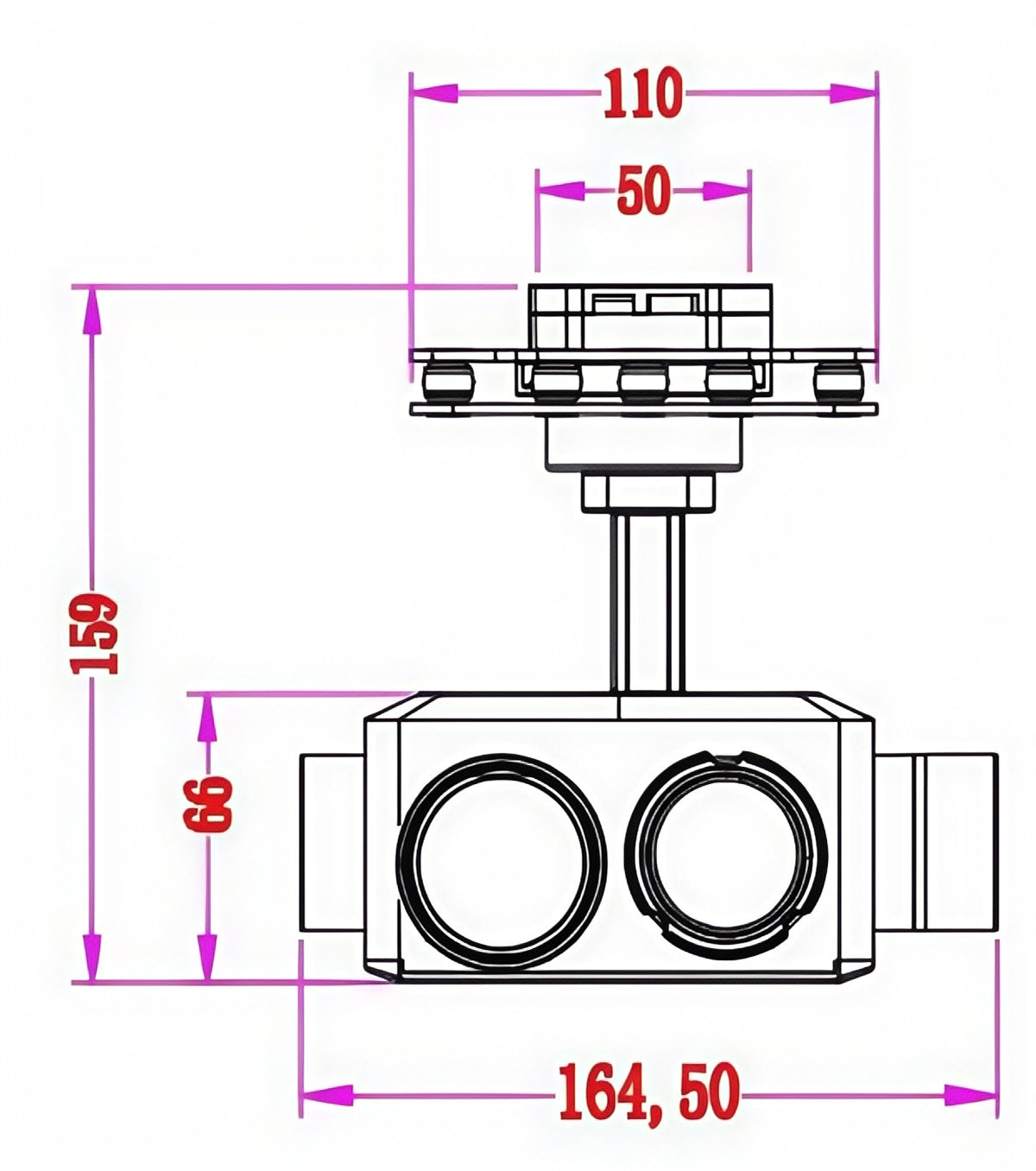

PHYSICAL SPECIFICATIONS
product height 159 mm
product length 164.5 mm
product weight 1.066 kg
product width 110 mm
roll angle elevation -45° to +45°
rotation range azimuth -290° to +290°
rotation range elevation -45 ° to +120°
volume 110 × 164.5 × 159 mm
