| KEY SPECIFICATIONS | |
|---|---|
| recording time | ≥60 min ≥ Small drone flight time |
| stabilization accuracy horizontal jitter angle | ±0.03° |
| stabilization accuracy pitch jitter angle | ±0.02° |
| stabilization accuracy roll jitter angle | ±0.02° |
| standard preinstalled components | 5x Opt. Zoom Visible Light Camera; Laser Rangefinder |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ±1m |
| laser rangefinder operating wavelength | 905nm |
| laser rangefinder ranging range | 5 - 1200m |
| visible light fov diagonal | WIDE 61.1º TELE 12.41º |
| visible light fov horizontal | WIDE 50.12º TELE 10.81º |
| visible light fov vertical | WIDE 38.07º TELE 8.13º |
| visible light resolution | 1920×1080@30fps |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Standby: 5W |
| power supply | DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| control method | IP, UART,SBUS (PWM optional) |
| external interface communication interface | TTL |
| external interface video interface | 1080P RTSP Stream & Local TF Card Storage for Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -10°C to +55°C (20% - 80% RH) |
| temperature storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 106 mm |
| product length | 72 mm |
| product weight | 0.21 kg |
| product width | 72 mm |
| rotation range azimuth | -145° to +145° |
| rotation range elevation | -30° to +100° |

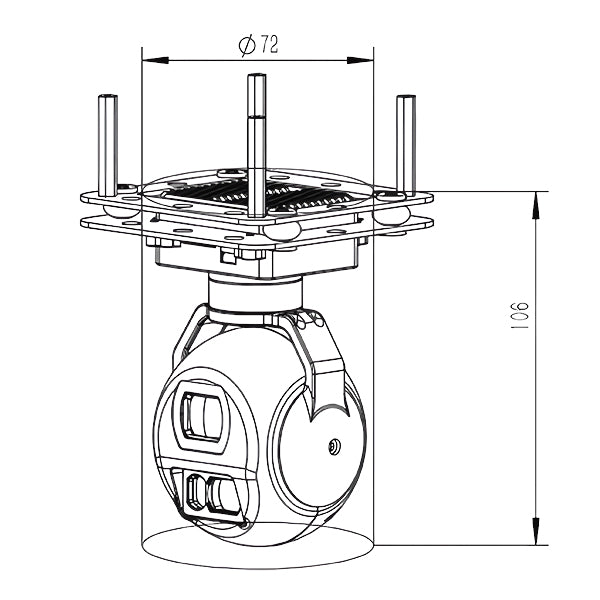

| volume | Φ: 72 × H: 106 mm |
