| RF SPECIFICATIONS | |
|---|---|
| laser rangefinder accuracy | ≤±1m(<300m), ≤±2m(≥300m) |
| laser rangefinder operating wavelength | 905nm±5nm |
| laser rangefinder peak power | 0.00003 MW |
| laser rangefinder ranging range | ≥5m-1200m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Standby≤0.06W(Active-low enable); Avg≤1W |
| power supply | DC 3.3V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -20°C to +50°C |
| temperature storage | -30°C to +50°C |

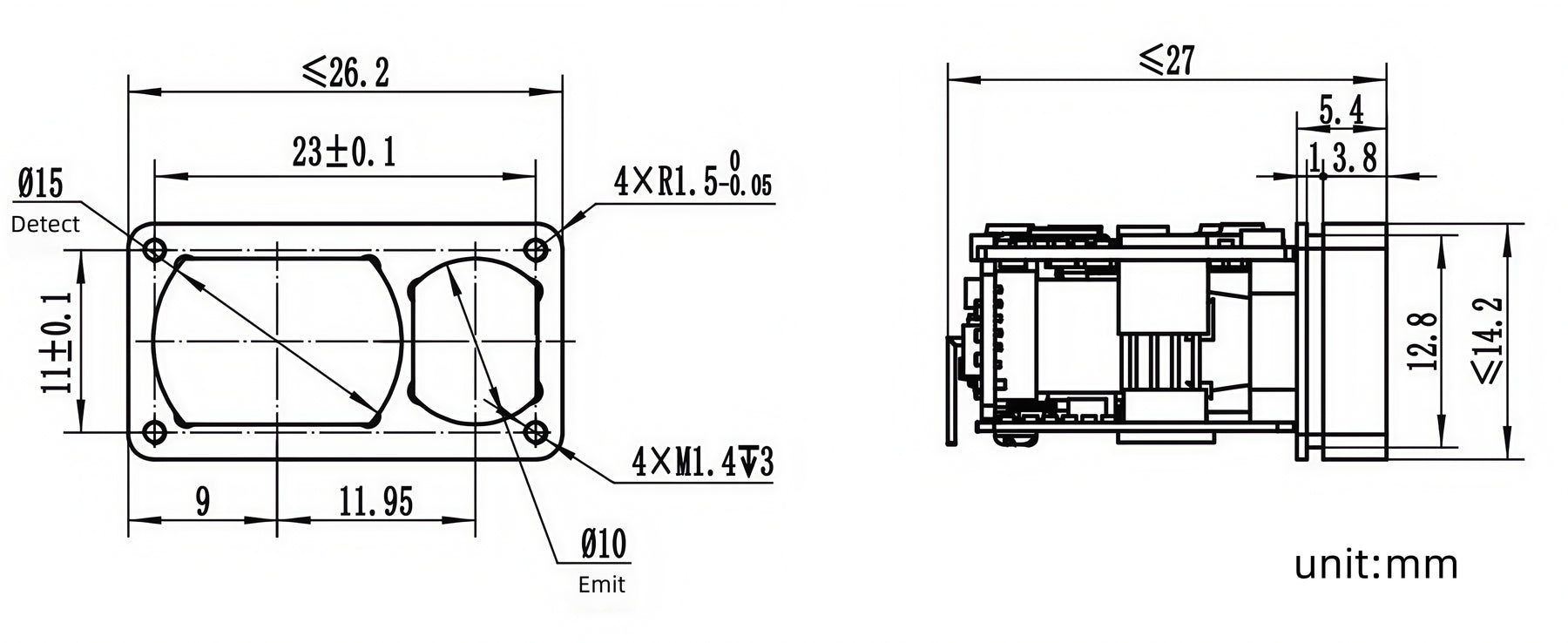

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 14.2 mm |
| product length | 26.5 mm |
| product weight | ≤0.013 kg |
| product width | 26.2 mm |
| volume | ≤26.5 x 26.2 x 14.2 mm |
