OPTIVIA 905 nm Laser Rangefinder LRFA2000AB
OPTIVIA 905 nm Laser Rangefinder LRFA2000AB
OPTIVIA 905 nm Laser Rangefinder LRFA2000AB
OPTIVIA 905 nm Laser Rangefinder LRFA2000AB
OPTIVIA 905 nm Laser Rangefinder LRFA2000AB

LRFA2000AB

OPTIVIA 905 nm Laser Rangefinder LRFA2000AB

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ≤±1(≤400m); ≤±(L×0.3%) (>400m)
laser rangefinder operating wavelength 905nm±5nm
laser rangefinder peak power 0.000065 MW
laser rangefinder ranging range ≥5m-2000m (Large Target)
ELECTRICAL SPECIFICATIONS
power consumption Avg≤1W
power supply DC 3 - 5V
INTERFACE SPECIFICATIONS
external interface communication interface TTL
ENVIRONMENTAL SPECIFICATIONS
temperature operational -20°C to +60°C
temperature storage -30°C to +70°C

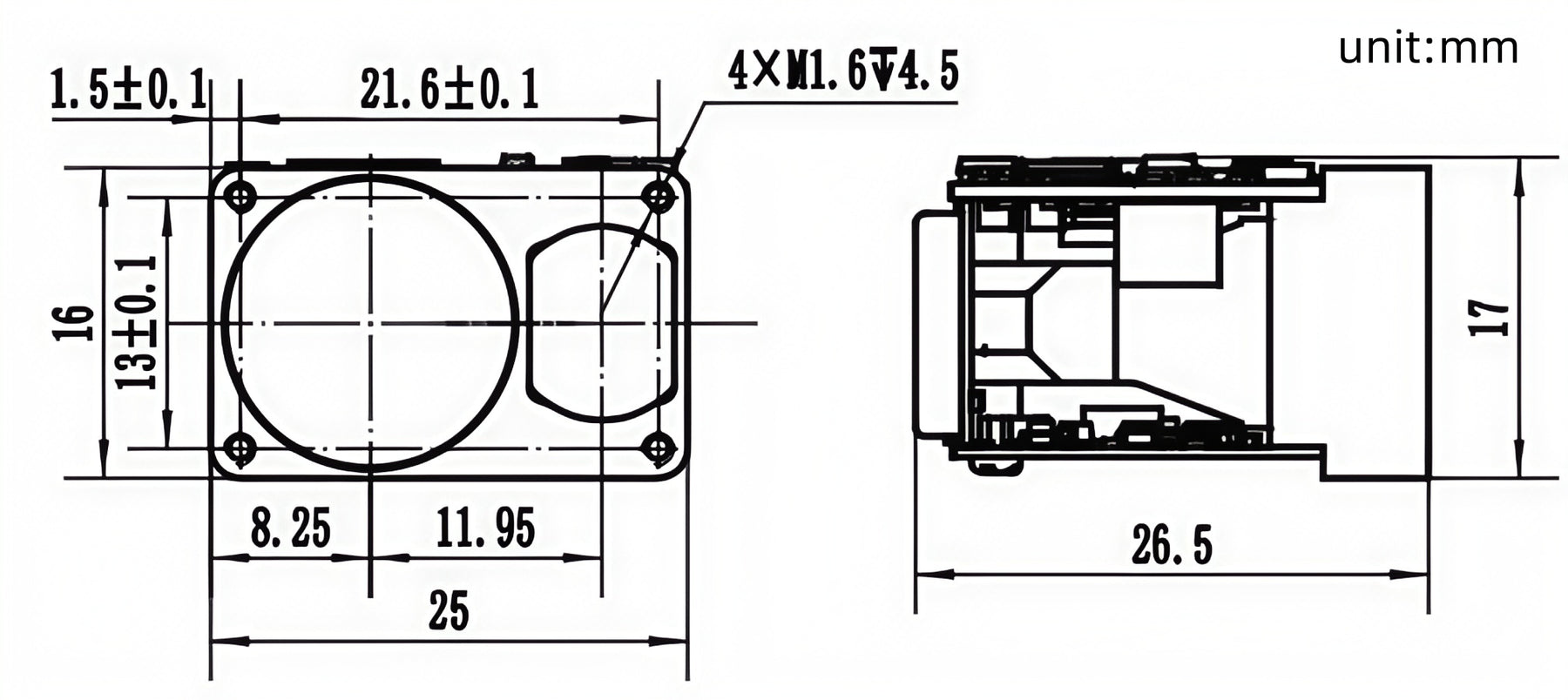

PHYSICAL SPECIFICATIONS
product height 16 mm
product length 26.5 mm
product weight ≤0.013 kg
product width 25 mm
volume ≤26.5 x 25 x16 mm
