LRFA2500CA

OPTIVIA 905 nm Laser Rangefinder LRFA2500CA

Laser Rangefinder

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
laser rangefinder accuracy ±2m/±1m
laser rangefinder operating wavelength 905nm±10nm
laser rangefinder peak power 0.000025 MW
laser rangefinder ranging range ≥15m-2500m (Large Target)
ELECTRICAL SPECIFICATIONS
power consumption Standby≤0.8W; Avg≤0.8W
power supply DC 4.5 - 5.5V
INTERFACE SPECIFICATIONS
external interface communication interface TTL
ENVIRONMENTAL SPECIFICATIONS
temperature operational -20°C to +50°C
temperature storage -30°C to +60°C
PHYSICAL SPECIFICATIONS
product height 29 mm
product length 50.5 mm
product weight ≤0.062 kg
product width 49.5 mm

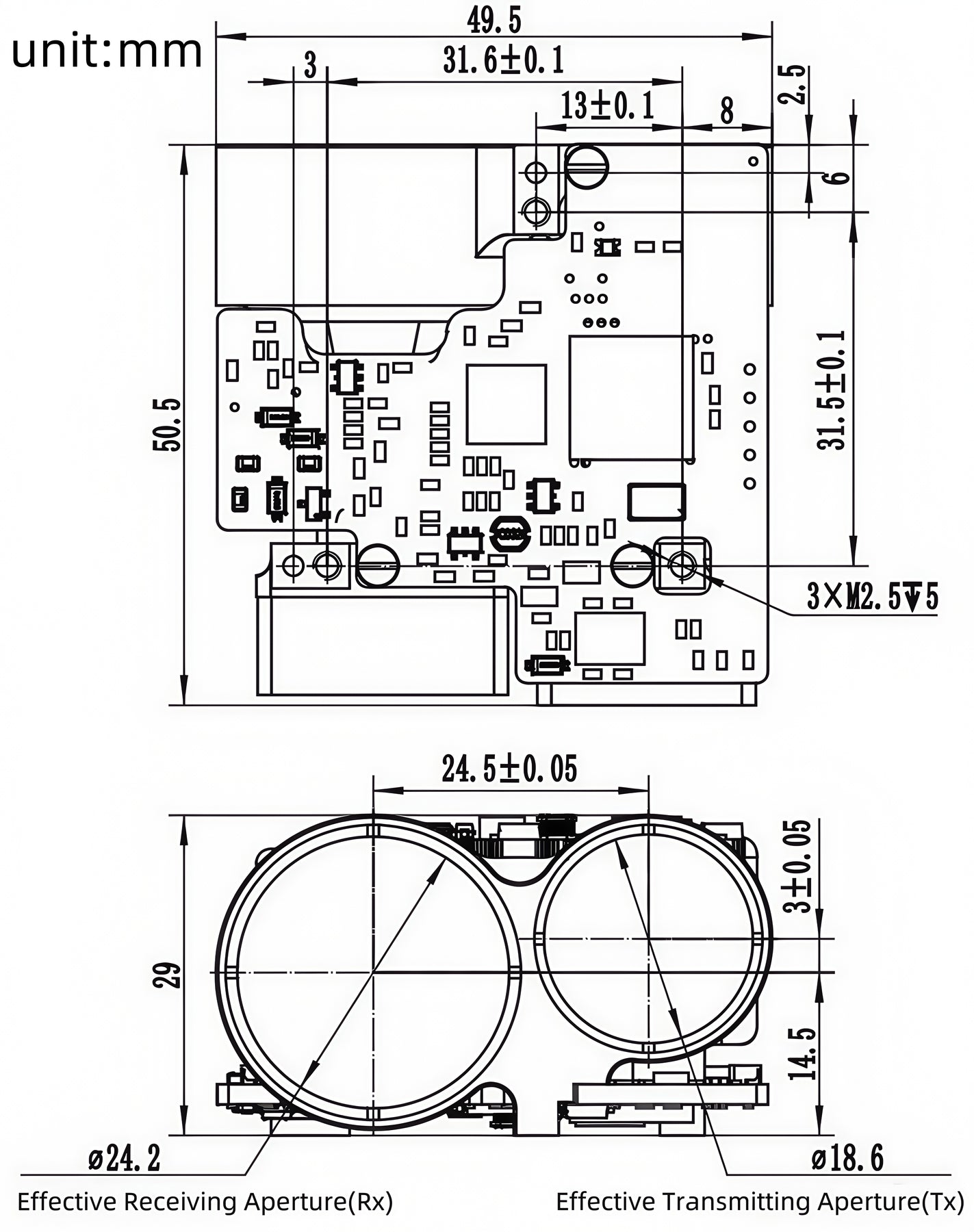

volume ≤50.5 x 49.5 x 29 mm
