OPT260DT

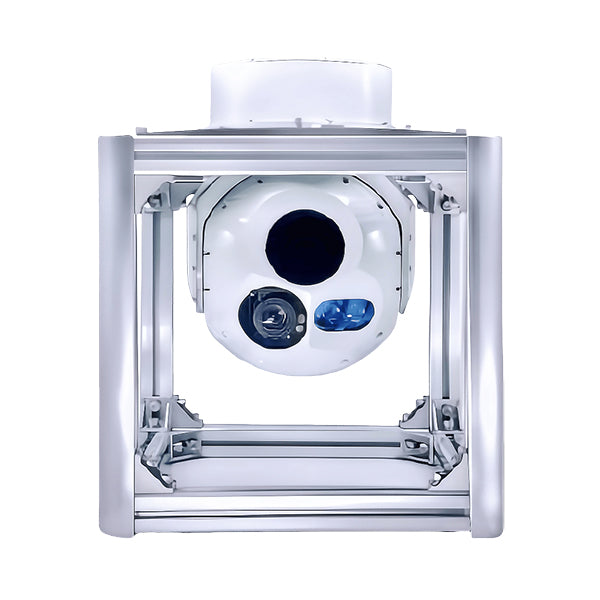

OPTIVIA Electro-Optical Pod Φ260

Electro-Optical PODs

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Optional Upgrade Devices:

LTDD40 or LTDE50 or LTDF50 or LTDA05 or LTDB07 or LTDC09 or LTDD10

KEY SPECIFICATIONS
optional upgrade devices LTDD40 or LTDE50 or LTDF50 or LTDA05 or LTDB07 or LTDC09 or LTDD10
recording time ≥5h
stabilization accuracy 35μrad (RMS)
standard preinstalled components Visible Light Television; Laser Target Designator; Thermal Infrared Camera
Product Revision A
RF SPECIFICATIONS
IR detection range ≥10km
IR detection target-background temperature difference 5K (∆T)
IR detector type Cryogenically Cooled Mid-Wave HgCdTe (MCT) 640×512 Staring Focal Plane Array /MWIR
IR fov 1.84° × 1.48° to 35.49° × 28.39 °
IR identification range ≥7km
IR resolution 640×512
IR temperature color panel status Ironbow, Rainbow, Black Hot/White Hot, Lava, Arctic, Tactical Red
IR temperature measurement range -50°C to +1500°C
IR wavelength range 3 - 5μm
laser target designator accuracy 5m
laser target designator beam divergence 0.35 mrad
laser target designator illumination frequency The User-Defined Encoding (UDE) feature enables
laser target designator illumination range ≥5km
laser target designator ranging range 50 - 9000m
laser target designator wavelength 1064nm
visible light detection detection tracking target size 4m × 6m
visible light detection maximum relative humidity 70%
visible light detection minimum visibility ≥23 km
visible light detection range ≥15km
visible light fov 1.85° x 1.04° to 19.77° x 11.12 °
visible light identification range ≥9km
visible light resolution 1920×1080
ELECTRICAL SPECIFICATIONS
power consumption Avg 200W; Peak 300W
power supply DC 28V
INTERFACE SPECIFICATIONS
control method PWM / S.BUS / Serial TTL / TCP (with Network Output) / UDP (with Network Output)
external interface communication interface 1xRS-422 (Async)
external interface video interface 1×Digital IP, 1×HD-SDI
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -50°C to +70 °C

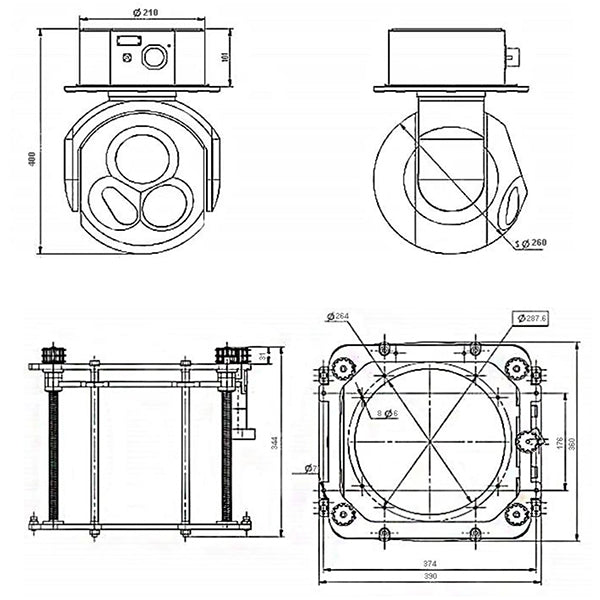

PHYSICAL SPECIFICATIONS
product height 400 mm
product length 260 mm
product weight 18 kg
product width 260 mm
rotation range azimuth 360° continuous rotation
rotation range elevation -110° to +20°
volume Φ: 260 × H: 400 mm
