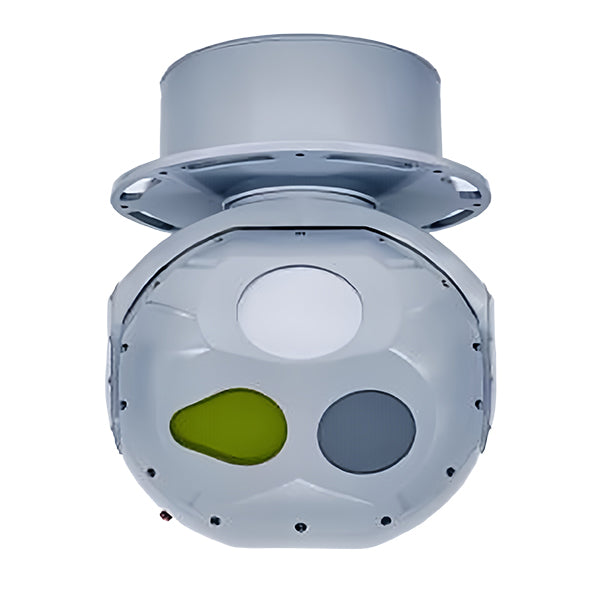

OPTIVIA Electro-Optical Pod Φ280
OPTIVIA Electro-Optical Pod Φ280
OPTIVIA Electro-Optical Pod Φ280
OPTIVIA Electro-Optical Pod Φ280
OPTIVIA Electro-Optical Pod Φ280
OPTIVIA Electro-Optical Pod Φ280

OPT280DL

OPTIVIA Electro-Optical Pod Φ280

Electro-Optical PODs

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
recording time ≥5h
stabilization accuracy 35μrad (RMS)
standard preinstalled components Visible Light Television; Laser Rangefinder; Thermal Infrared Camera
Product Revision A
RF SPECIFICATIONS
IR detection range ≥8km
IR detection target-background temperature difference 5K (∆T)
IR detector type Cryogenically Cooled Mid-Wave HgCdTe (MCT) 640×512 Staring Focal Plane Array /MWIR
IR fov 2.2° x 1.76° to 22° x 17.6°
IR identification range ≥5km
IR resolution 640×512
IR temperature color panel status Ironbow, Rainbow, Black Hot/White Hot, Lava, Arctic, Tactical Red
IR temperature measurement range -50°C to +1500°C
IR wavelength range 3 - 5μm
laser rangefinder accuracy 2m
laser rangefinder operating wavelength 1540nm
laser rangefinder ranging range 50 - 10000m
visible light detection detection tracking target size 4m × 6m
visible light detection maximum relative humidity 70%
visible light detection minimum visibility ≥23 km
visible light detection range ≥9km
visible light fov 2° x 1.12° to 52.5° x 29.4°
visible light identification range ≥5km
visible light resolution 1920×1080
ELECTRICAL SPECIFICATIONS
power consumption Avg 200W; Peak 300W
power supply DC 28V
INTERFACE SPECIFICATIONS
control method PWM / S.BUS / Serial TTL / TCP (with Network Output) / UDP (with Network Output)
external interface communication interface 2xRS-422 (Async)
external interface video interface 1×Digital IP, 1xRS-422 Sync, 1×HD-SDI
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -50°C to +70 °C
PHYSICAL SPECIFICATIONS
product height 405.5 mm
product length 280 mm
product weight 16 kg
product width 280 mm
rotation range azimuth 360° continuous rotation
rotation range elevation -110° to +20°
volume Φ: 280 × H: 405.5 mm
