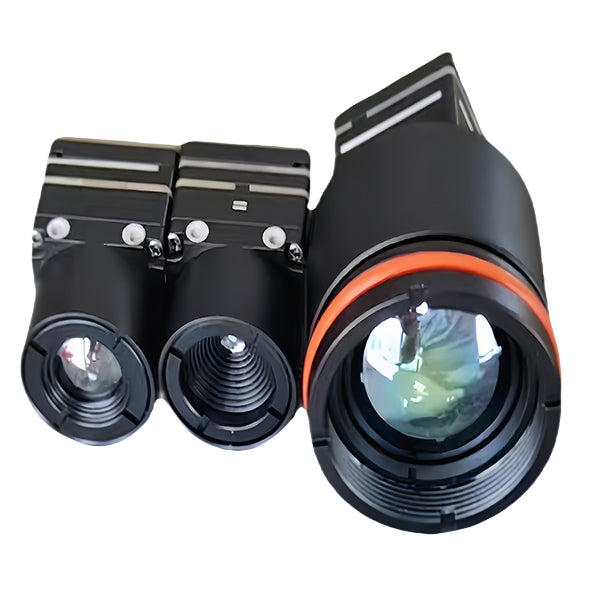

OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module
OPTIVIA Infrared Thermal Module

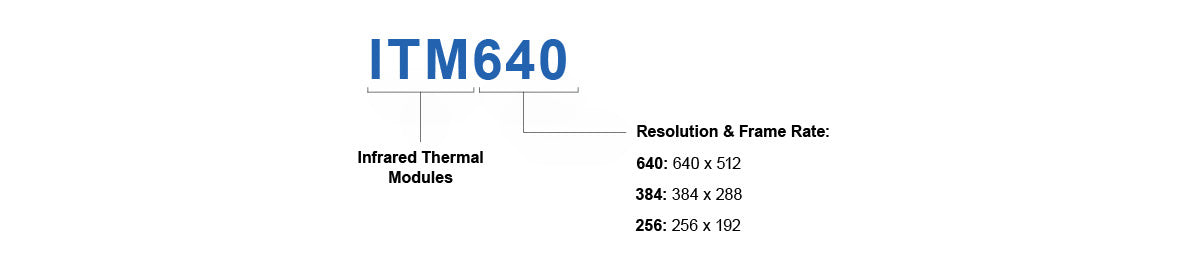

ITM640

OPTIVIA Infrared Thermal Module

Infrared Thermal Modules

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



RF SPECIFICATIONS
brightness&contrast adjustment 0 - 100
color target White Hot/Black Hot/Multiple Pseudo-color Palettes
detection range 1.1km,The above detection, recognition, and identification ranges are estimated against pedestrian targets (1.8×0.5×0.3m) per Johnson's Criteria.
detector Vanadium Oxide (VOx) Uncooled Infrared Focal Plane Array Detector
detector frame rate 30/60Hz
digital video DVP/BT656/USB2.0/MIPI
electronic magnification 1.0–8.0×Continuous Zoom (0.1 Step Size)
field of view 48°×38.4°
focal length 9.1mm
f number 1.0
identification range 0.17km
IFOV 1.3mrad
image mirroring Vertical/Horizontal/Diagonal Flip
lens depth of field (DoF) 1.73m - ∞
non-uniformity correction NUC Shutter Calibration/Shutterless Algorithm Calibration
pixel size 12μm
recognition range 0.25km
resolution and frame rate 640×512
thermal sensitivity NETD ≤40mK@25℃,F#1.0,25Hz
thermal time constant <12ms
wavelength 8μm - 14μm
ELECTRICAL SPECIFICATIONS
power consumption <0.7W
power supply DC 5V
INTERFACE SPECIFICATIONS
external interface communication interface UART/I2C/USB2.0
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +80°C
temperature storage -55°C to +85°C
PHYSICAL SPECIFICATIONS
product height 10.3 mm
product length 21 mm
product weight <0.0086 kg
product width 21 mm
volume 21 × 21 × 10.3 mm
weight (lens&flange) 10.5g±5%
