OPT072AR

OPTIVIA Miniaturized EO/IR Fixed-Focus Camera: 1200m LRF + Dual Video Streams

Electro-Optical PODs

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
recording time ≥60 min ≥ Small drone flight time
stabilization accuracy horizontal jitter angle ±0.03°
stabilization accuracy pitch jitter angle ±0.02°
stabilization accuracy roll jitter angle ±0.02°
standard preinstalled components 4K Zoom Camera; 1080P Zoom Camera; Laser Rangefinder
Product Revision A
RF SPECIFICATIONS
laser rangefinder accuracy ±1m
laser rangefinder operating wavelength 905nm
laser rangefinder ranging range 5 - 1200m
visible light fov 4K: 25 mm lens FOV: 10.5° x 7.8°; 1080P: 6 mm lens FOV: 60° x 43°
visible light resolution 1080P@30fps /4K@30fps
ELECTRICAL SPECIFICATIONS
power consumption Dynamic: 6W
power supply DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V
INTERFACE SPECIFICATIONS
control method IP, UART,SBUS (PWM optional)
external interface communication interface TTL
external interface video interface Local TF Card Storage, H264 4K/1080P, Video Streams
ENVIRONMENTAL SPECIFICATIONS
temperature operational -10°C to +45°C (20% - 80%)
temperature storage -20°C to +60°C (20% to 95% RH)
PHYSICAL SPECIFICATIONS
product height 105 mm
product length 72 mm
product weight 0.22 kg
product width 72 mm
rotation range azimuth -140° to +140°
rotation range elevation -30° to +100°

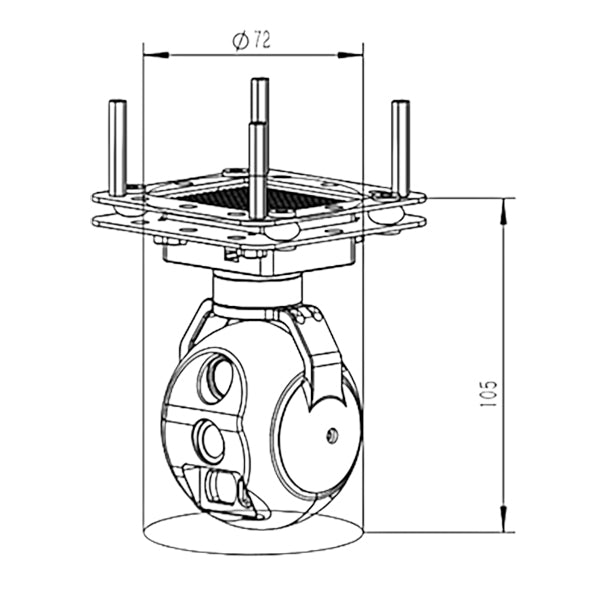

volume Φ: 72 × H: 105 mm
