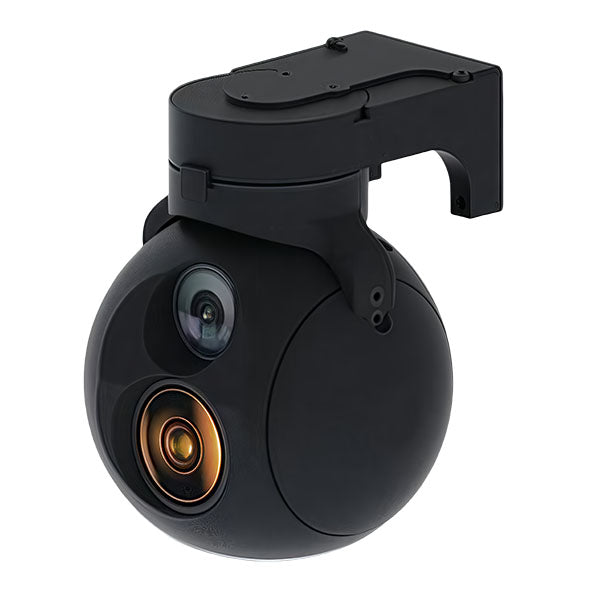

OPTIVIA Tactical-Grade Micro Pod - Infrared-Capable Electro-Optical POD
OPTIVIA Tactical-Grade Micro Pod - Infrared-Capable Electro-Optical POD
OPTIVIA Tactical-Grade Micro Pod - Infrared-Capable Electro-Optical POD

OPT076DX

OPTIVIA Tactical-Grade Micro Pod - Infrared-Capable Electro-Optical POD

Electro-Optical PODs

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
recording time 4h
stabilization accuracy 0.1mrad (1°/2Hz) (1σ)
standard preinstalled components 1080P Zoom Camera; Thermal Infrared Camera
Product Revision A
RF SPECIFICATIONS
IR detection range ≥3km
IR detection target-background temperature difference 5K (∆T)
IR detector type (VOx) Uncooled infrared microbolometer camera
IR focal length 18mm
IR fov 18mm lens FOV: 24° ×18.1°
IR identification range ≥1km
IR resolution 640×512
IR temperature color panel status Ironbow, Rainbow, Black Hot/White Hot, Lava,Arctic, High Contrast Mono
IR temperature measurement range -20°C to +550°C
IR thermal sensitivity netd 50mk@F1.0
IR wavelength range 8 - 12μm
visible light fov 38.3° × 22.1° (8 mm)
visible light resolution 1920×1080
ELECTRICAL SPECIFICATIONS
power consumption Avg 10W; Peak 20W
power supply DC 12 - 28V
INTERFACE SPECIFICATIONS
external interface communication interface RS232
external interface video interface Network
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C
temperature storage -50°C to +70 °C

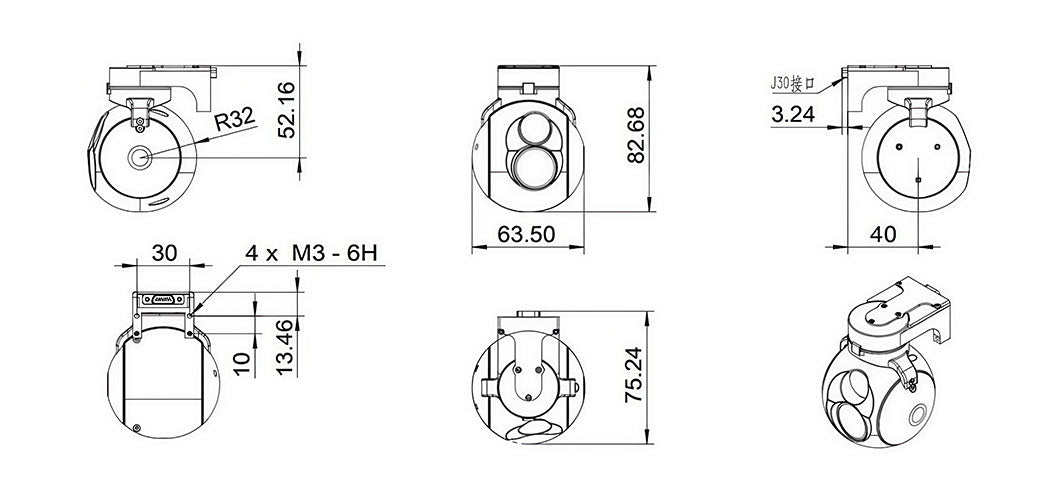

PHYSICAL SPECIFICATIONS
product height 83 mm
product length 76 mm
product weight 0.28 kg
product width 63 mm
rotation range azimuth -110° to +110°
rotation range elevation -100° to +40°
volume 63 × 76 × 83 mm
