| KEY SPECIFICATIONS | |
|---|---|
| stabilization accuracy | 0.1mrad (1°/2Hz) (1σ) |
| standard preinstalled components | Visible Light Television Wide Field of View (WFOV); Visible Light Television Narrow Field of View (NFOV) |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| visible light fov | 42.2 ° x 24.5° (WFOV, FL7.2 mm); 12.71° x 7.1° (NFOV, FL25 mm) |
| visible light resolution | 1920×1080@60fps |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power consumption | Avg 10W; Peak 20W |
| power supply | DC 12 - 28V |
| INTERFACE SPECIFICATIONS | |
|---|---|
| external interface communication interface | RS232 |
| external interface video interface | Network |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70 °C |

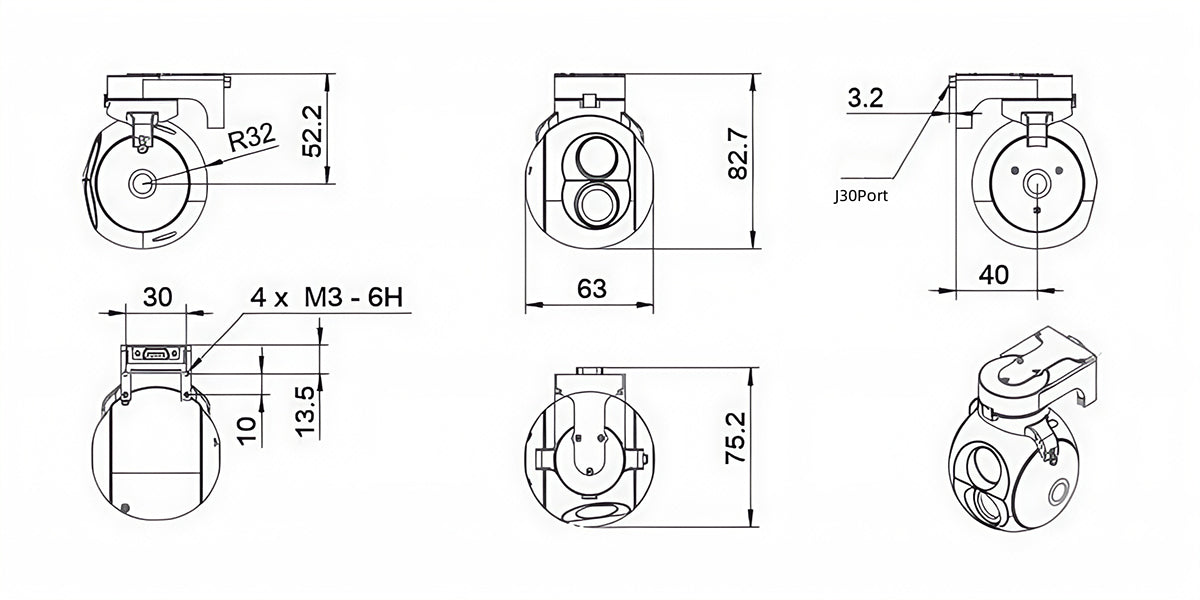

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 83 mm |
| product length | 63 mm |
| product weight | 0.24 kg |
| product width | 76 mm |
| rotation range azimuth | -110° to +110° |
| rotation range elevation | -100° to +40° |
| volume | 63 × 76 × 83 mm |
