OPT148BX

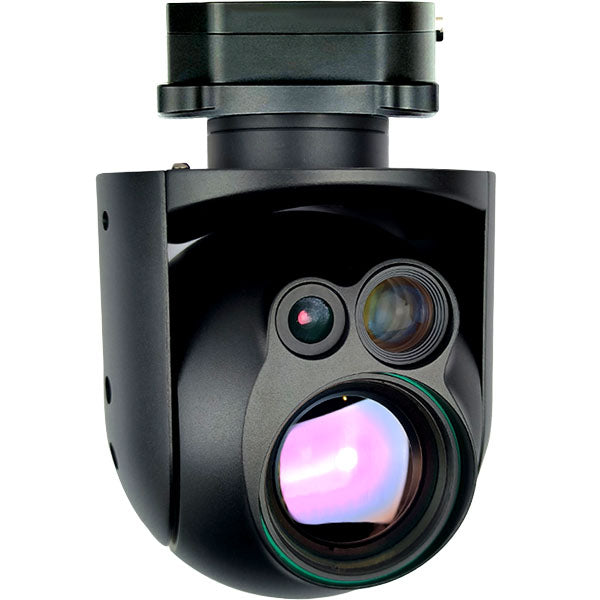

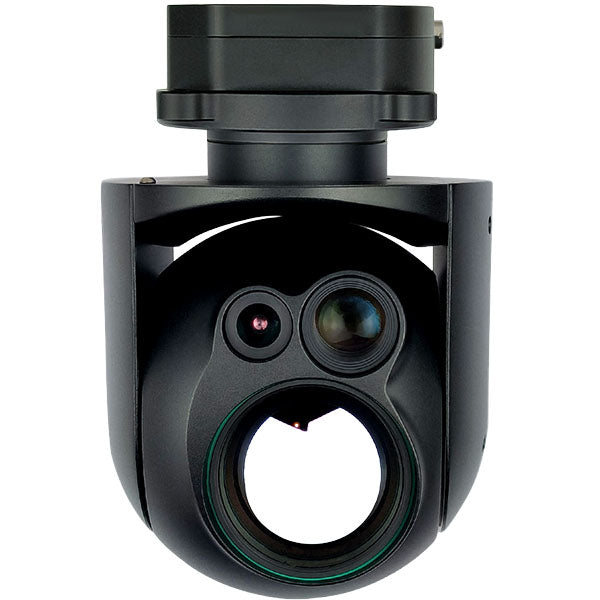

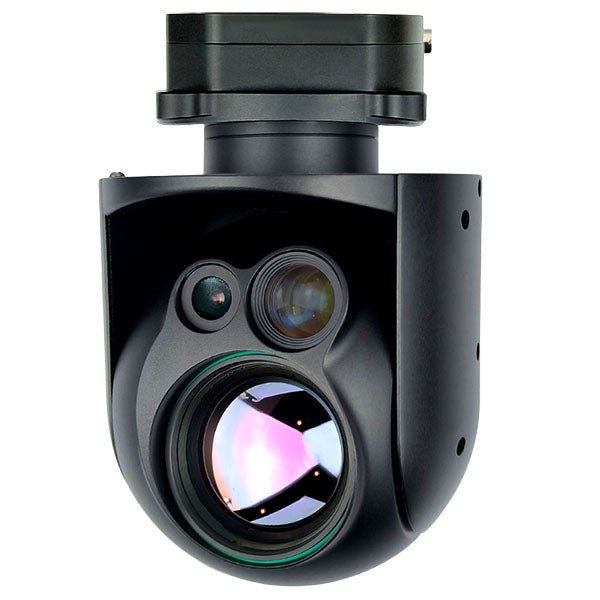

OPTIVIA Three-light And Two-axis Stabilization Small Pod

Electro-Optical PODs

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
recording time ≥60 min ≥ Small drone flight time
stabilization accuracy horizontal jitter angle ±0.03°
stabilization accuracy pitch jitter angle ±0.02°
stabilization accuracy roll jitter angle ±0.02°
standard preinstalled components 4K Zoom Camera; 1080P Zoom Camera; Thermal Infrared Camera
Product Revision A
RF SPECIFICATIONS
IR detection range ≥5km
IR detector type (VOx) Uncooled infrared microbolometer camera
IR focal length 45mm
IR fov 45mm lens FOV: 9.8° × 7.8°
IR identification range ≥2.5km
IR resolution 640×512
IR temperature color panel status Black Hot, White Hot, Pseudo-color (≥8 types)
IR temperature measurement range -20°C to 150°C, expandable to 100°C to 550°C
IR thermal sensitivity netd 50mk@F1.0
IR wavelength range 8 - 14μm
visible light detection detection tracking target size 4m × 6m
visible light detection maximum relative humidity 70%
visible light detection minimum visibility ≥23 km
visible light detection range ≥5km
visible light fov 4K CameraFOV: 10.1°×7.6° (35 mm); 1080P CameraFOV: 60°×43° (6 mm)
visible light identification range ≥2km
visible light minimum identifiable target size 32×32 pixels
visible light resolution 4K, 1080P
ELECTRICAL SPECIFICATIONS
power consumption Dynamic 6.4W
power supply DC 12V - 26.2V
INTERFACE SPECIFICATIONS
control method Network Control:Ground Station can be controlled by mouse, touchscreen, and supports scroll wheel operation; Control Protocols Supported: Supports Network IP, Serial(UART) , SBUS, PWM
external interface communication interface TTL
external interface video interface Network H.264 Stream Output
ENVIRONMENTAL SPECIFICATIONS
temperature operational -10°C to +55°C (20% - 80% RH)
temperature storage -20°C to +60°C (20% to 95% RH)
PHYSICAL SPECIFICATIONS
product height 136 mm
product length 148 mm
product weight 0.51 kg
product width 148 mm
rotation range azimuth Full 360° unlimited azimuth rotation
rotation range elevation -20° to +180°
volume Φ: 148 x H: 136 mm
