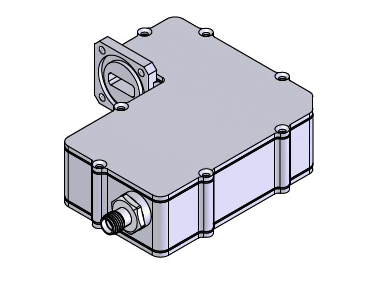

LNB-100218

Quad-Band Ka-Band PLL LNB

$3,600.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.70 - 18.25 GHz
input frequency band 2 18.30 - 19.05 GHz
input frequency band 3 18.80 - 19.55 GHz
input frequency band 4 19.50 - 20.25 GHz
LO frequency 1 16.75 GHz
LO frequency 2 17.35 GHz
LO frequency 3 17.85 GHz
LO frequency 4 18.55 GHz
LO stability ±10 kHz
LO type PLL
noise figure max 1.5 dB
noise figure typ 1.3 dB
number of onboard LOs Quad-Band
output frequency band 1 950 - 1700 MHz
output frequency band 2 950 - 1700 MHz
output frequency band 3 950 - 1700 MHz
output frequency band 4 950 - 1700 MHz
tone frequency 22 kHz ± 4 kHz
Product Revision A
RF SPECIFICATIONS
control signal band 1 13V / No Tone
control signal band 2 13V / 22kHz Tone
control signal band 3 18V / No Tone
control signal band 4 18V / 22kHz Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 5 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
phase noise 1kHz offset max 73 dBc/Hz
phase noise 10kHz offset max 83 dBc/Hz
phase noise 100kHz offset max 93 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector SMA-Connector
RF input connector WR-42 Waveguide Grooved
ENVIRONMENTAL SPECIFICATIONS
altitude sea level to 15000 ft
humidity 0 - 100%
IP rating IP 66
temperature operational -20°C to +55°C
temperature storage -45 to +80˚C

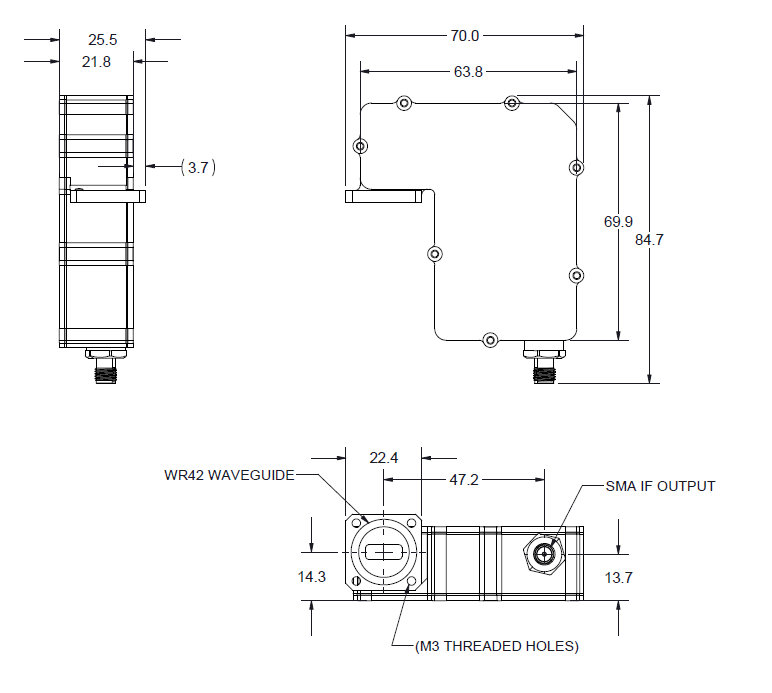

PHYSICAL SPECIFICATIONS
product height 26 mm
product length 70 mm
product weight 0.2 kg
product width 64 mm
