Name: RF High Power Amplifier Systems 18 - 26.5 GHz
Brand: Norsat International Inc.
SKU: HPASC058
Price: 35302.22 USD
Availability: InStock

RF High Power Amplifier Systems 18 - 26.5 GHz

HPASC058

RF High Power Amplifier Systems 18 - 26.5 GHz

RF High Power Amplifier

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51697472242031,"title":"43 dBm","option1":"43 dBm","option2":null,"option3":null,"sku":"HPASC058","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 18 - 26.5 GHz - 43 dBm","public_title":"43 dBm","options":["43 dBm"],"price":3530222,"weight":23000,"compare_at_price":3530222,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472274799,"title":"47 dBm","option1":"47 dBm","option2":null,"option3":null,"sku":"HPASC059","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 18 - 26.5 GHz - 47 dBm","public_title":"47 dBm","options":["47 dBm"],"price":7470667,"weight":28000,"compare_at_price":7470667,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
gain min	43 dB
input frequency band 1	18 - 26.5 GHz
number of bands	Single-Band
output Psat min	43 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
harmonics	-20 dBc typ.
input VSWR max	2.0 : 1
RF input power	10 dBm
spurious	-60 dBc typ.

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
impedance	50 Ohms
power consumption	200Watts
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
supply bias voltage	260V AC

INTERFACE SPECIFICATIONS
AC power interface	Air switch
input connector	2.92 Female
output connector	2.92 Female

ENVIRONMENTAL SPECIFICATIONS
altitude	50000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +60°C
temperature storage	-45°C to +65°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 2U mm
product weight	20 kg

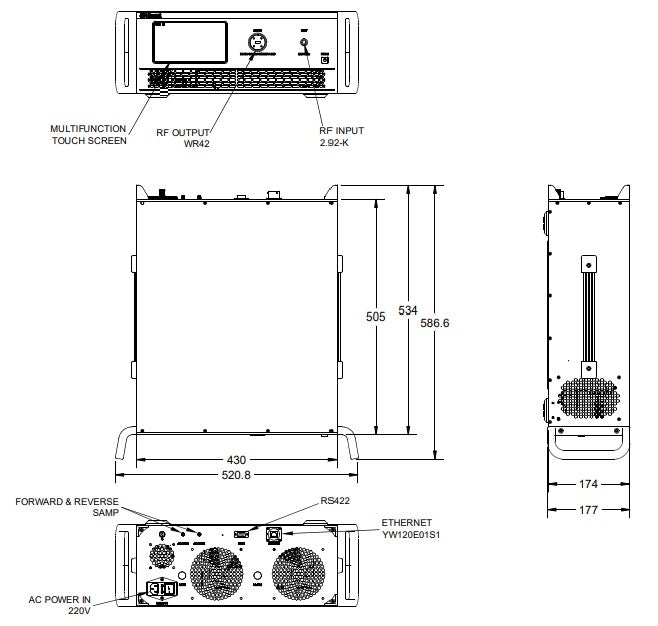

KEY SPECIFICATIONS
gain min	47 dB
input frequency band 1	18 - 26.5 GHz
number of bands	Single-Band
output Psat min	47 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness max	±3 dB
harmonics	-15 dBc max.
input VSWR max	2.0 : 1
RF input power	10 dBm
saturated power flatness	±1.5 dB max.
spurious	-60 dBc max.

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. ALC automatic level control
ESD sensitivity	Class 0, passed 150V
impedance	50 Ohms
power requirements	220V AC
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
remote control	Ethernet RJ-45 TCP/IP
supply bias voltage	260V AC

INTERFACE SPECIFICATIONS
AC power interface	Air switch
input connector	2.92 Female
output connector	WR-42

ENVIRONMENTAL SPECIFICATIONS
altitude	10,000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +40°C
temperature storage	-30°C to +50°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 3U mm
product weight	35 kg

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517799000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	3A001.b.4.b.4
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	23 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
