Name: RF High Power Amplifier Systems 18 - 40 GHz
Brand: Norsat International Inc.
SKU: HPASC060
Price: 24160.00 USD
Availability: InStock

RF High Power Amplifier Systems 18 - 40 GHz

HPASC060

RF High Power Amplifier Systems 18 - 40 GHz

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":51697472307567,"title":"40 dBm","option1":"40 dBm","option2":null,"option3":null,"sku":"HPASC060","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 18 - 40 GHz - 40 dBm","public_title":"40 dBm","options":["40 dBm"],"price":2416000,"weight":17000,"compare_at_price":2415111,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472340335,"title":"43 dBm","option1":"43 dBm","option2":null,"option3":null,"sku":"HPASC061","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 18 - 40 GHz - 43 dBm","public_title":"43 dBm","options":["43 dBm"],"price":3510000,"weight":33000,"compare_at_price":3510000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472373103,"title":"47 dBm","option1":"47 dBm","option2":null,"option3":null,"sku":"HPASC062","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 18 - 40 GHz - 47 dBm","public_title":"47 dBm","options":["47 dBm"],"price":21462000,"weight":38000,"compare_at_price":21461556,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51697472405871,"title":"50 dBm","option1":"50 dBm","option2":null,"option3":null,"sku":"HPASC063","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RF High Power Amplifier Systems 18 - 40 GHz - 50 dBm","public_title":"50 dBm","options":["50 dBm"],"price":27240000,"weight":33000,"compare_at_price":27239333,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
gain min	40 dB
input frequency band 1	18 - 40 GHz
minimum output power Psat	40 dBm
number of bands	Single-Band
output Psat min	40 dBm
output Psat typ	41 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness typ	±5 dB
harmonics	-15 dBc max.
input VSWR max	2.0 : 1
RF input power	5 dBm
saturated power flatness	±1.5dB max.
spurious	-50 dBc max.

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. RF on/off, 3. Gain adjustment
impedance	50 Ohms
power requirements	220 V AC typ.
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422
communication interfaces	DB9
input connector	2.92mm Female
output connector	2.92mm Female

ENVIRONMENTAL SPECIFICATIONS
altitude	10000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +50°C
temperature storage	-30°C to +60°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 2U mm
product weight	≤ 25 kg

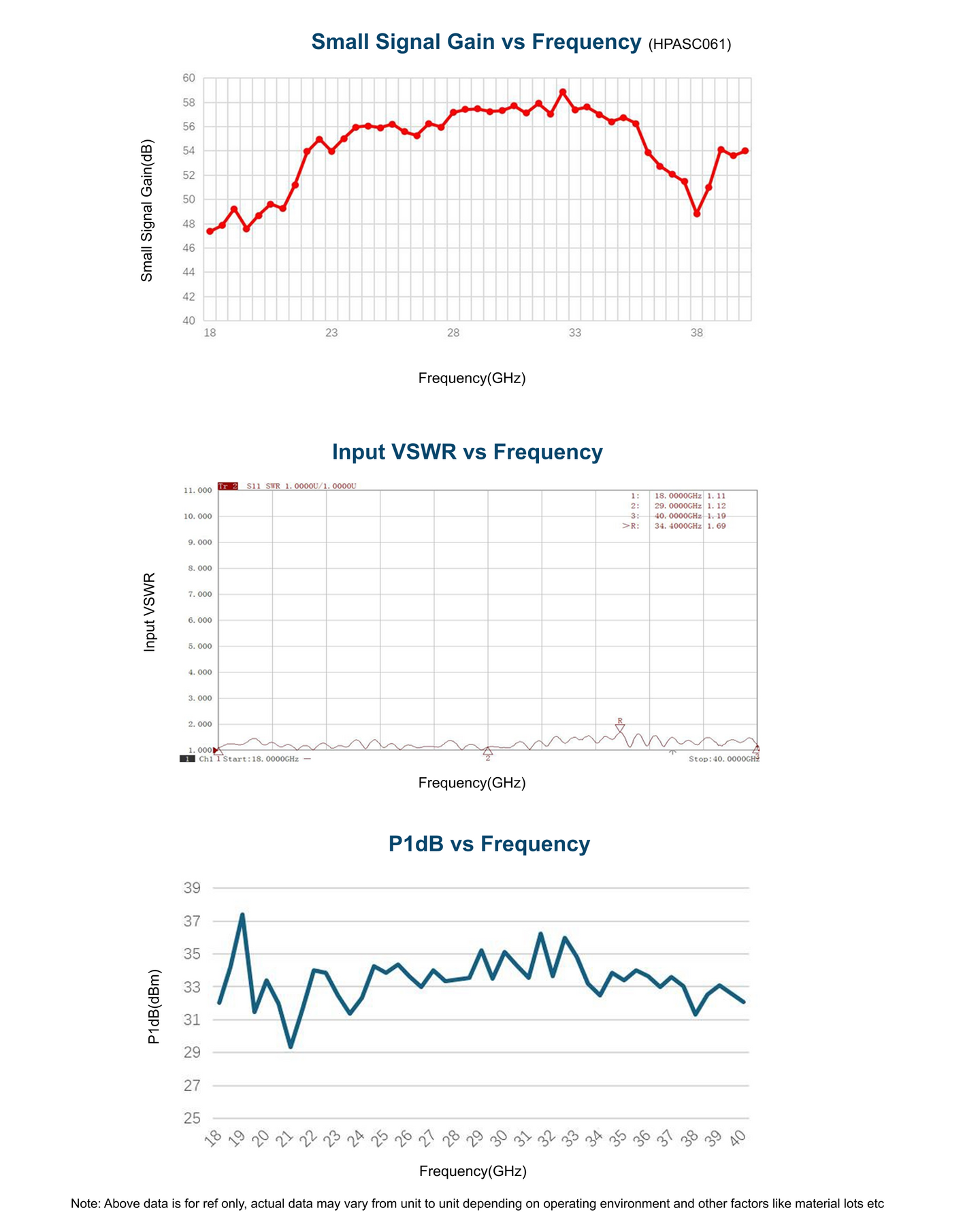

KEY SPECIFICATIONS
gain min	43 dB
input frequency band 1	18 - 40 GHz
minimum output power Psat	43 dBm
number of bands	Single-Band
output Psat min	43 dBm
output Psat typ	44 dBm
transmission mode	Continuous Wave/Pulse Wave
Product Revision	B

RF SPECIFICATIONS
ALC precision	±0.5dB max.
ESD sensitivity(HBm)	Class 0, passed 150V
fall time	50ns typ
gain flatness typ	±5 dB

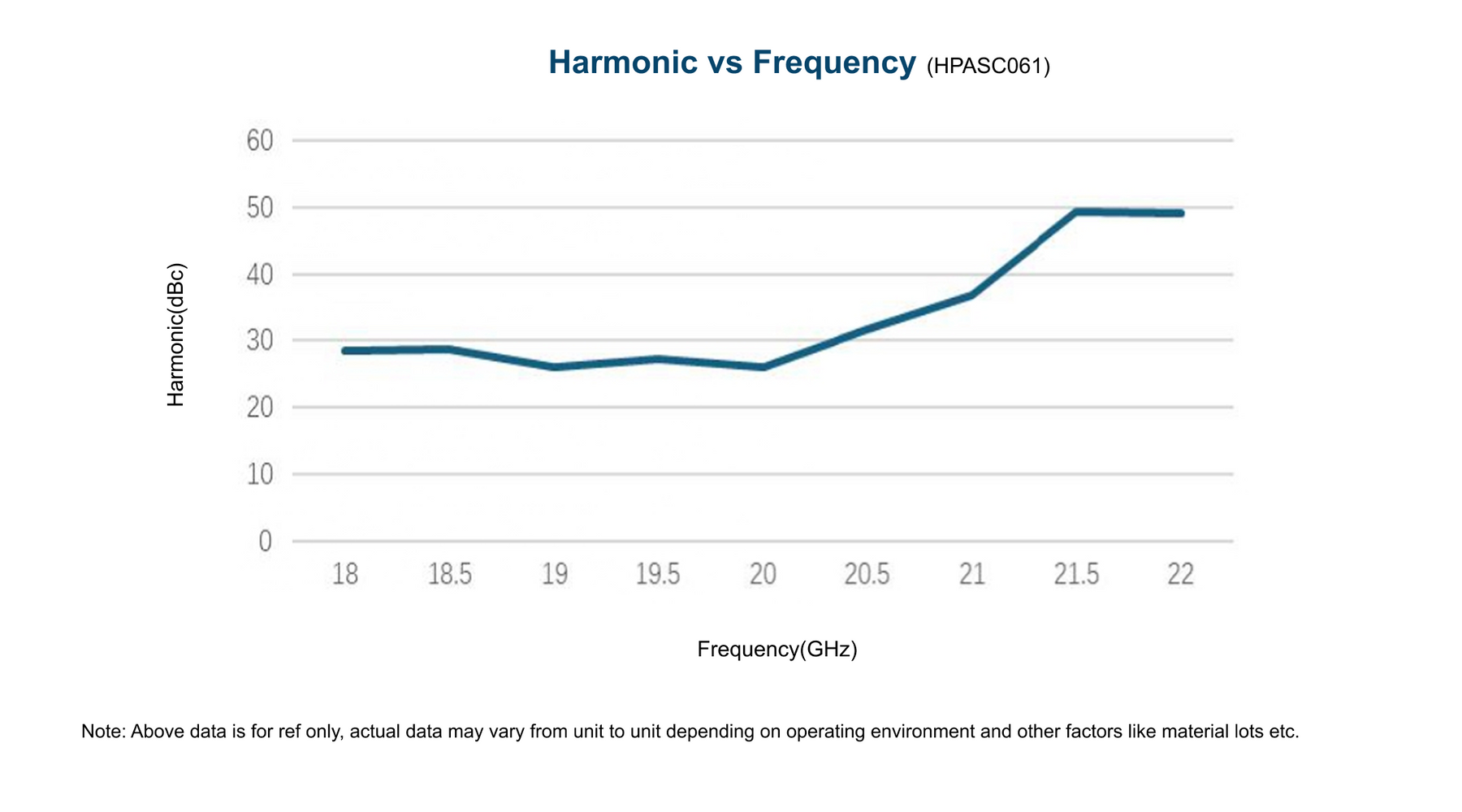

harmonics	-15 dBc max.@Pout=43dBm
input VSWR max	2.0 : 1
RF input power	10 dBm
rise time	50ns typ

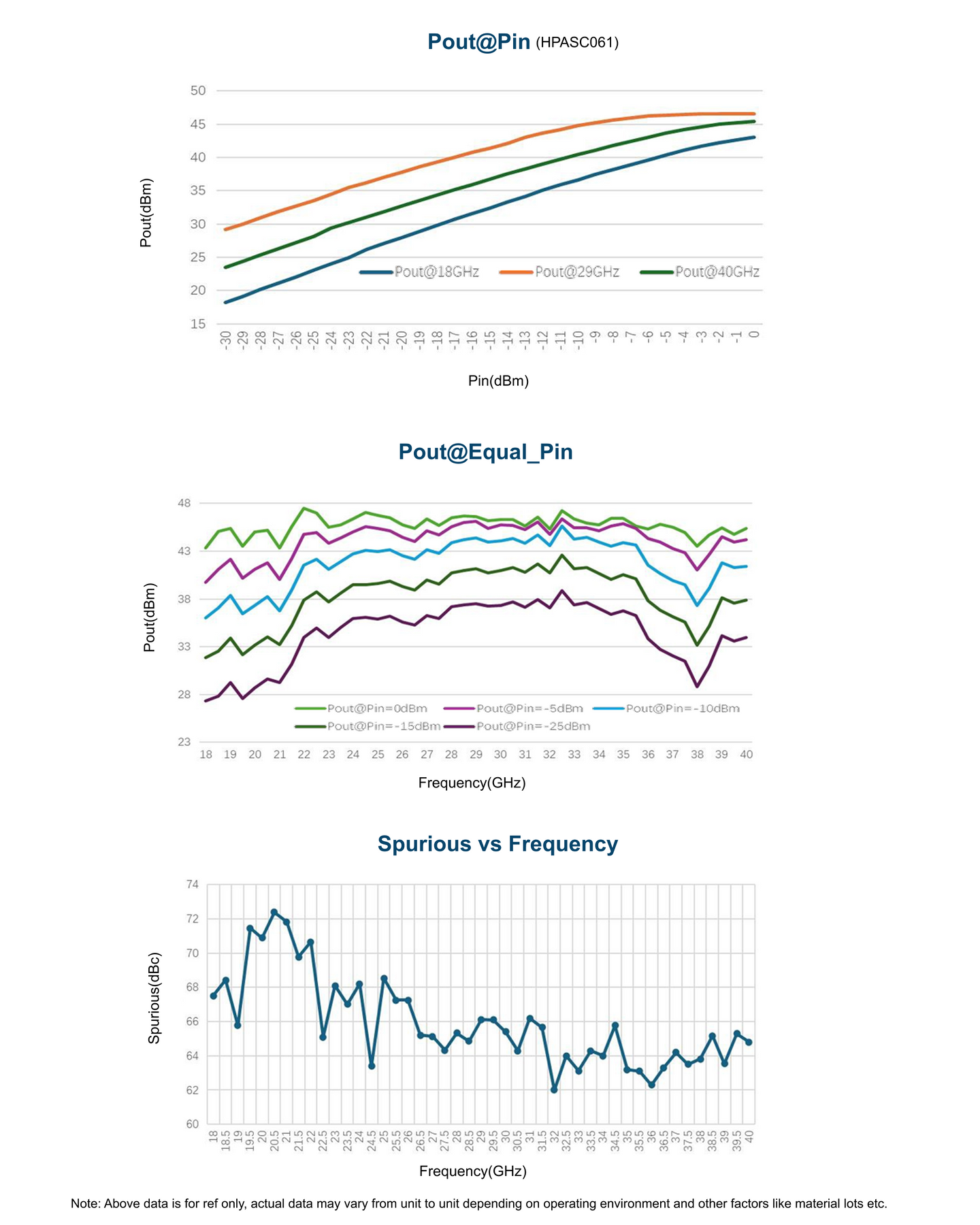

spurious	-50 dBc max.@Pout=43dBm

ELECTRICAL SPECIFICATIONS
control functions	Power setting On/Off
display functions	1. Output Power; 2. Reflect Power; 3. Fault message
impedance	50 Ohms
power consumption	600Watts@max.
power requirements	220 V AC typ.
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/Ethernet
communication interfaces	DB9/RJ45
input connector	2.92mm Female
output connector	2.92mm Female
remote control	RS422/Ethernet

ENVIRONMENTAL SPECIFICATIONS
altitude	10000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +50°C
temperature storage	-30°C to +60°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong

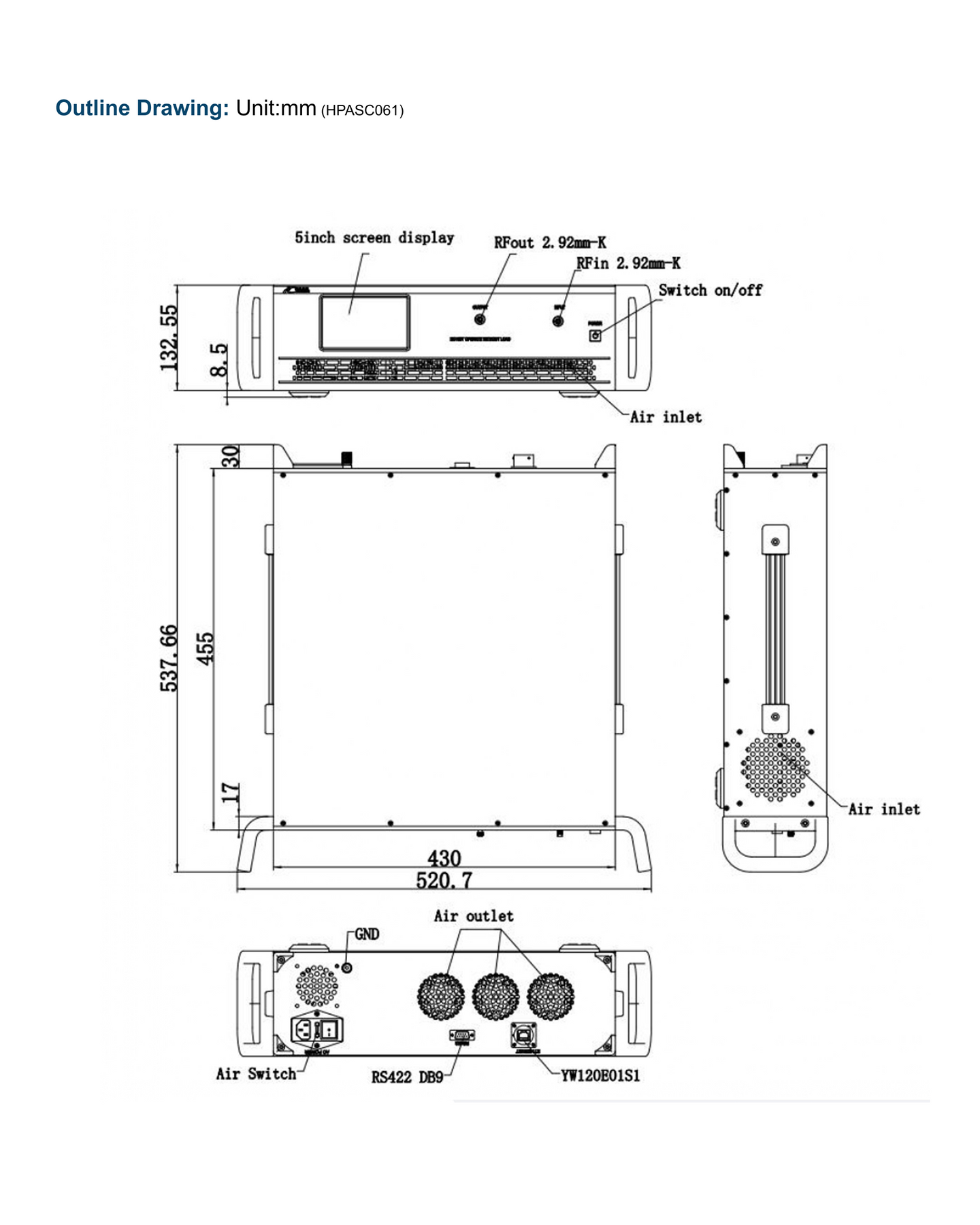

product dimensions	19 Inch 3U mm
product weight	≤ 35 kg

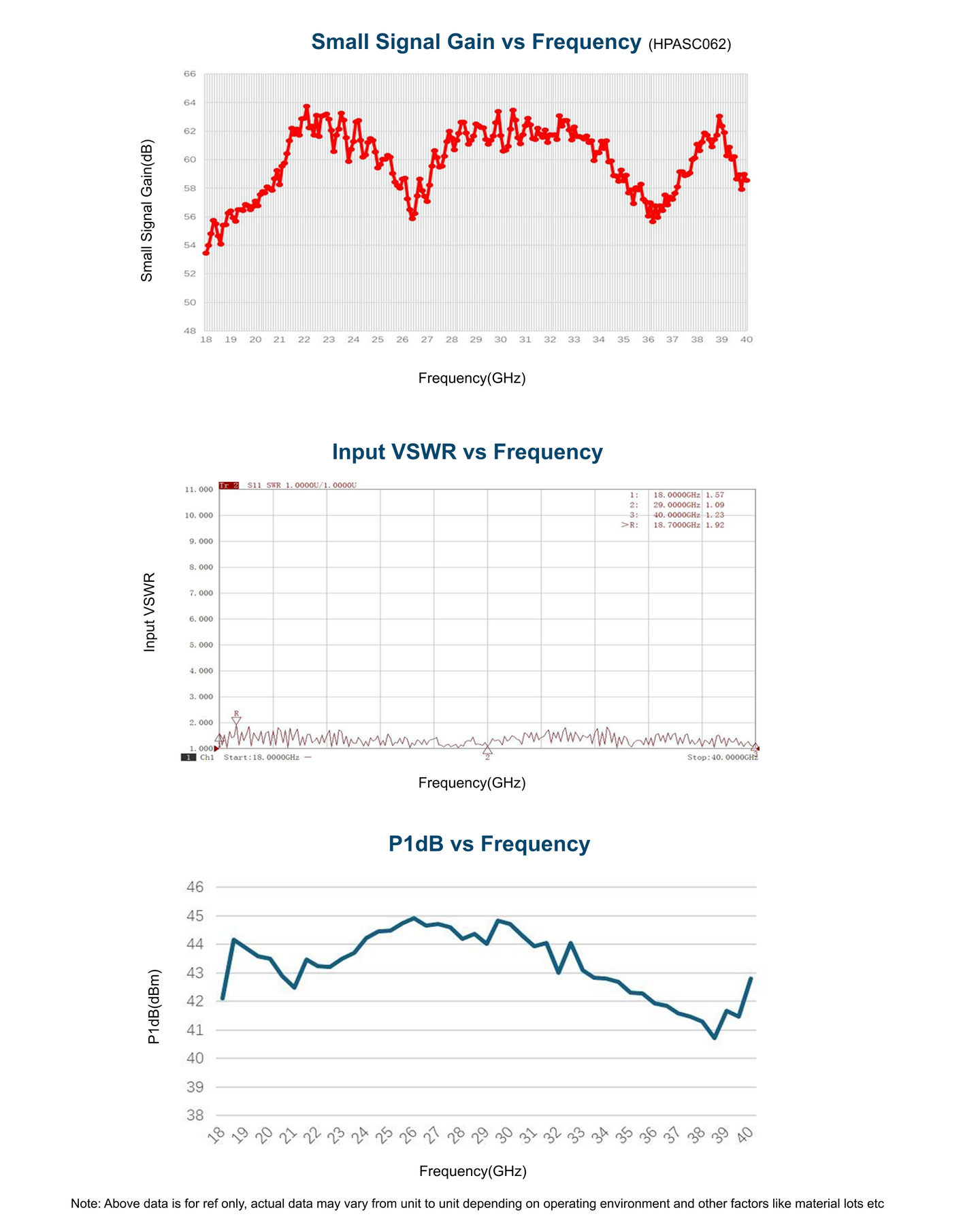

KEY SPECIFICATIONS
gain min	47 dB
input frequency band 1	18 - 40 GHz
minimum output power Psat	47 dBm
number of bands	Single-Band
output Psat min	47 dBm
output Psat typ	48 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ALC precision	±0.5dB max.
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness typ	±5 dB
harmonics	-15 dBc max.
input VSWR max	2.0 : 1
RF input power	5 dBm

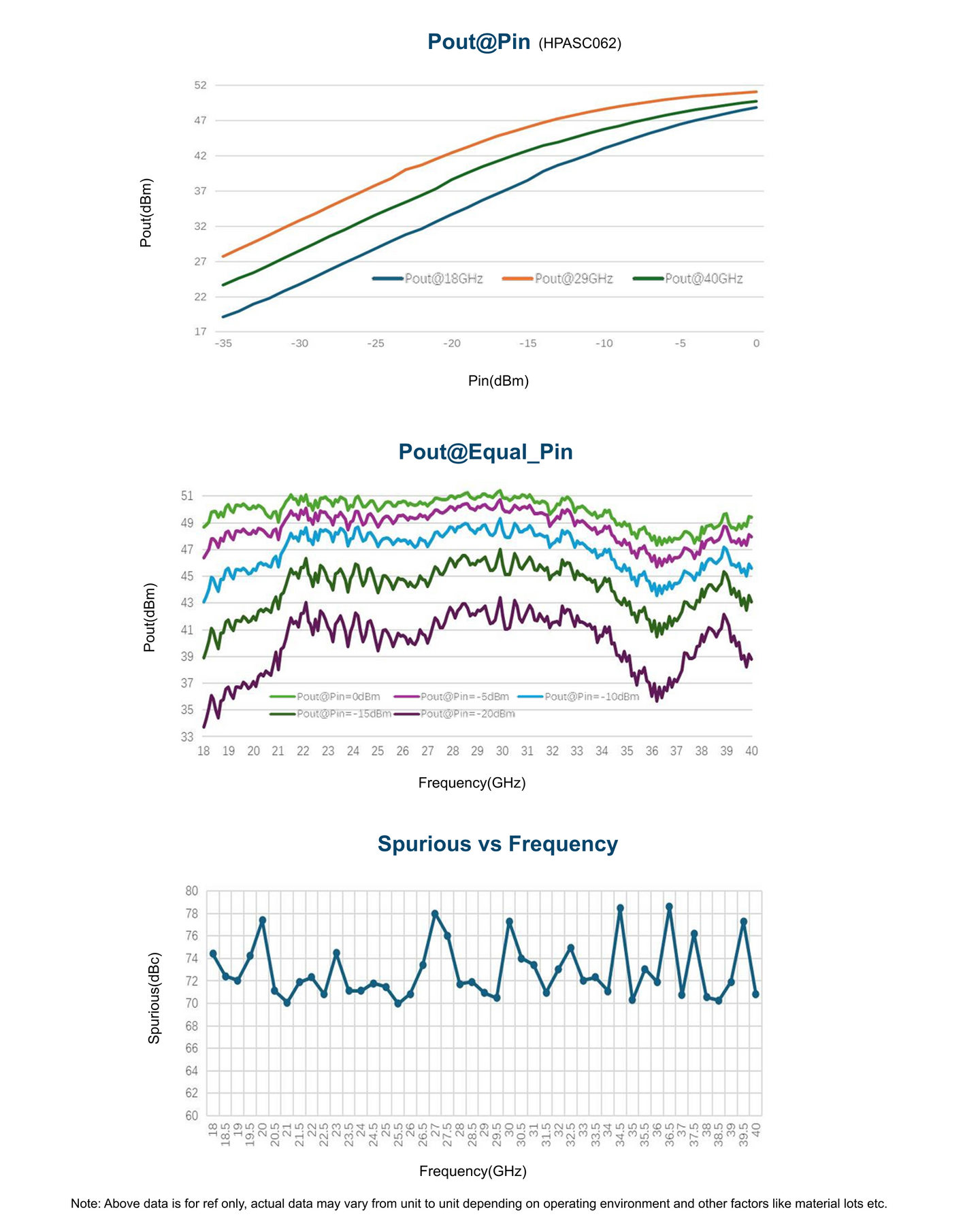

spurious	-50 dBc max.

ELECTRICAL SPECIFICATIONS
control functions	1. Power setting On/Off; 2. RF on/off, 3. Gain adjustment
impedance	50 Ohms
power consumption	1800Watts@max.
power requirements	220 V AC typ.
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication functions	RS422/LAN
communication interfaces	RJ45/DB9
input connector	2.92mm Female
output connector	WRD180

ENVIRONMENTAL SPECIFICATIONS
altitude	10000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +40°C
temperature storage	-30°C to +50°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong

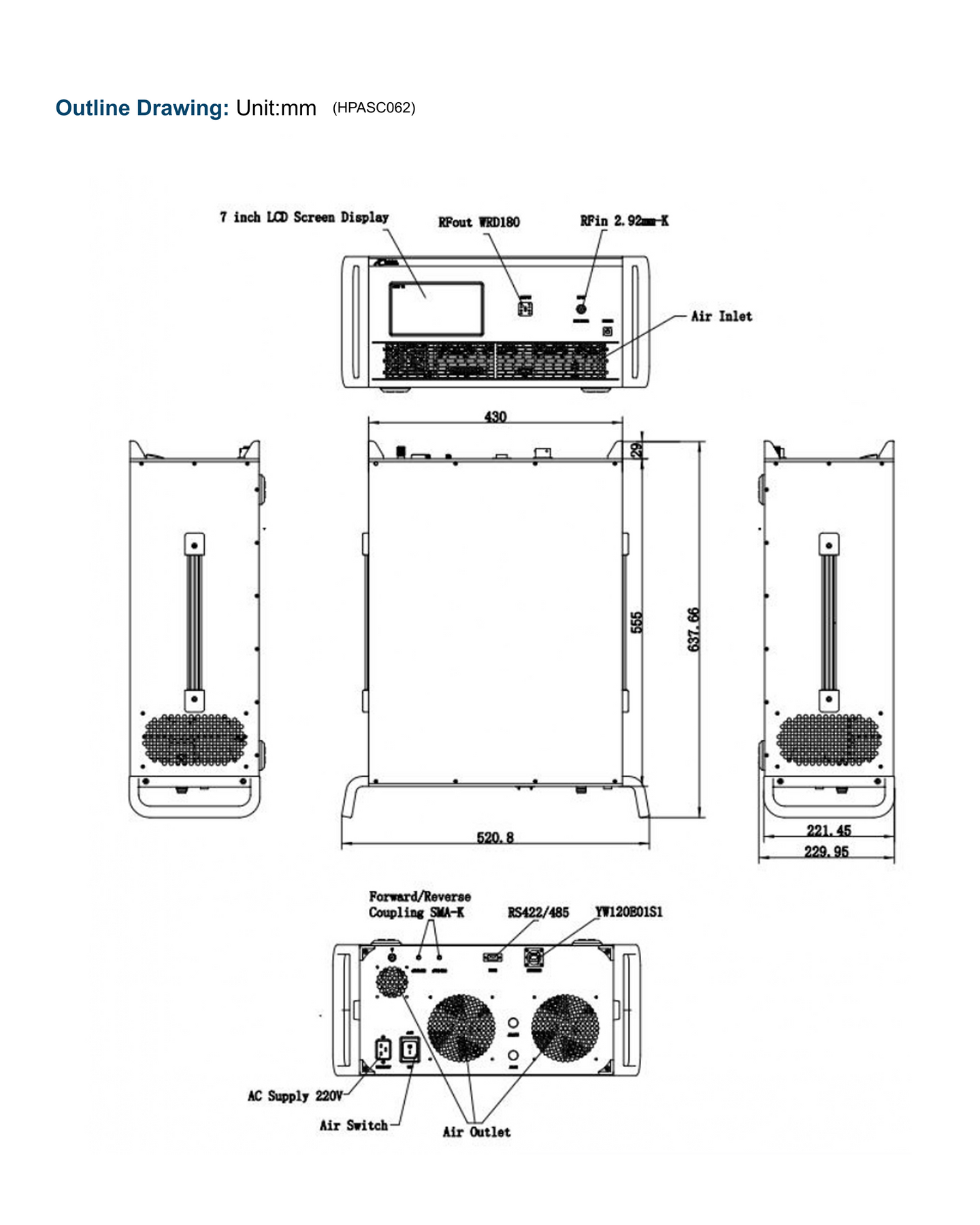

product dimensions	19 Inch 5U mm
product weight	≤ 45 kg

KEY SPECIFICATIONS
gain min	50 dB
input frequency band 1	18 - 40 GHz
minimum output power Psat	50 dBm
number of bands	Single-Band
output Psat typ	50 dBm
transmission mode	Continuous Wave
Product Revision	A

RF SPECIFICATIONS
ESD sensitivity(HBm)	Class 0, passed 150V
gain flatness typ	±5 dB
harmonics	-15 dBc max.@Pout=43dBm
input VSWR max	2.0 : 1
RF input power	5 dBm
spurious	-50 dBc max.@Pout=50dBm

ELECTRICAL SPECIFICATIONS
control functions	1. Program_controlled switching machine by network port & RS422 2. Adjust output power
display functions	1. Display the current out/reflected power; 2. Display fault information
display fundctions	1. Display the current out/reflected power; 2. Display fault information
impedance	50 Ohms
power consumption	3500Watts@max.
power requirements	220 V AC typ.
protection functions	1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR

INTERFACE SPECIFICATIONS
communication interfaces	RJ45/DB9
input connector	2.92mm Female
output connector	WRD180

ENVIRONMENTAL SPECIFICATIONS
altitude	10000 feet
relative humidity	0.95
shock/vibration (MIL-STD-810F)	25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating)	20g for 11msc half sin wave, 3 axis both directions
temperature operational	-20°C to +40°C
temperature storage	-30°C to +50°C

PHYSICAL SPECIFICATIONS
cooling system	Built in Cooling system, forced air cooliong
product dimensions	19 Inch 6U mm
product weight	≤ 55 kg

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517799000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	3A001.b.4.d
Warranty	3 years
Dangerous Goods	-
Unit Package Dimensions	-
Unit Package Weight	17 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0
