HPA-100015

RF High Power Amplifier Systems 18 - 40 GHz 120VAC

RF High Power Amplifier

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS

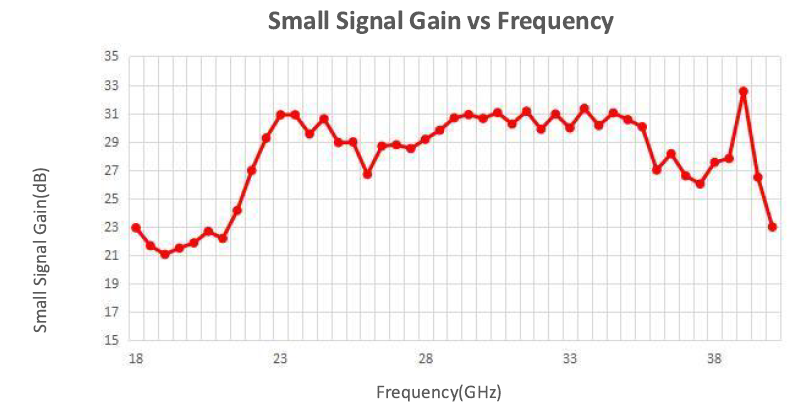

gain min 43 dB
input frequency band 1 18 - 40 GHz
number of bands Single-Band

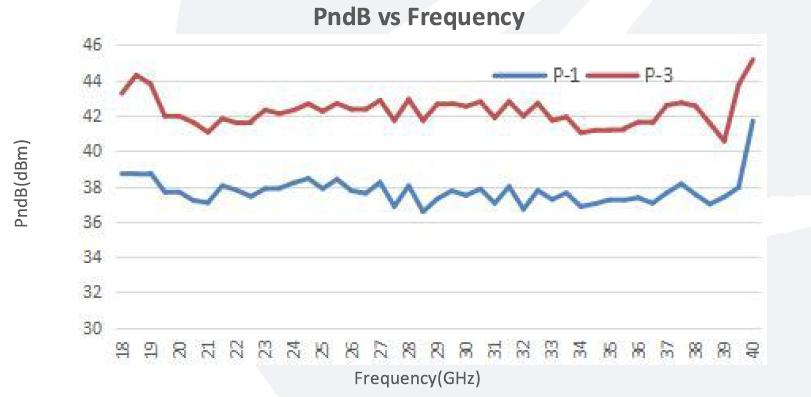

output Psat min 43 dBm
working mode CW/PULSE comp
Product Revision A
RF SPECIFICATIONS
ESD sensitivity(HBm) Class 0, passed 150V
Gain flatness ±5 dB typ

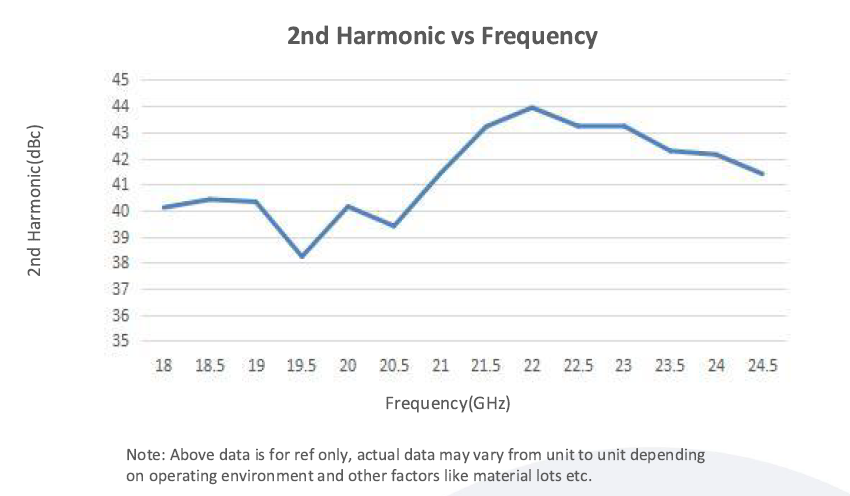

harmonics -15 dBc max.

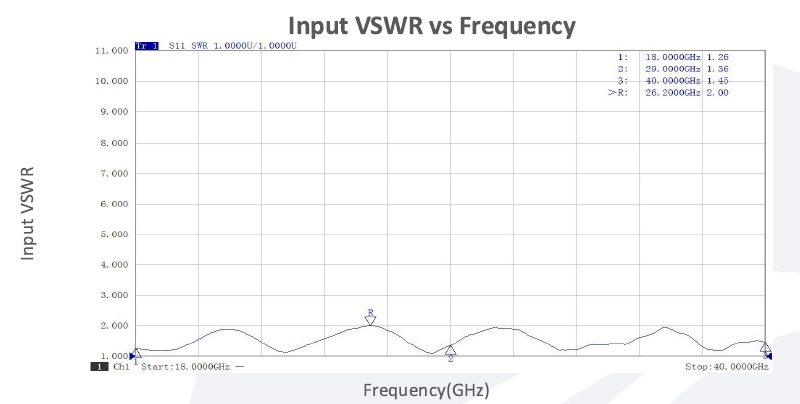

input VSWR max 2.0 : 1
RF input power 10 dBm

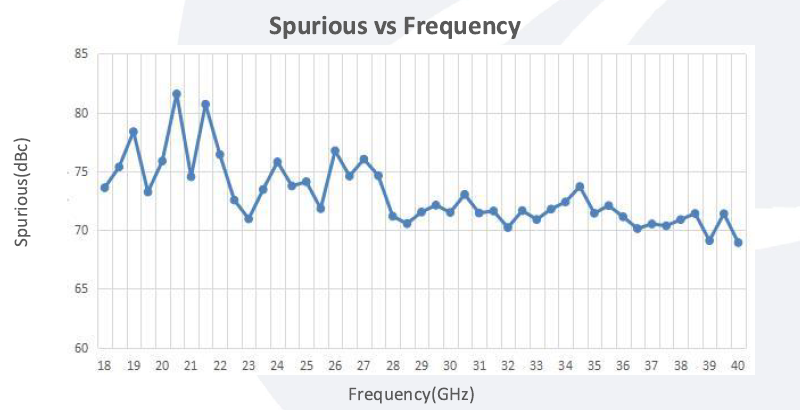

spurious -50 dBc max.
ELECTRICAL SPECIFICATIONS
control functions 1. Power setting On/Off
impedance 50 Ohms
power consumption 600Watts@max.
power requirements 120V AC
protection functions 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
supply bias voltage 120V AC
INTERFACE SPECIFICATIONS
input connector 2.92mm Female
output connector 2.92mm Female
remote control RS422/Ethernet
ENVIRONMENTAL SPECIFICATIONS
altitude 10000 feet
relative humidity 0.95
shock/vibration (MIL-STD-810F) 25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating) 20g for 11msc half sin wave, 3 axis both directions
temperature operational -20°C to +50°C
temperature storage -30°C to +60°C
PHYSICAL SPECIFICATIONS
cooling system Built in Cooling system, forced air cooliong

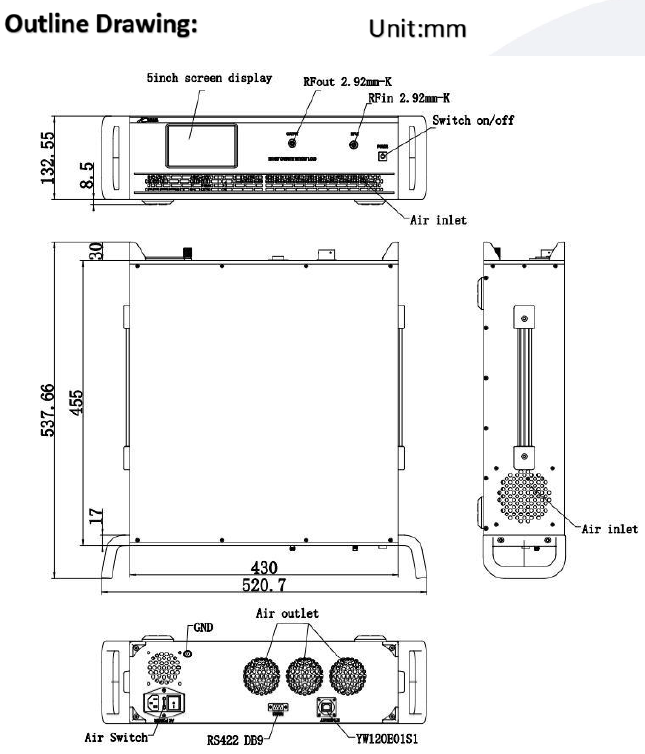

product dimensions 19 Inch 3U*550 mm
product weight 35 kg
