HPASC056

RF High Power Amplifier Systems 8 - 18 GHz

RF High Power Amplifier

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
gain min 64 dB
input frequency band 1 8 - 18 GHz
number of bands Single-Band
output Psat min 64 dBm
output Psat typ 65 dBm
transmission mode Pulse Wave
Product Revision B
RF SPECIFICATIONS
ESD sensitivity(HBm) Class 0, passed 150V
gain flatness typ ±4.5 dB
harmonics -30 dBc typ.
input VSWR max 2.0 : 1
input VSWR typ 1.5 : 1
RF input power 5 dBm
spurious -60 dBc max.
ELECTRICAL SPECIFICATIONS
control functions 1. Power setting On/Off; 2. ALC automatic level control
impedance 50 Ohms
power consumption 900Watts@5%, 1700Watts@10%, 3500Watts@20%
power requirements 220 V AC typ.
protection functions 1. Over TEM; 2. Over voltage; 3. Over current; 4. Over VSWR
INTERFACE SPECIFICATIONS
communication functions RS422/Ethernet
forward/reverse coupling connector SMA Female/SMA Female
front panel LCD screen display 7 inch LCD Screen Display
input connector N Female
output connector WRD750
remote control RS422/Ethernet
ENVIRONMENTAL SPECIFICATIONS
altitude 10,000 feet
relative humidity 0.95
shock/vibration (MIL-STD-810F) 25g rms (15-degree 2KHz) endurance, 1 hour per axis
shock (non operating) 20g for 11msc half sin wave, 3 axis both directions
temperature operational -20°C to +40°C
temperature storage -30°C to +50°C

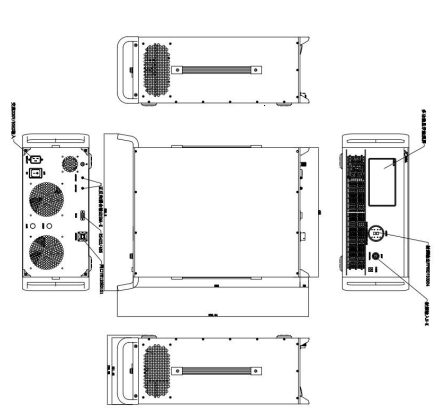

PHYSICAL SPECIFICATIONS
cooling system Built in Cooling system, forced air cooliong
product dimensions 19 Inch 5U mm
product weight 45 kg
