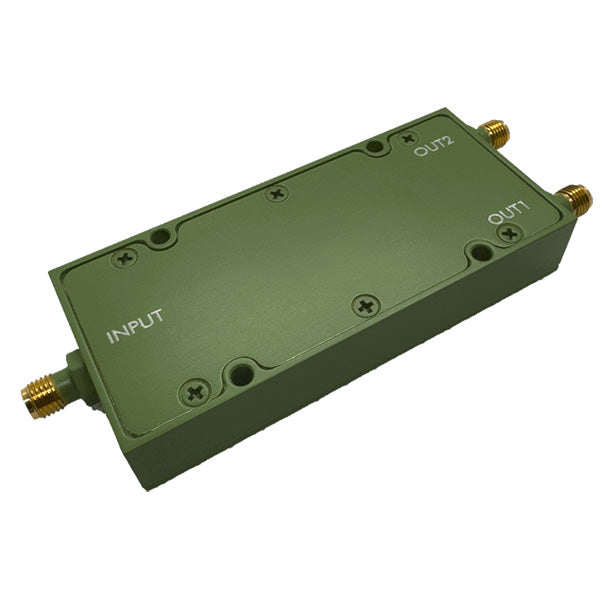

PD2BCS

RF Power Divider

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
bandwith 7.05 GHz
frequency 0.45 - 7.5 GHz
noise figure N/A
Product Revision A
RF SPECIFICATIONS
gain N/A
gain ripple N/A
input VSWR 1.8:1 max (450-550MHz) 1.6:1 max (550-7500MHz)
insertion loss 1.3 dB max.
isolation 18 dB min (550-7500MHz)
ripple N/A
ELECTRICAL SPECIFICATIONS
amplitude balance 0.6 dB max
coupling 3 dB nom.
impedance 50 ohms
power handling avg 30 W max.
INTERFACE SPECIFICATIONS
connectors type SMA-F
ENVIRONMENTAL SPECIFICATIONS
indoor status Yes
PHYSICAL SPECIFICATIONS
product height 14.0mm
product length 82.6 mm
product width 37.1 mm
