Name: Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector
Brand: Norsat International Inc.
SKU: CSE216SMARMSMARM-005
Price: 117.00 USD
Availability: InStock

Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector

CSE216SMARMSMARM-005

Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021939110255,"title":"SMA Right Angle Male \/ 5m","option1":"SMA Right Angle Male","option2":"5m","option3":null,"sku":"CSE216SMARMSMARM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector - SMA Right Angle Male \/ 5m","public_title":"SMA Right Angle Male \/ 5m","options":["SMA Right Angle Male","5m"],"price":11700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021939143023,"title":"SMA Right Angle Male \/ 10m","option1":"SMA Right Angle Male","option2":"10m","option3":null,"sku":"CSE216SMARMSMARM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector - SMA Right Angle Male \/ 10m","public_title":"SMA Right Angle Male \/ 10m","options":["SMA Right Angle Male","10m"],"price":18000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021939175791,"title":"SMA Right Angle Male \/ 30m","option1":"SMA Right Angle Male","option2":"30m","option3":null,"sku":"CSE216SMARMSMARM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector - SMA Right Angle Male \/ 30m","public_title":"SMA Right Angle Male \/ 30m","options":["SMA Right Angle Male","30m"],"price":43000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021939208559,"title":"SMA Right Angle Male \/ 50m","option1":"SMA Right Angle Male","option2":"50m","option3":null,"sku":"CSE216SMARMSMARM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector - SMA Right Angle Male \/ 50m","public_title":"SMA Right Angle Male \/ 50m","options":["SMA Right Angle Male","50m"],"price":68000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021939241327,"title":"SMA Right Angle Male \/ 100m","option1":"SMA Right Angle Male","option2":"100m","option3":null,"sku":"CSE216SMARMSMARM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector - SMA Right Angle Male \/ 100m","public_title":"SMA Right Angle Male \/ 100m","options":["SMA Right Angle Male","100m"],"price":130500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021939274095,"title":"SMA Right Angle Male \/ 200m","option1":"SMA Right Angle Male","option2":"200m","option3":null,"sku":"CSE216SMARMSMARM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Right Angle Male Connector - SMA Right Angle Male \/ 200m","public_title":"SMA Right Angle Male \/ 200m","options":["SMA Right Angle Male","200m"],"price":255500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	10.8 dB
capacitance	405 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	47W max.@18GHz

INTERFACE SPECIFICATIONS
connector 1	SMA Right Angle Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Beryllium Copper, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	SMA Right Angle Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Beryllium Copper, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

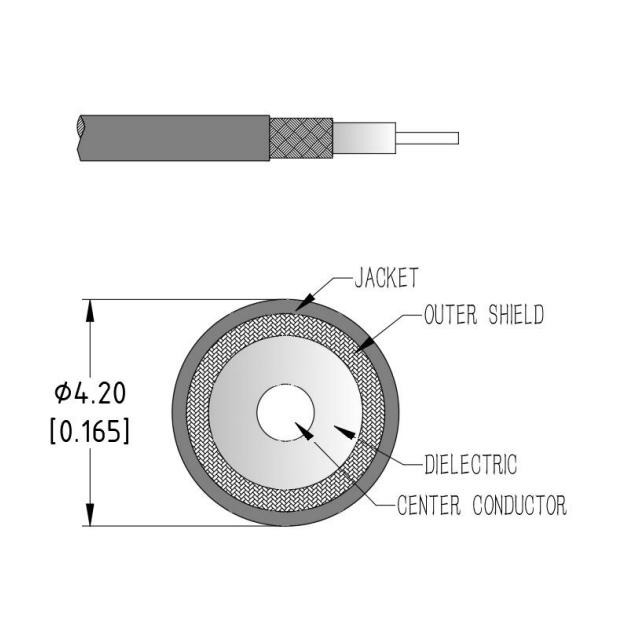

PHYSICAL SPECIFICATIONS
cable diameter	4.2 mm
cable jacket	FEP
min bending life	50000
min bending radius	18 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	21.6 dB
capacitance	810 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	64.8 dB
capacitance	2430 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	108 dB
capacitance	4050 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	216 dB
capacitance	8100 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	432 dB
capacitance	16200 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1
