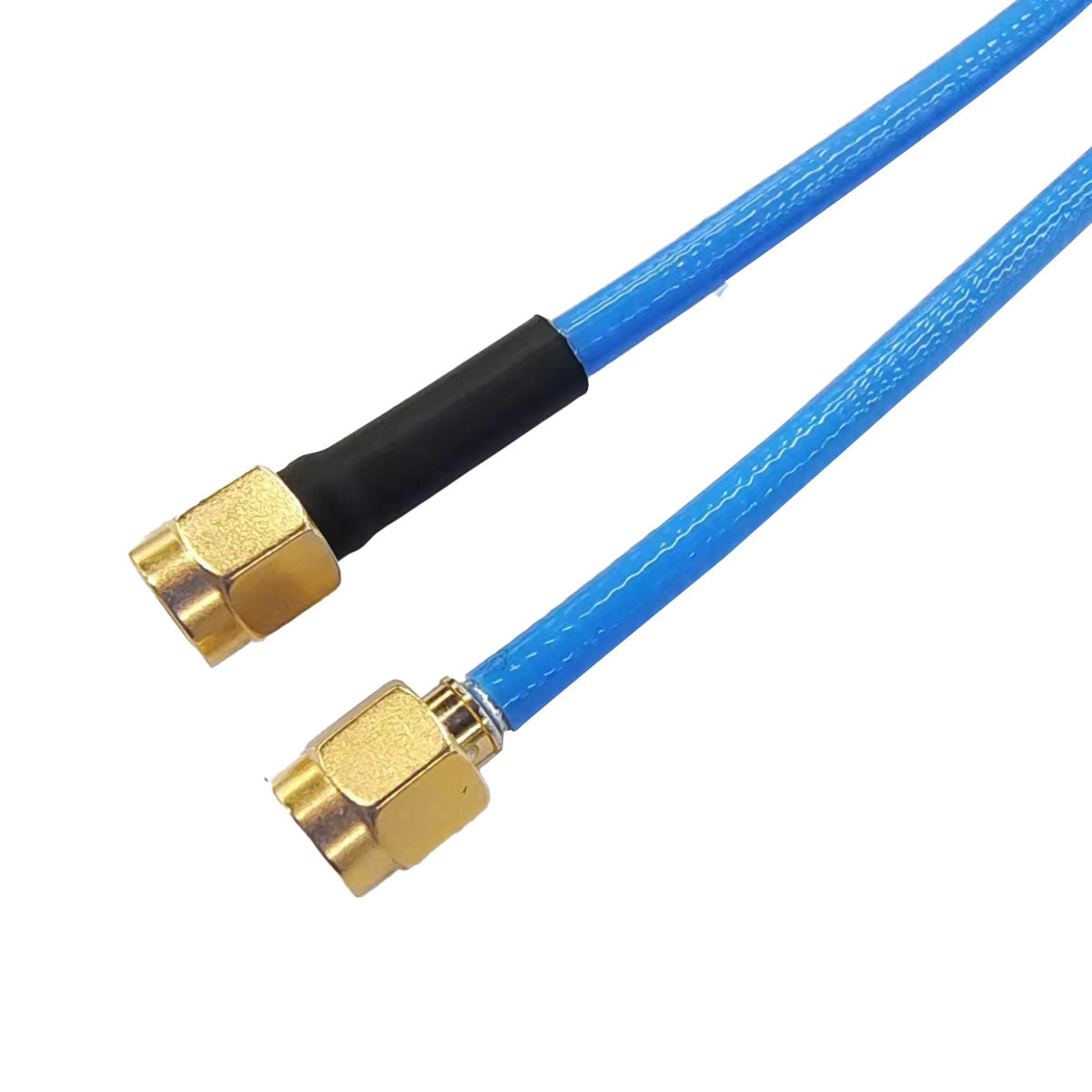

Name: Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector
Brand: Norsat International Inc.
SKU: CSE216SMASMNCNSM-005
Price: 100.00 USD
Availability: InStock

Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector

CSE216SMASMNCNSM-005

Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52023349903727,"title":"N Straight Male \/ 5m","option1":"N Straight Male","option2":"5m","option3":null,"sku":"CSE216SMASMNCNSM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Male \/ 5m","public_title":"N Straight Male \/ 5m","options":["N Straight Male","5m"],"price":10000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023349936495,"title":"N Straight Male \/ 10m","option1":"N Straight Male","option2":"10m","option3":null,"sku":"CSE216SMASMNCNSM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Male \/ 10m","public_title":"N Straight Male \/ 10m","options":["N Straight Male","10m"],"price":16300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023349969263,"title":"N Straight Male \/ 30m","option1":"N Straight Male","option2":"30m","option3":null,"sku":"CSE216SMASMNCNSM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Male \/ 30m","public_title":"N Straight Male \/ 30m","options":["N Straight Male","30m"],"price":41300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350002031,"title":"N Straight Male \/ 50m","option1":"N Straight Male","option2":"50m","option3":null,"sku":"CSE216SMASMNCNSM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Male \/ 50m","public_title":"N Straight Male \/ 50m","options":["N Straight Male","50m"],"price":66300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350034799,"title":"N Straight Male \/ 100m","option1":"N Straight Male","option2":"100m","option3":null,"sku":"CSE216SMASMNCNSM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Male \/ 100m","public_title":"N Straight Male \/ 100m","options":["N Straight Male","100m"],"price":128800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350067567,"title":"N Straight Male \/ 200m","option1":"N Straight Male","option2":"200m","option3":null,"sku":"CSE216SMASMNCNSM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Male \/ 200m","public_title":"N Straight Male \/ 200m","options":["N Straight Male","200m"],"price":253800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350100335,"title":"N Straight Female \/ 5m","option1":"N Straight Female","option2":"5m","option3":null,"sku":"CSE216SMASMNCNSF-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Female \/ 5m","public_title":"N Straight Female \/ 5m","options":["N Straight Female","5m"],"price":11300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350133103,"title":"N Straight Female \/ 10m","option1":"N Straight Female","option2":"10m","option3":null,"sku":"CSE216SMASMNCNSF-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Female \/ 10m","public_title":"N Straight Female \/ 10m","options":["N Straight Female","10m"],"price":17500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350165871,"title":"N Straight Female \/ 30m","option1":"N Straight Female","option2":"30m","option3":null,"sku":"CSE216SMASMNCNSF-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Female \/ 30m","public_title":"N Straight Female \/ 30m","options":["N Straight Female","30m"],"price":42500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350198639,"title":"N Straight Female \/ 50m","option1":"N Straight Female","option2":"50m","option3":null,"sku":"CSE216SMASMNCNSF-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Female \/ 50m","public_title":"N Straight Female \/ 50m","options":["N Straight Female","50m"],"price":67500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350231407,"title":"N Straight Female \/ 100m","option1":"N Straight Female","option2":"100m","option3":null,"sku":"CSE216SMASMNCNSF-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Female \/ 100m","public_title":"N Straight Female \/ 100m","options":["N Straight Female","100m"],"price":130000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350264175,"title":"N Straight Female \/ 200m","option1":"N Straight Female","option2":"200m","option3":null,"sku":"CSE216SMASMNCNSF-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - N Straight Female \/ 200m","public_title":"N Straight Female \/ 200m","options":["N Straight Female","200m"],"price":255000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350296943,"title":"SMA Straight Male \/ 5m","option1":"SMA Straight Male","option2":"5m","option3":null,"sku":"CSF281SMASMSMASM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - SMA Straight Male \/ 5m","public_title":"SMA Straight Male \/ 5m","options":["SMA Straight Male","5m"],"price":9600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350329711,"title":"SMA Straight Male \/ 10m","option1":"SMA Straight Male","option2":"10m","option3":null,"sku":"CSF281SMASMSMASM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - SMA Straight Male \/ 10m","public_title":"SMA Straight Male \/ 10m","options":["SMA Straight Male","10m"],"price":15900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350362479,"title":"SMA Straight Male \/ 30m","option1":"SMA Straight Male","option2":"30m","option3":null,"sku":"CSF281SMASMSMASM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - SMA Straight Male \/ 30m","public_title":"SMA Straight Male \/ 30m","options":["SMA Straight Male","30m"],"price":40900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350395247,"title":"SMA Straight Male \/ 50m","option1":"SMA Straight Male","option2":"50m","option3":null,"sku":"CSF281SMASMSMASM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - SMA Straight Male \/ 50m","public_title":"SMA Straight Male \/ 50m","options":["SMA Straight Male","50m"],"price":65900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350428015,"title":"SMA Straight Male \/ 100m","option1":"SMA Straight Male","option2":"100m","option3":null,"sku":"CSF281SMASMSMASM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - SMA Straight Male \/ 100m","public_title":"SMA Straight Male \/ 100m","options":["SMA Straight Male","100m"],"price":128400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52023350460783,"title":"SMA Straight Male \/ 200m","option1":"SMA Straight Male","option2":"200m","option3":null,"sku":"CSF281SMASMSMASM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 18 - 26.5 GHz - SMA Straight Male Connector - SMA Straight Male \/ 200m","public_title":"SMA Straight Male \/ 200m","options":["SMA Straight Male","200m"],"price":253400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	10.8 dB
capacitance	405 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	47W max.@18GHz

INTERFACE SPECIFICATIONS
connector 1	SMA Straight Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Brass, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	N Straight Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Brass, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

PHYSICAL SPECIFICATIONS
cable diameter	4.2 mm
cable jacket	FEP
min bending life	50000
min bending radius	18 mm

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	21.6 dB
capacitance	810 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	64.8 dB
capacitance	2430 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	108 dB
capacitance	4050 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	216 dB
capacitance	8100 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-18GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	432 dB
capacitance	16200 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-26.5GHz
jacket size	4.2mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	14.05 dB
capacitance	405 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

RF SPECIFICATIONS
cable insertion loss	28.1 dB
capacitance	810 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

RF SPECIFICATIONS
cable insertion loss	84.3 dB
capacitance	2430 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

RF SPECIFICATIONS
cable insertion loss	140.5 dB
capacitance	4050 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

RF SPECIFICATIONS
cable insertion loss	281 dB
capacitance	8100 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

RF SPECIFICATIONS
cable insertion loss	562 dB
capacitance	16200 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-
