Name: Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector
Brand: Norsat International Inc.
SKU: CSA146BNCSMBNCSM-005
Price: 78.00 USD
Availability: InStock

Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector

CSA146BNCSMBNCSM-005

Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021937308015,"title":"BNC Straight Male \/ 5m","option1":"BNC Straight Male","option2":"5m","option3":null,"sku":"CSA146BNCSMBNCSM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector - BNC Straight Male \/ 5m","public_title":"BNC Straight Male \/ 5m","options":["BNC Straight Male","5m"],"price":7800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937340783,"title":"BNC Straight Male \/ 10m","option1":"BNC Straight Male","option2":"10m","option3":null,"sku":"CSA146BNCSMBNCSM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector - BNC Straight Male \/ 10m","public_title":"BNC Straight Male \/ 10m","options":["BNC Straight Male","10m"],"price":13000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937373551,"title":"BNC Straight Male \/ 30m","option1":"BNC Straight Male","option2":"30m","option3":null,"sku":"CSA146BNCSMBNCSM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector - BNC Straight Male \/ 30m","public_title":"BNC Straight Male \/ 30m","options":["BNC Straight Male","30m"],"price":33800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937406319,"title":"BNC Straight Male \/ 50m","option1":"BNC Straight Male","option2":"50m","option3":null,"sku":"CSA146BNCSMBNCSM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector - BNC Straight Male \/ 50m","public_title":"BNC Straight Male \/ 50m","options":["BNC Straight Male","50m"],"price":54600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937439087,"title":"BNC Straight Male \/ 100m","option1":"BNC Straight Male","option2":"100m","option3":null,"sku":"CSA146BNCSMBNCSM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector - BNC Straight Male \/ 100m","public_title":"BNC Straight Male \/ 100m","options":["BNC Straight Male","100m"],"price":106700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937471855,"title":"BNC Straight Male \/ 200m","option1":"BNC Straight Male","option2":"200m","option3":null,"sku":"CSA146BNCSMBNCSM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - BNC Straight Male Connector - BNC Straight Male \/ 200m","public_title":"BNC Straight Male \/ 200m","options":["BNC Straight Male","200m"],"price":210900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-3GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	7.3 dB
capacitance	405 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	47W max.@4GHz

INTERFACE SPECIFICATIONS
connector 1	BNC Straight Male
connector 1 body material and plating	Beryllium Copper & Brass, Nikel
connector 1 contact material and plating	Brass, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	BNC Straight Male
connector 2 body material and plating	Beryllium Copper & Brass, Nikel
connector 2 contact material and plating	Brass, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

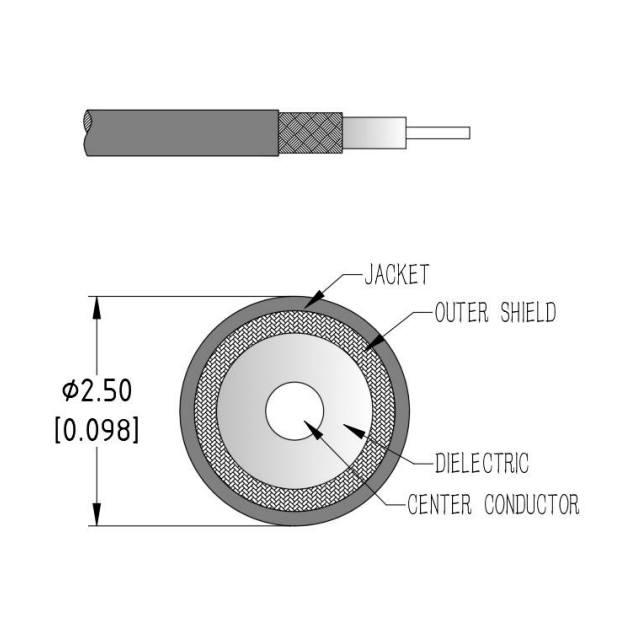

PHYSICAL SPECIFICATIONS
cable diameter	2.5 mm
cable jacket	FEP
min bending life	50000
min bending radius	11 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-3GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	14.6 dB
capacitance	810 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-3GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	43.8 dB
capacitance	2430 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-3GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	73 dB
capacitance	4050 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-3GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	146 dB
capacitance	8100 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-3GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	292 dB
capacitance	16200 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1
