Name: Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector
Brand: Norsat International Inc.
SKU: CSH571SMPRFSMPRF-005
Price: 175.00 USD
Availability: InStock

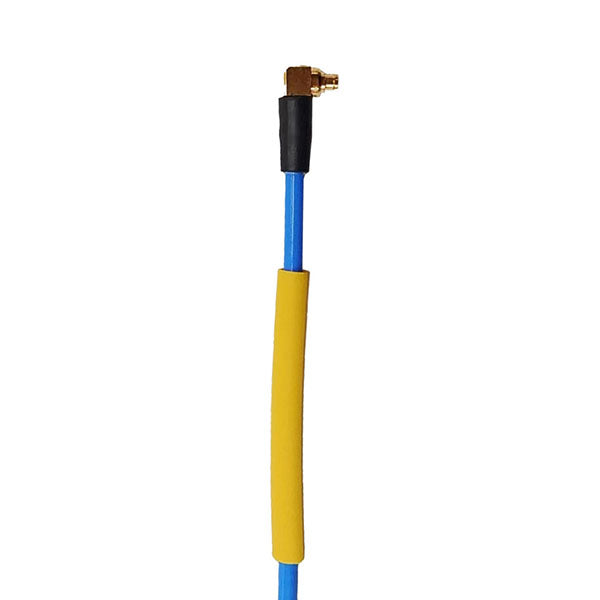

Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector

CSH571SMPRFSMPRF-005

Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021937045871,"title":"SMP Right Angle Female \/ 5m","option1":"SMP Right Angle Female","option2":"5m","option3":null,"sku":"CSH571SMPRFSMPRF-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector - SMP Right Angle Female \/ 5m","public_title":"SMP Right Angle Female \/ 5m","options":["SMP Right Angle Female","5m"],"price":17500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937078639,"title":"SMP Right Angle Female \/ 10m","option1":"SMP Right Angle Female","option2":"10m","option3":null,"sku":"CSH571SMPRFSMPRF-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector - SMP Right Angle Female \/ 10m","public_title":"SMP Right Angle Female \/ 10m","options":["SMP Right Angle Female","10m"],"price":28000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937111407,"title":"SMP Right Angle Female \/ 30m","option1":"SMP Right Angle Female","option2":"30m","option3":null,"sku":"CSH571SMPRFSMPRF-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector - SMP Right Angle Female \/ 30m","public_title":"SMP Right Angle Female \/ 30m","options":["SMP Right Angle Female","30m"],"price":69600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937144175,"title":"SMP Right Angle Female \/ 50m","option1":"SMP Right Angle Female","option2":"50m","option3":null,"sku":"CSH571SMPRFSMPRF-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector - SMP Right Angle Female \/ 50m","public_title":"SMP Right Angle Female \/ 50m","options":["SMP Right Angle Female","50m"],"price":111300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937176943,"title":"SMP Right Angle Female \/ 100m","option1":"SMP Right Angle Female","option2":"100m","option3":null,"sku":"CSH571SMPRFSMPRF-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector - SMP Right Angle Female \/ 100m","public_title":"SMP Right Angle Female \/ 100m","options":["SMP Right Angle Female","100m"],"price":215500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021937209711,"title":"SMP Right Angle Female \/ 200m","option1":"SMP Right Angle Female","option2":"200m","option3":null,"sku":"CSH571SMPRFSMPRF-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Semi-Flexible Cable 3 - 40 GHz - SMP Right Angle Female Connector - SMP Right Angle Female \/ 200m","public_title":"SMP Right Angle Female \/ 200m","options":["SMP Right Angle Female","200m"],"price":423800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-40GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	28.55 dB
capacitance	405 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.4:1
VSWR typ	1.35:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	12W max.@40GHz

INTERFACE SPECIFICATIONS
connector 1	SMP Right Angle Female
connector 1 body material and plating	Beryllium Copper, Gold
connector 1 contact material and plating	Beryllium Copper, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	SMP Right Angle Female
connector 2 body material and plating	Beryllium Copper, Gold
connector 2 contact material and plating	Beryllium Copper, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

PHYSICAL SPECIFICATIONS
cable diameter	2.5 mm
cable jacket	FEP
min bending life	50000
min bending radius	11 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-40GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	57.1 dB
capacitance	810 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.4:1
VSWR typ	1.35:1

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-40GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	171.3 dB
capacitance	2430 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.4:1
VSWR typ	1.35:1

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-40GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	285.5 dB
capacitance	4050 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.4:1
VSWR typ	1.35:1

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-40GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	571 dB
capacitance	8100 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.4:1
VSWR typ	1.35:1

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-40GHz
jacket size	2.5mm
material flexibility	Semi-flexible
velocity of propagation	70% Typ.
Product Revision	A

RF SPECIFICATIONS
cable insertion loss	1142 dB
capacitance	16200 pF Max.
shielding effectiveness	90 dB Min.
VSWR max	1.4:1
VSWR typ	1.35:1
