Name: Single-Band C-Band LNA
Brand: Norsat International Inc.
SKU: LNAC00NP
Price: 2275.00 USD
Availability: InStock

LNAC00NP

Single-Band C-Band LNA

LNA Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":42754380267703,"title":"00: 3.40 - 4.20 GHz \/ N - 50 Ohm \/ MS3112E10-6P","option1":"00: 3.40 - 4.20 GHz","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAC00NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 00: 3.40 - 4.20 GHz \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"00: 3.40 - 4.20 GHz \/ N - 50 Ohm \/ MS3112E10-6P","options":["00: 3.40 - 4.20 GHz","N - 50 Ohm","MS3112E10-6P"],"price":227500,"weight":655,"compare_at_price":227500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380300471,"title":"00: 3.40 - 4.20 GHz \/ N - 50 Ohm \/ Output connector","option1":"00: 3.40 - 4.20 GHz","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAC00NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 00: 3.40 - 4.20 GHz \/ N - 50 Ohm \/ Output connector","public_title":"00: 3.40 - 4.20 GHz \/ N - 50 Ohm \/ Output connector","options":["00: 3.40 - 4.20 GHz","N - 50 Ohm","Output connector"],"price":215000,"weight":655,"compare_at_price":215000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380333239,"title":"00: 3.40 - 4.20 GHz \/ SMA \/ MS3112E10-6P","option1":"00: 3.40 - 4.20 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAC00SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 00: 3.40 - 4.20 GHz \/ SMA \/ MS3112E10-6P","public_title":"00: 3.40 - 4.20 GHz \/ SMA \/ MS3112E10-6P","options":["00: 3.40 - 4.20 GHz","SMA","MS3112E10-6P"],"price":227500,"weight":655,"compare_at_price":227500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380366007,"title":"00: 3.40 - 4.20 GHz \/ SMA \/ Output connector","option1":"00: 3.40 - 4.20 GHz","option2":"SMA","option3":"Output connector","sku":"LNAC00SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 00: 3.40 - 4.20 GHz \/ SMA \/ Output connector","public_title":"00: 3.40 - 4.20 GHz \/ SMA \/ Output connector","options":["00: 3.40 - 4.20 GHz","SMA","Output connector"],"price":215000,"weight":655,"compare_at_price":215000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380398775,"title":"10: 4.50 - 4.80 GHz \/ N - 50 Ohm \/ MS3112E10-6P","option1":"10: 4.50 - 4.80 GHz","option2":"N - 50 Ohm","option3":"MS3112E10-6P","sku":"LNAC10NP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 10: 4.50 - 4.80 GHz \/ N - 50 Ohm \/ MS3112E10-6P","public_title":"10: 4.50 - 4.80 GHz \/ N - 50 Ohm \/ MS3112E10-6P","options":["10: 4.50 - 4.80 GHz","N - 50 Ohm","MS3112E10-6P"],"price":227500,"weight":655,"compare_at_price":227500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380431543,"title":"10: 4.50 - 4.80 GHz \/ N - 50 Ohm \/ Output connector","option1":"10: 4.50 - 4.80 GHz","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAC10NC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 10: 4.50 - 4.80 GHz \/ N - 50 Ohm \/ Output connector","public_title":"10: 4.50 - 4.80 GHz \/ N - 50 Ohm \/ Output connector","options":["10: 4.50 - 4.80 GHz","N - 50 Ohm","Output connector"],"price":215000,"weight":655,"compare_at_price":215000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380464311,"title":"10: 4.50 - 4.80 GHz \/ SMA \/ MS3112E10-6P","option1":"10: 4.50 - 4.80 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAC10SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 10: 4.50 - 4.80 GHz \/ SMA \/ MS3112E10-6P","public_title":"10: 4.50 - 4.80 GHz \/ SMA \/ MS3112E10-6P","options":["10: 4.50 - 4.80 GHz","SMA","MS3112E10-6P"],"price":227500,"weight":655,"compare_at_price":227500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754380497079,"title":"10: 4.50 - 4.80 GHz \/ SMA \/ Output connector","option1":"10: 4.50 - 4.80 GHz","option2":"SMA","option3":"Output connector","sku":"LNAC10SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band C-Band LNA - 10: 4.50 - 4.80 GHz \/ SMA \/ Output connector","public_title":"10: 4.50 - 4.80 GHz \/ SMA \/ Output connector","options":["10: 4.50 - 4.80 GHz","SMA","Output connector"],"price":215000,"weight":655,"compare_at_price":215000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	C-Band
input frequency band 1	3.40 - 4.20 GHz
noise figure	30’K max.
Product Revision	A

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness	4 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.2 : 1
output P1dB	+ 5 dBm
output VSWR	2.2 : 1

ELECTRICAL SPECIFICATIONS

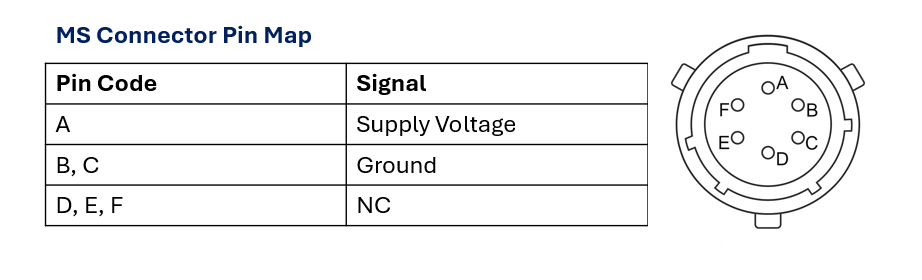

input power	MS3112E10-6P
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
input W/G flange	CPR 229G

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C

PHYSICAL SPECIFICATIONS
product height	164.5 mm
product length	98.8 mm
product weight	0.63 kg
product width	70 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	190 mm x 115 mm x 75 mm
Unit Package Weight	0.655 kg
