LNA-100153

Single-Band C-Band LNA, 3.7-4.8GHz

$2,275.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.7 - 4.8 GHz
noise figure max 55’K
Product Revision A
RF SPECIFICATIONS
conversion gain max 55 dB
conversion gain min 45 dB
conversion gain typ 50 dB
Gain Flatness 4 dB p-p max
input VSWR 3.0 : 1
output P1dB + 5 dBm min.
output VSWR 2.2 : 1
ELECTRICAL SPECIFICATIONS
input power MS3112E10-6P
power requirements +12 to +24V DC
required current 200mA max
INTERFACE SPECIFICATIONS
input W/G flange CPR 229G with groove
output connector

N-type
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C

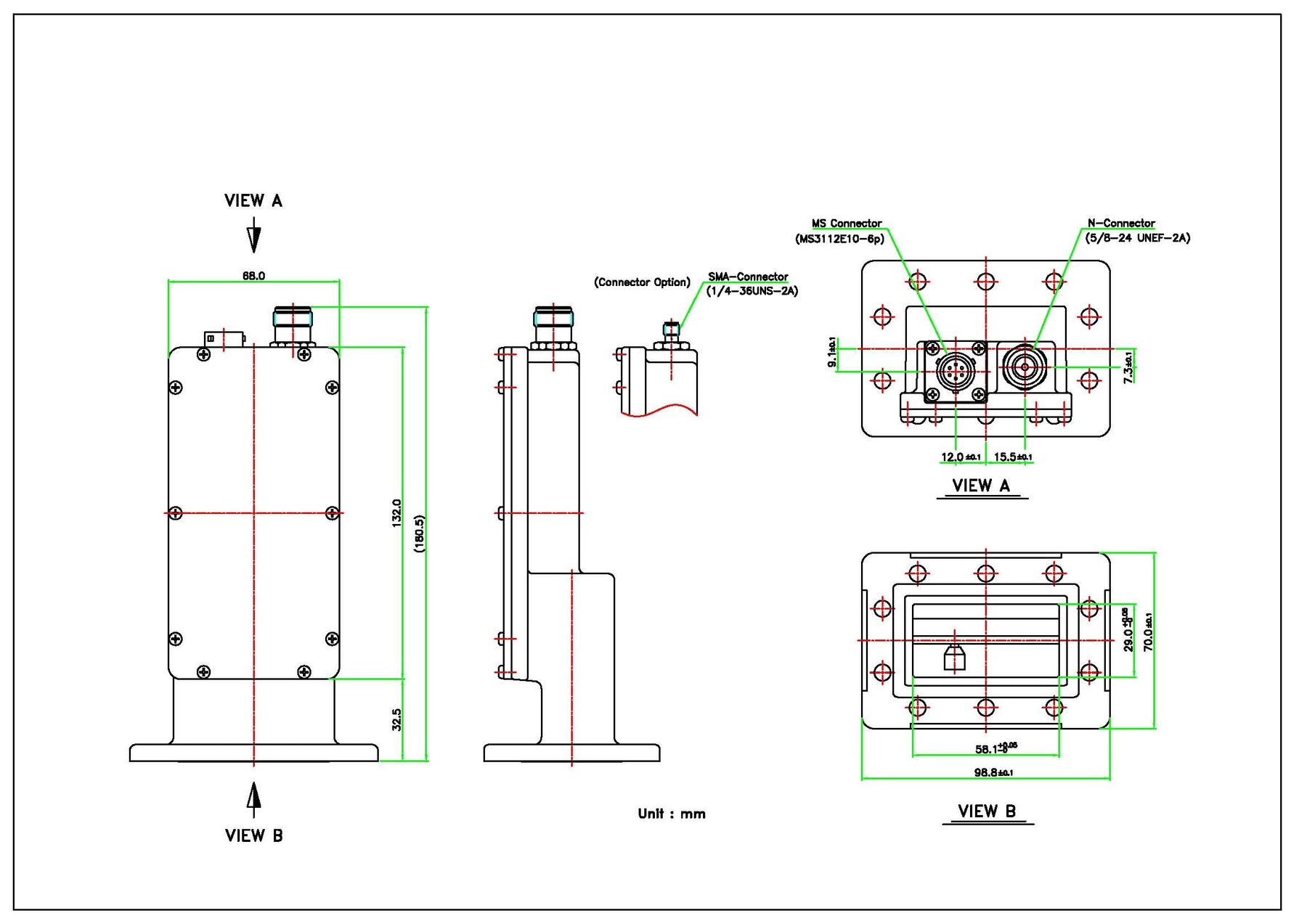

PHYSICAL SPECIFICATIONS
IP Rate IP67
product height 164.5 mm
product length 98.8 mm
product weight 0.63 kg
product width 70 mm
