Name: Single-Band Ka-Band LNA
Brand: Norsat International Inc.
SKU: LNAKA10SP
Price: 2945.00 USD
Availability: InStock

LNAKA10SP

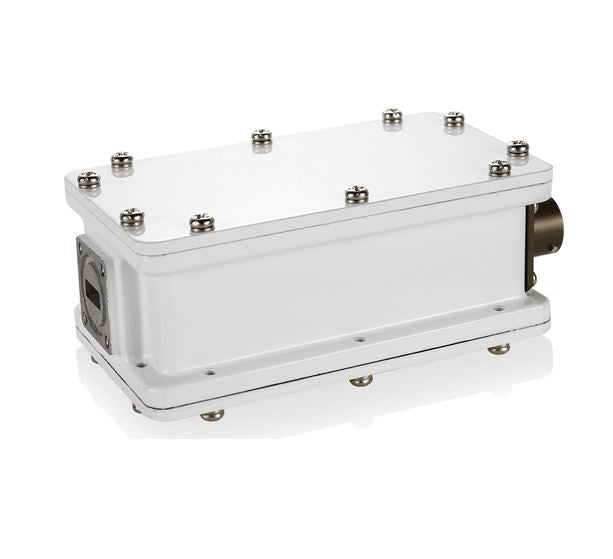

Single-Band Ka-Band LNA

LNA Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

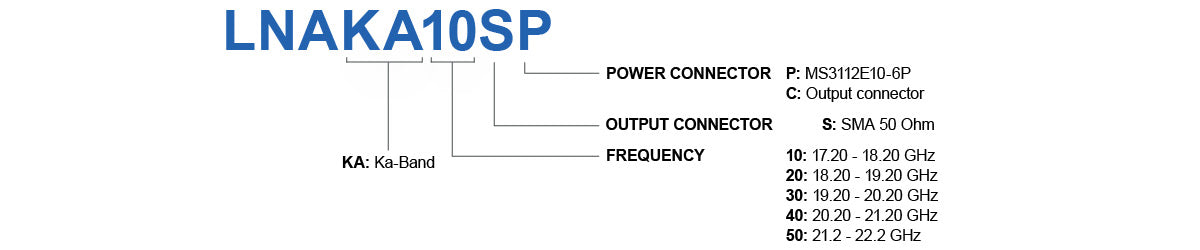

[{"id":42754381512887,"title":"10: 17.20 - 18.20 GHz \/ SMA \/ MS3112E10-6P","option1":"10: 17.20 - 18.20 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKA10SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 10: 17.20 - 18.20 GHz \/ SMA \/ MS3112E10-6P","public_title":"10: 17.20 - 18.20 GHz \/ SMA \/ MS3112E10-6P","options":["10: 17.20 - 18.20 GHz","SMA","MS3112E10-6P"],"price":294500,"weight":475,"compare_at_price":265000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381545655,"title":"10: 17.20 - 18.20 GHz \/ SMA \/ Output connector","option1":"10: 17.20 - 18.20 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKA10SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 10: 17.20 - 18.20 GHz \/ SMA \/ Output connector","public_title":"10: 17.20 - 18.20 GHz \/ SMA \/ Output connector","options":["10: 17.20 - 18.20 GHz","SMA","Output connector"],"price":280600,"weight":475,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381578423,"title":"20: 18.20 - 19.20 GHz \/ SMA \/ MS3112E10-6P","option1":"20: 18.20 - 19.20 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKA20SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 20: 18.20 - 19.20 GHz \/ SMA \/ MS3112E10-6P","public_title":"20: 18.20 - 19.20 GHz \/ SMA \/ MS3112E10-6P","options":["20: 18.20 - 19.20 GHz","SMA","MS3112E10-6P"],"price":294500,"weight":475,"compare_at_price":265000,"inventory_management":"shopify","barcode":"1571712231671","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381611191,"title":"20: 18.20 - 19.20 GHz \/ SMA \/ Output connector","option1":"20: 18.20 - 19.20 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKA20SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 20: 18.20 - 19.20 GHz \/ SMA \/ Output connector","public_title":"20: 18.20 - 19.20 GHz \/ SMA \/ Output connector","options":["20: 18.20 - 19.20 GHz","SMA","Output connector"],"price":280600,"weight":475,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381643959,"title":"30: 19.20 - 20.20 GHz \/ SMA \/ MS3112E10-6P","option1":"30: 19.20 - 20.20 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKA30SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 30: 19.20 - 20.20 GHz \/ SMA \/ MS3112E10-6P","public_title":"30: 19.20 - 20.20 GHz \/ SMA \/ MS3112E10-6P","options":["30: 19.20 - 20.20 GHz","SMA","MS3112E10-6P"],"price":294500,"weight":475,"compare_at_price":265000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381676727,"title":"30: 19.20 - 20.20 GHz \/ SMA \/ Output connector","option1":"30: 19.20 - 20.20 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKA30SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 30: 19.20 - 20.20 GHz \/ SMA \/ Output connector","public_title":"30: 19.20 - 20.20 GHz \/ SMA \/ Output connector","options":["30: 19.20 - 20.20 GHz","SMA","Output connector"],"price":280600,"weight":475,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381709495,"title":"40: 20.20 - 21.20 GHz \/ SMA \/ MS3112E10-6P","option1":"40: 20.20 - 21.20 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKA40SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 40: 20.20 - 21.20 GHz \/ SMA \/ MS3112E10-6P","public_title":"40: 20.20 - 21.20 GHz \/ SMA \/ MS3112E10-6P","options":["40: 20.20 - 21.20 GHz","SMA","MS3112E10-6P"],"price":294500,"weight":475,"compare_at_price":265000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381742263,"title":"40: 20.20 - 21.20 GHz \/ SMA \/ Output connector","option1":"40: 20.20 - 21.20 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKA40SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 40: 20.20 - 21.20 GHz \/ SMA \/ Output connector","public_title":"40: 20.20 - 21.20 GHz \/ SMA \/ Output connector","options":["40: 20.20 - 21.20 GHz","SMA","Output connector"],"price":280600,"weight":475,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381775031,"title":"50: 21.20 - 22.20 GHz \/ SMA \/ MS3112E10-6P","option1":"50: 21.20 - 22.20 GHz","option2":"SMA","option3":"MS3112E10-6P","sku":"LNAKA50SP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 50: 21.20 - 22.20 GHz \/ SMA \/ MS3112E10-6P","public_title":"50: 21.20 - 22.20 GHz \/ SMA \/ MS3112E10-6P","options":["50: 21.20 - 22.20 GHz","SMA","MS3112E10-6P"],"price":294500,"weight":475,"compare_at_price":265000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754381807799,"title":"50: 21.20 - 22.20 GHz \/ SMA \/ Output connector","option1":"50: 21.20 - 22.20 GHz","option2":"SMA","option3":"Output connector","sku":"LNAKA50SC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Ka-Band LNA - 50: 21.20 - 22.20 GHz \/ SMA \/ Output connector","public_title":"50: 21.20 - 22.20 GHz \/ SMA \/ Output connector","options":["50: 21.20 - 22.20 GHz","SMA","Output connector"],"price":280600,"weight":475,"compare_at_price":252500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ka-Band
input frequency band 1	17.20 - 18.20 GHz
noise figure max	1.5 dB
Product Revision	A

RF SPECIFICATIONS
conversion gain max	60 dB
conversion gain min	50 dB
conversion gain typ	55 dB
Gain Flatness	4 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.2 : 1
output P1dB min	+ 5 dBm
output VSWR	2.2 : 1

ELECTRICAL SPECIFICATIONS

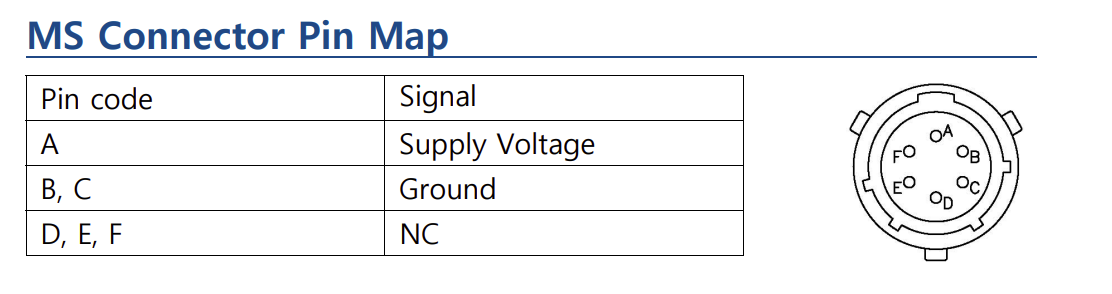

input power	MS3112E10-6P
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
input W/G flange	WR 42

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C

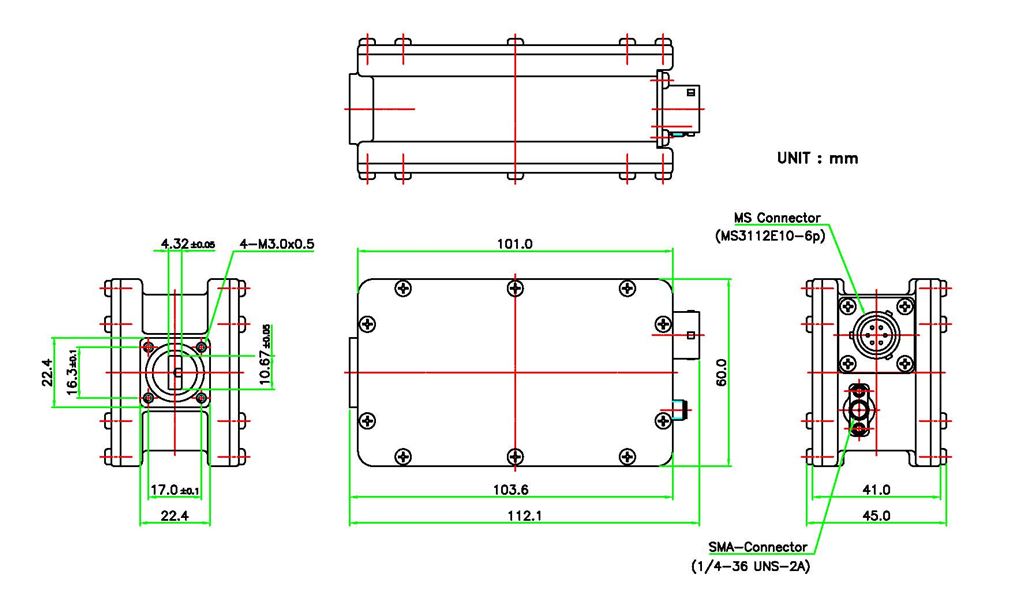

PHYSICAL SPECIFICATIONS
product height	103.6 mm
product length	60 mm
product weight	0.45 kg
product width	45 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	145 x 95 x 65 mm
Unit Package Weight	0.475 kg
Total Aluminium Content	0.297 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 0.7425
