LNA-100135

Single-Band Ku-Band LNA

$1,749.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 12.75 GHz
noise figure max at over temperature 1.1 dB
noise figure max at room temperature 0.9 dB
output frequency band 1 10.70 - 12.75 GHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 63 dB
conversion gain min 57 dB
conversion gain typ 60 dB
desensitization threshold > -30 dBm
Gain flatness over any 250MHz bandwidth ≤ 2 dB p-p
group delay ripple over any 250MHz bandwidth 5 ns max.
IMD3 <-50 dBc with 2 carriers at -95 dBm each input
input level range -92 to -130 dBm
input VSWR 2.0 : 1 max.
output P1dB + 10 dBm min.
output VSWR 2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
input power via Seperate SMA-Connector
power consumption 5W max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
RF output connector SMA
ENVIRONMENTAL SPECIFICATIONS
humidity 100% non-condensing
IP rating IP 67
temperature operational -40 to +60°C
temperature storage -60°C to +85°C

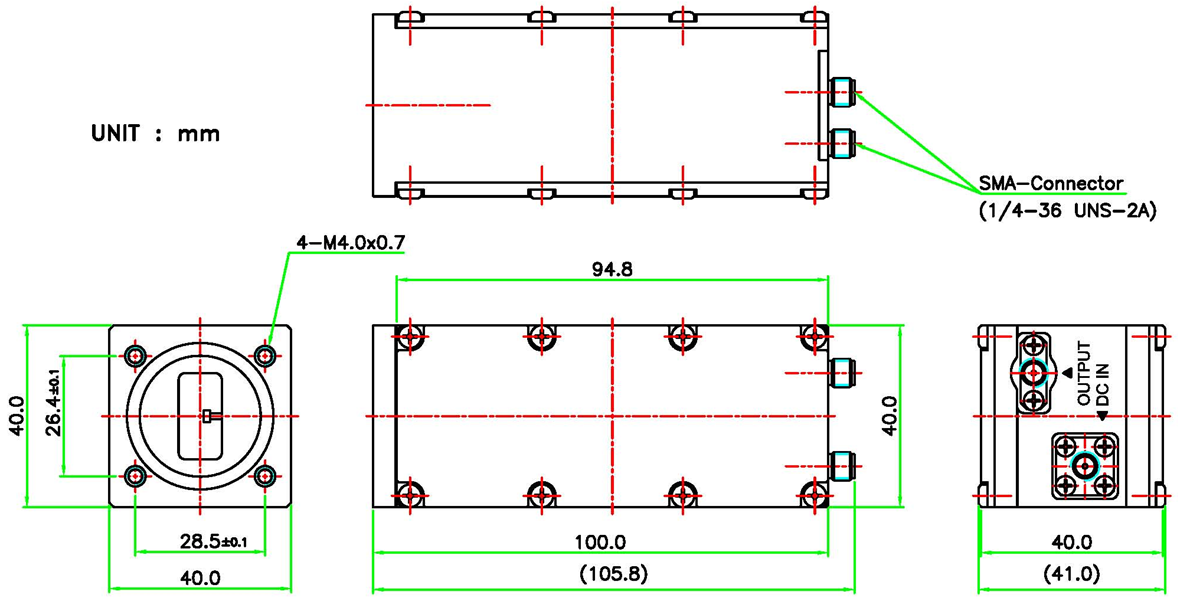

PHYSICAL SPECIFICATIONS
product height 40 mm
product length 100 mm
product weight 0.300 kg
product width 40 mm
