LNA-100126

Single-Band L-Band LNA DC Power via Output N-Conn

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band L-Band
input frequency band 1 1150-1650 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness 2 dB p-p max.
gain ripple (at per 36MHz) 1 dB p-p max.
input VSWR 2.0 : 1 max.
noise temperature 45 K max.
output P1dB + 10 dBm
output VSWR 2.0 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 300 mA max.
input power Power via output N-Connector
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
RF input connector N - 50 Ohm
RF output connector N - 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
Waterproof IP67

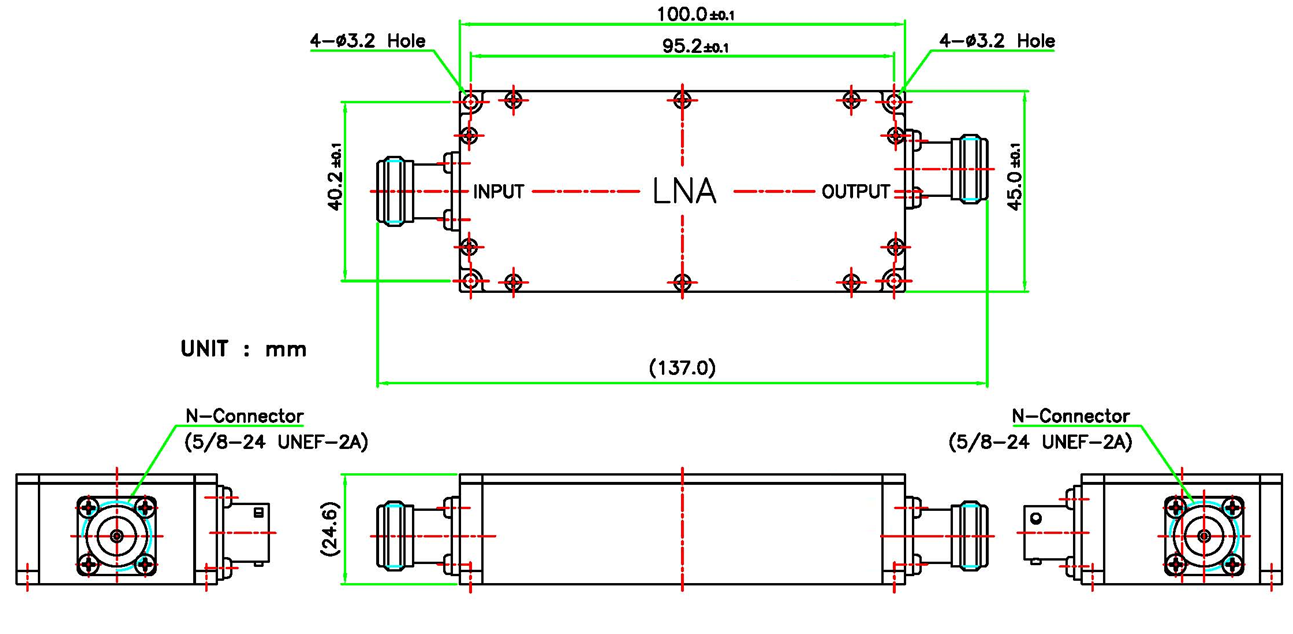

PHYSICAL SPECIFICATIONS
product height 24.6 mm
product length 137 mm
product weight 0.25 kg
product width 45 mm
