Name: Single-Band S-Band LNA
Brand: Norsat International Inc.
SKU: LNAS10NF
Price: 3100.00 USD
Availability: InStock

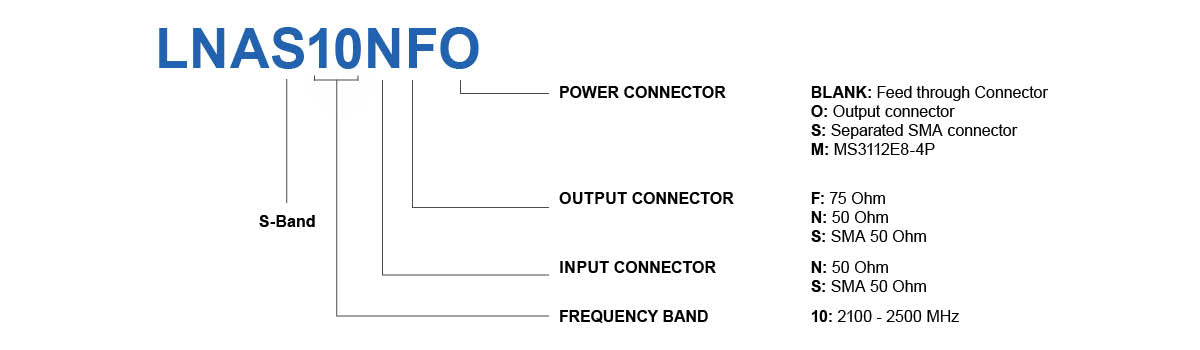

LNAS10NF

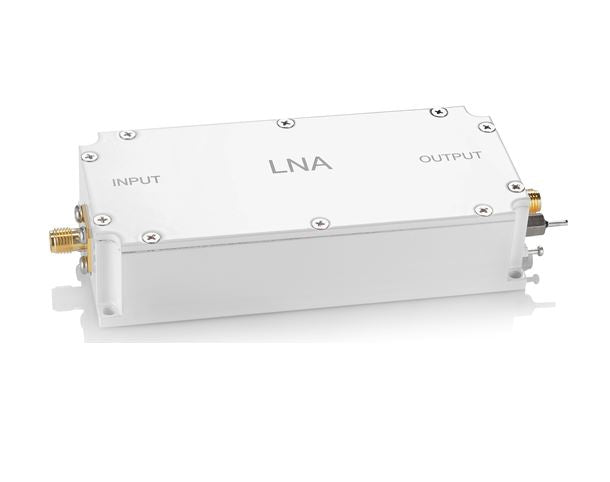

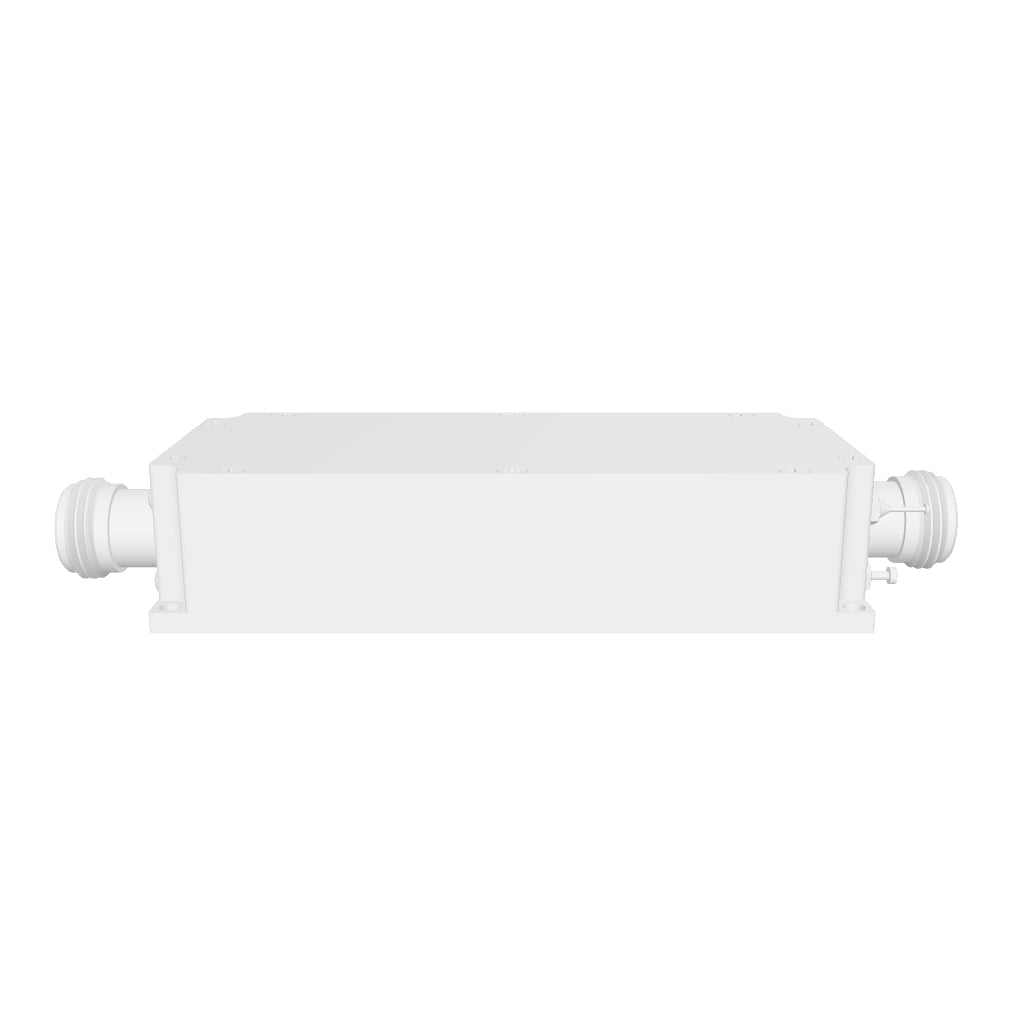

Single-Band S-Band LNA

LNA Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":42754382430391,"title":"N - 50 Ohm \/ F - 75 Ohm \/ Feed through connector","option1":"N - 50 Ohm","option2":"F - 75 Ohm","option3":"Feed through connector","sku":"LNAS10NF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ F - 75 Ohm \/ Feed through connector","public_title":"N - 50 Ohm \/ F - 75 Ohm \/ Feed through connector","options":["N - 50 Ohm","F - 75 Ohm","Feed through connector"],"price":310000,"weight":250,"compare_at_price":277500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382463159,"title":"N - 50 Ohm \/ N - 50 Ohm \/ Feed through connector","option1":"N - 50 Ohm","option2":"N - 50 Ohm","option3":"Feed through connector","sku":"LNAS10NN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ N - 50 Ohm \/ Feed through connector","public_title":"N - 50 Ohm \/ N - 50 Ohm \/ Feed through connector","options":["N - 50 Ohm","N - 50 Ohm","Feed through connector"],"price":310000,"weight":250,"compare_at_price":277500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382495927,"title":"N - 50 Ohm \/ SMA \/ Feed through connector","option1":"N - 50 Ohm","option2":"SMA","option3":"Feed through connector","sku":"LNAS10NS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ SMA \/ Feed through connector","public_title":"N - 50 Ohm \/ SMA \/ Feed through connector","options":["N - 50 Ohm","SMA","Feed through connector"],"price":310000,"weight":250,"compare_at_price":277500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382528695,"title":"SMA \/ F - 75 Ohm \/ Feed through connector","option1":"SMA","option2":"F - 75 Ohm","option3":"Feed through connector","sku":"LNAS10SF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ F - 75 Ohm \/ Feed through connector","public_title":"SMA \/ F - 75 Ohm \/ Feed through connector","options":["SMA","F - 75 Ohm","Feed through connector"],"price":310000,"weight":250,"compare_at_price":277500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382561463,"title":"SMA \/ N - 50 Ohm \/ Feed through connector","option1":"SMA","option2":"N - 50 Ohm","option3":"Feed through connector","sku":"LNAS10SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ N - 50 Ohm \/ Feed through connector","public_title":"SMA \/ N - 50 Ohm \/ Feed through connector","options":["SMA","N - 50 Ohm","Feed through connector"],"price":310000,"weight":250,"compare_at_price":277500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382594231,"title":"SMA \/ SMA \/ Feed through connector","option1":"SMA","option2":"SMA","option3":"Feed through connector","sku":"LNAS10SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ SMA \/ Feed through connector","public_title":"SMA \/ SMA \/ Feed through connector","options":["SMA","SMA","Feed through connector"],"price":310000,"weight":250,"compare_at_price":277500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961122914671,"title":"N - 50 Ohm \/ F - 75 Ohm \/ Output connector","option1":"N - 50 Ohm","option2":"F - 75 Ohm","option3":"Output connector","sku":"LNAS10NFO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ F - 75 Ohm \/ Output connector","public_title":"N - 50 Ohm \/ F - 75 Ohm \/ Output connector","options":["N - 50 Ohm","F - 75 Ohm","Output connector"],"price":310000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961122947439,"title":"N - 50 Ohm \/ N - 50 Ohm \/ Output connector","option1":"N - 50 Ohm","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAS10NNO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ N - 50 Ohm \/ Output connector","public_title":"N - 50 Ohm \/ N - 50 Ohm \/ Output connector","options":["N - 50 Ohm","N - 50 Ohm","Output connector"],"price":310000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961122980207,"title":"N - 50 Ohm \/ SMA \/ Output connector","option1":"N - 50 Ohm","option2":"SMA","option3":"Output connector","sku":"LNAS10NSO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ SMA \/ Output connector","public_title":"N - 50 Ohm \/ SMA \/ Output connector","options":["N - 50 Ohm","SMA","Output connector"],"price":310000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123012975,"title":"SMA \/ F - 75 Ohm \/ Output connector","option1":"SMA","option2":"F - 75 Ohm","option3":"Output connector","sku":"LNAS10SFO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ F - 75 Ohm \/ Output connector","public_title":"SMA \/ F - 75 Ohm \/ Output connector","options":["SMA","F - 75 Ohm","Output connector"],"price":310000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123045743,"title":"SMA \/ N - 50 Ohm \/ Output connector","option1":"SMA","option2":"N - 50 Ohm","option3":"Output connector","sku":"LNAS10SNO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ N - 50 Ohm \/ Output connector","public_title":"SMA \/ N - 50 Ohm \/ Output connector","options":["SMA","N - 50 Ohm","Output connector"],"price":310000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123078511,"title":"SMA \/ SMA \/ Output connector","option1":"SMA","option2":"SMA","option3":"Output connector","sku":"LNAS10SSO","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ SMA \/ Output connector","public_title":"SMA \/ SMA \/ Output connector","options":["SMA","SMA","Output connector"],"price":310000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123111279,"title":"N - 50 Ohm \/ F - 75 Ohm \/ Separated SMA connector","option1":"N - 50 Ohm","option2":"F - 75 Ohm","option3":"Separated SMA connector","sku":"LNAS10NFS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ F - 75 Ohm \/ Separated SMA connector","public_title":"N - 50 Ohm \/ F - 75 Ohm \/ Separated SMA connector","options":["N - 50 Ohm","F - 75 Ohm","Separated SMA connector"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123144047,"title":"N - 50 Ohm \/ N - 50 Ohm \/ Separated SMA connector","option1":"N - 50 Ohm","option2":"N - 50 Ohm","option3":"Separated SMA connector","sku":"LNAS10NNS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ N - 50 Ohm \/ Separated SMA connector","public_title":"N - 50 Ohm \/ N - 50 Ohm \/ Separated SMA connector","options":["N - 50 Ohm","N - 50 Ohm","Separated SMA connector"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123176815,"title":"N - 50 Ohm \/ SMA \/ Separated SMA connector","option1":"N - 50 Ohm","option2":"SMA","option3":"Separated SMA connector","sku":"LNAS10NSS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ SMA \/ Separated SMA connector","public_title":"N - 50 Ohm \/ SMA \/ Separated SMA connector","options":["N - 50 Ohm","SMA","Separated SMA connector"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123209583,"title":"SMA \/ F - 75 Ohm \/ Separated SMA connector","option1":"SMA","option2":"F - 75 Ohm","option3":"Separated SMA connector","sku":"LNAS10SFS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ F - 75 Ohm \/ Separated SMA connector","public_title":"SMA \/ F - 75 Ohm \/ Separated SMA connector","options":["SMA","F - 75 Ohm","Separated SMA connector"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123242351,"title":"SMA \/ N - 50 Ohm \/ Separated SMA connector","option1":"SMA","option2":"N - 50 Ohm","option3":"Separated SMA connector","sku":"LNAS10SNS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ N - 50 Ohm \/ Separated SMA connector","public_title":"SMA \/ N - 50 Ohm \/ Separated SMA connector","options":["SMA","N - 50 Ohm","Separated SMA connector"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123275119,"title":"SMA \/ SMA \/ Separated SMA connector","option1":"SMA","option2":"SMA","option3":"Separated SMA connector","sku":"LNAS10SSS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ SMA \/ Separated SMA connector","public_title":"SMA \/ SMA \/ Separated SMA connector","options":["SMA","SMA","Separated SMA connector"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123307887,"title":"N - 50 Ohm \/ F - 75 Ohm \/ MS3112E8-4P","option1":"N - 50 Ohm","option2":"F - 75 Ohm","option3":"MS3112E8-4P","sku":"LNAS10NFM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ F - 75 Ohm \/ MS3112E8-4P","public_title":"N - 50 Ohm \/ F - 75 Ohm \/ MS3112E8-4P","options":["N - 50 Ohm","F - 75 Ohm","MS3112E8-4P"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123340655,"title":"N - 50 Ohm \/ N - 50 Ohm \/ MS3112E8-4P","option1":"N - 50 Ohm","option2":"N - 50 Ohm","option3":"MS3112E8-4P","sku":"LNAS10NNM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ N - 50 Ohm \/ MS3112E8-4P","public_title":"N - 50 Ohm \/ N - 50 Ohm \/ MS3112E8-4P","options":["N - 50 Ohm","N - 50 Ohm","MS3112E8-4P"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123373423,"title":"N - 50 Ohm \/ SMA \/ MS3112E8-4P","option1":"N - 50 Ohm","option2":"SMA","option3":"MS3112E8-4P","sku":"LNAS10NSM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - N - 50 Ohm \/ SMA \/ MS3112E8-4P","public_title":"N - 50 Ohm \/ SMA \/ MS3112E8-4P","options":["N - 50 Ohm","SMA","MS3112E8-4P"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123406191,"title":"SMA \/ F - 75 Ohm \/ MS3112E8-4P","option1":"SMA","option2":"F - 75 Ohm","option3":"MS3112E8-4P","sku":"LNAS10SFM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ F - 75 Ohm \/ MS3112E8-4P","public_title":"SMA \/ F - 75 Ohm \/ MS3112E8-4P","options":["SMA","F - 75 Ohm","MS3112E8-4P"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123438959,"title":"SMA \/ N - 50 Ohm \/ MS3112E8-4P","option1":"SMA","option2":"N - 50 Ohm","option3":"MS3112E8-4P","sku":"LNAS10SNM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ N - 50 Ohm \/ MS3112E8-4P","public_title":"SMA \/ N - 50 Ohm \/ MS3112E8-4P","options":["SMA","N - 50 Ohm","MS3112E8-4P"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51961123471727,"title":"SMA \/ SMA \/ MS3112E8-4P","option1":"SMA","option2":"SMA","option3":"MS3112E8-4P","sku":"LNAS10SSM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band S-Band LNA - SMA \/ SMA \/ MS3112E8-4P","public_title":"SMA \/ SMA \/ MS3112E8-4P","options":["SMA","SMA","MS3112E8-4P"],"price":324000,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	S-Band
input frequency band 1	2100 - 2500 MHz
noise figure	45K max.
Product Revision	C

RF SPECIFICATIONS
conversion gain max	65 dB
conversion gain min	50 dB
conversion gain typ	60 dB
Gain Flatness	2 dB p-p
gain ripple (at per 36MHz)	1 dB p-p
input VSWR	2.0 : 1 max.
output P1dB	+ 10 dBm
output VSWR	2.0 : 1 max.

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
input power	Feed through connector
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
RF input connector	N - 50 Ohm

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 65
temperature operational	-40°C to +60°C

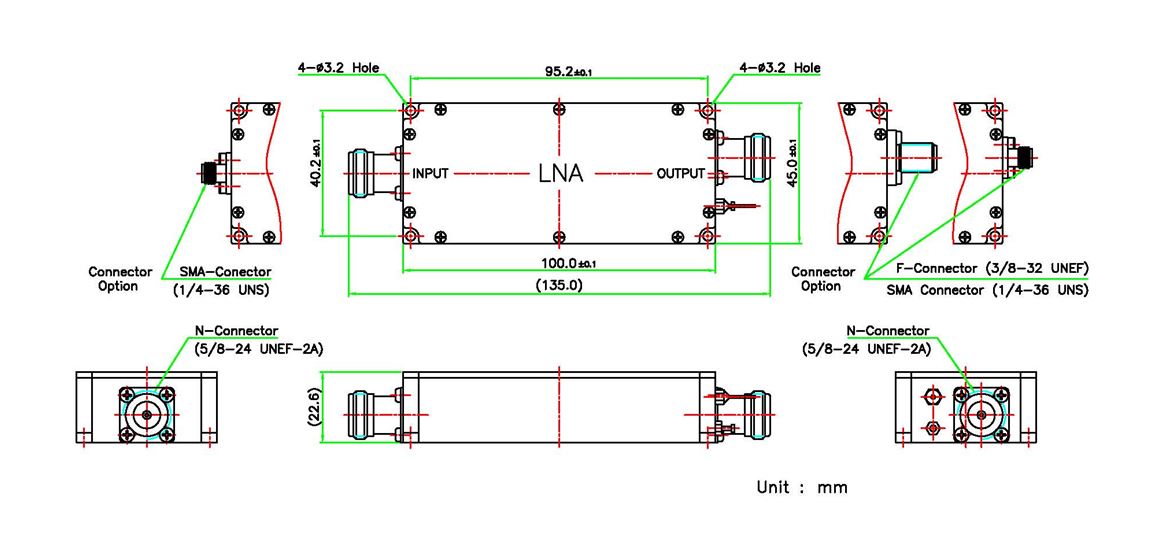

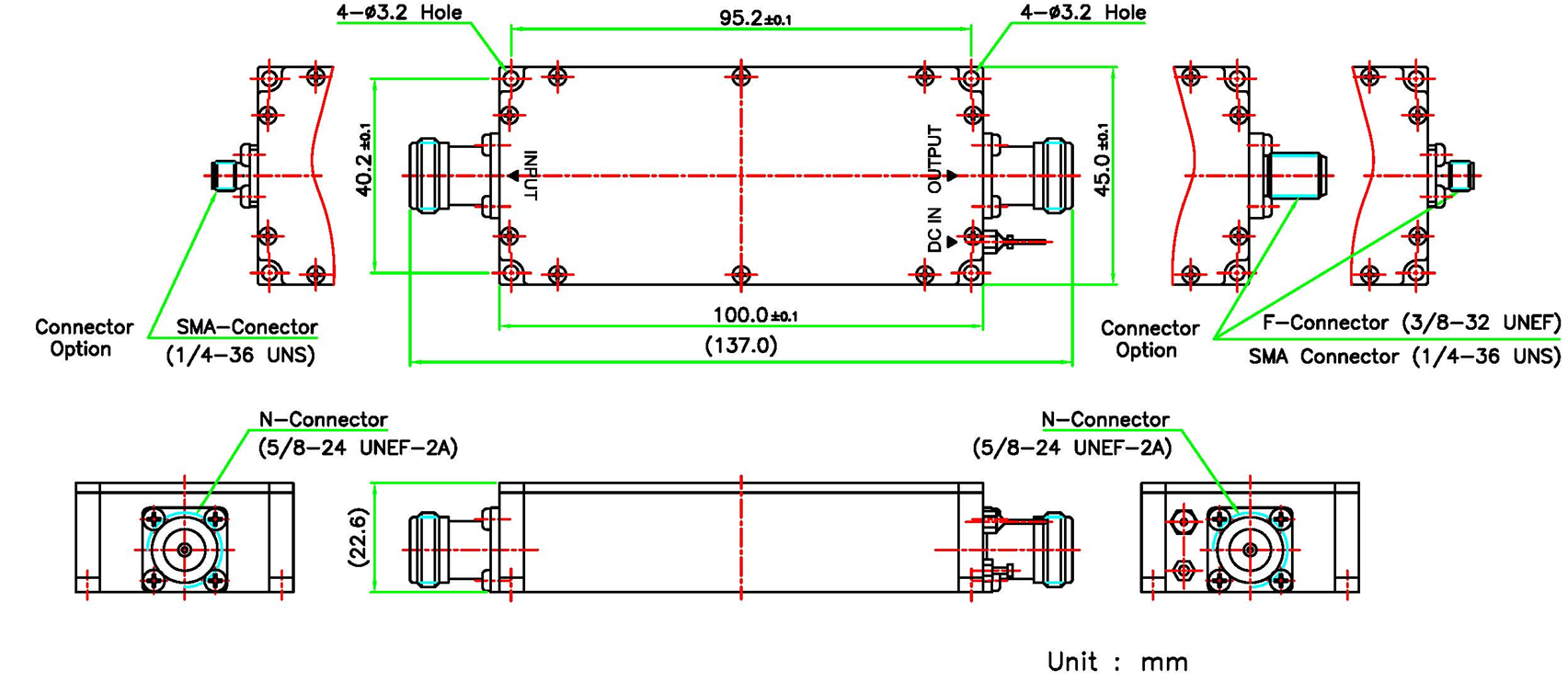

PHYSICAL SPECIFICATIONS
product height	100.0 mm
product length	22.6 mm
product weight	0.25 kg
product width	45 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	190 x 115 x 75 mm
Unit Package Weight	0.25 kg
Total Aluminium Content	0.178 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 0.445
