LNA-100121

S-Band LNA DC Power via Separated SMA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band S-Band
input frequency band 1 2200 - 2300 MHz
Product Revision A
RF SPECIFICATIONS
Gain Flatness ±0.6 dB max.
input VSWR 1.5 : 1 max.
noise temperature 50 K max.
output P1dB + 5 dBm
output VSWR 1.5 : 1 max.
Out of band rejection

15 dB min at <2120 MHz

15 dB min at >2400 MHz
ELECTRICAL SPECIFICATIONS
power requirements +11 to +24V DC
Required current 250 mA max.
INTERFACE SPECIFICATIONS
Power supply connector Separated SMA connector
RF input connector N - 50 Ohm
RF output connector N - 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational 0 to +60°C

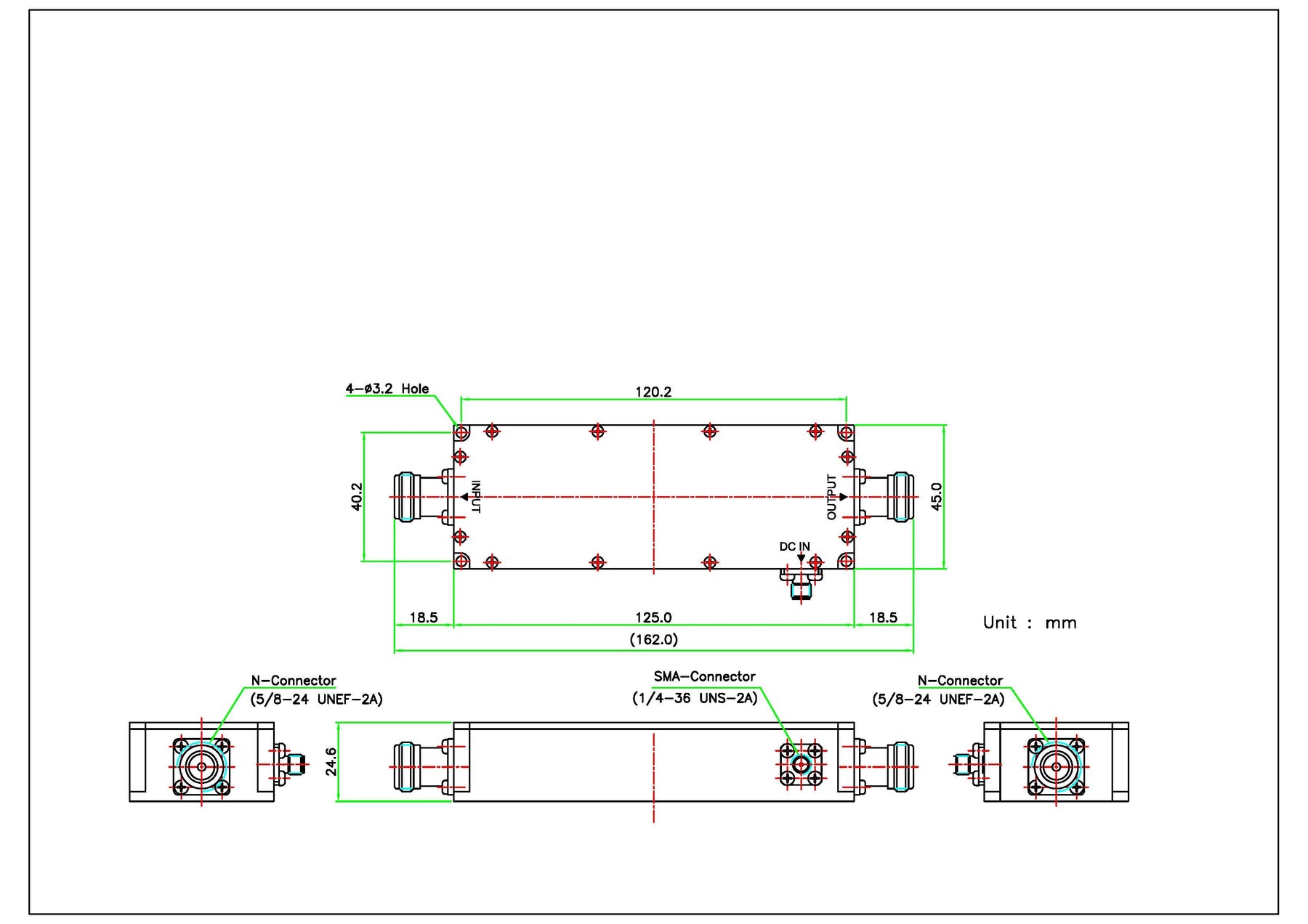

PHYSICAL SPECIFICATIONS
product height 24.6 mm
product length 162.0 mm
product weight 0.3 kg
product width 45.0 mm
