Name: Single-Band Wide-Band LNA
Brand: Norsat International Inc.
SKU: LNAW10NN
Price: 3223.00 USD
Availability: InStock

LNAW10NN

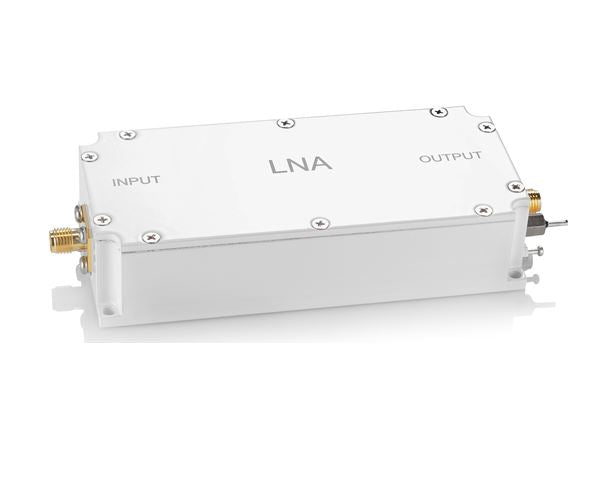

Single-Band Wide-Band LNA

LNA Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":42754382626999,"title":"10: 1000 - 6000 MHz \/ N - 50 Ohm \/ N - 50 Ohm","option1":"10: 1000 - 6000 MHz","option2":"N - 50 Ohm","option3":"N - 50 Ohm","sku":"LNAW10NN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Wide-Band LNA - 10: 1000 - 6000 MHz \/ N - 50 Ohm \/ N - 50 Ohm","public_title":"10: 1000 - 6000 MHz \/ N - 50 Ohm \/ N - 50 Ohm","options":["10: 1000 - 6000 MHz","N - 50 Ohm","N - 50 Ohm"],"price":322300,"weight":250,"compare_at_price":290000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382659767,"title":"10: 1000 - 6000 MHz \/ N - 50 Ohm \/ SMA","option1":"10: 1000 - 6000 MHz","option2":"N - 50 Ohm","option3":"SMA","sku":"LNAW10NS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Wide-Band LNA - 10: 1000 - 6000 MHz \/ N - 50 Ohm \/ SMA","public_title":"10: 1000 - 6000 MHz \/ N - 50 Ohm \/ SMA","options":["10: 1000 - 6000 MHz","N - 50 Ohm","SMA"],"price":322300,"weight":250,"compare_at_price":290000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382692535,"title":"10: 1000 - 6000 MHz \/ SMA \/ N - 50 Ohm","option1":"10: 1000 - 6000 MHz","option2":"SMA","option3":"N - 50 Ohm","sku":"LNAW10SN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Wide-Band LNA - 10: 1000 - 6000 MHz \/ SMA \/ N - 50 Ohm","public_title":"10: 1000 - 6000 MHz \/ SMA \/ N - 50 Ohm","options":["10: 1000 - 6000 MHz","SMA","N - 50 Ohm"],"price":322300,"weight":250,"compare_at_price":290000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754382725303,"title":"10: 1000 - 6000 MHz \/ SMA \/ SMA","option1":"10: 1000 - 6000 MHz","option2":"SMA","option3":"SMA","sku":"LNAW10SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Single-Band Wide-Band LNA - 10: 1000 - 6000 MHz \/ SMA \/ SMA","public_title":"10: 1000 - 6000 MHz \/ SMA \/ SMA","options":["10: 1000 - 6000 MHz","SMA","SMA"],"price":322300,"weight":250,"compare_at_price":290000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Wide-Band
input frequency band 1	1000 - 6000 MHz
noise figure	1.8 dB
Product Revision	B

RF SPECIFICATIONS
conversion gain max	45 dB
conversion gain min	40 dB
Gain Flatness	5 dB p-p
input VSWR	2.5 : 1
output P1dB	+ 10 dBm
output VSWR	2.5 : 1

ELECTRICAL SPECIFICATIONS
input power	Pin through connector
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
RF input connector	N - 50 Ohm

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40°C to +60°C

PHYSICAL SPECIFICATIONS
product height	100.0 mm
product length	22.6 mm
product weight	0.25 kg
product width	45 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	190 x 115 x 75 mm
Unit Package Weight	0.25 kg
Total Aluminium Content	0.178 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 0.445
