ACS240KU-A

Single Speed Integrated Antenna Controller for 2.4m Ku-Band Earth Station

Antenna Control Systems

$20,740.74
/
Quantity Available: 0
Next Availability: Not Applicable
Next Availability Lead Time: Contact Sales
Ex Works: China

View Resellers Quantity

(Scroll to see specifications and documents)

Only 0 items in stock!



Antenna control systems are supplied only for Motorized Earth Station Antennas. Please select the "Motorized" drive mode for Recommended Combinations below. Manual Earth Stations do NOT require a control system.

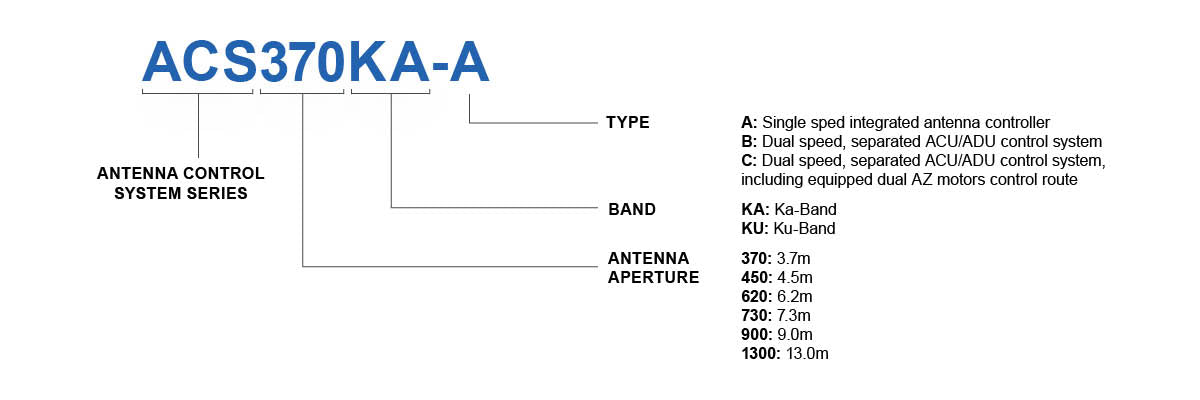

To select the correct Anchor Earth Station Antenna model for the control system, please refer to the corresponding antenna aperture, band, and drive mode.
For example, ACS240KU-A is compatible with ESER240KU2B.

KEY SPECIFICATIONS
band Ku-Band
drive speed Constant Speed
structural form Single-speed Integrated
ANTENNA SPECIFICATIONS
angle display resolution 0.01°
angle display range 0 - 360°
Antenna Aperture 2.4m
encoder accuracy AZ 0.04° (optional: 0.01°)
encoder accuracy EL 0.04° (optional: 0.01°)
encoder accuracy POL 0.08° (optional: 0.04°)
preset satellite 10 satellites
tracking accuracy 1/10 reception beamwidth
type Single speed integrated antenna controller
ELECTRICAL SPECIFICATIONS
power consumption 3000W
power supply AC 380V±10%, 50/60Hz
INTERFACE SPECIFICATIONS
remote interface RJ-45 network
ENVIRONMENTAL SPECIFICATIONS
safety 1.Soft and hard limits provide guarantee for the safe operation of the antenna; 2.The cables are all flame retardant series cables -10 - 50℃; (optional low temperature cables -30 - 90℃
temperature operational 0 - 40 ℃
temperature operational cable -10 - 60℃; low-temperature cable: -30 - 90℃
PHYSICAL SPECIFICATIONS

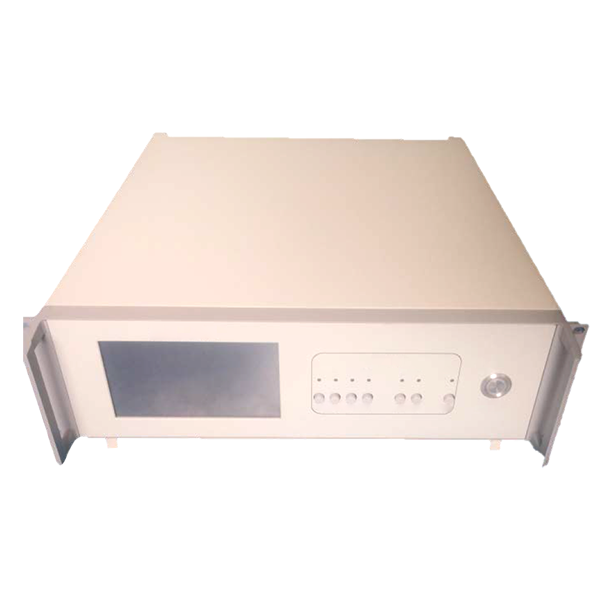

product dimension 19inch/3U

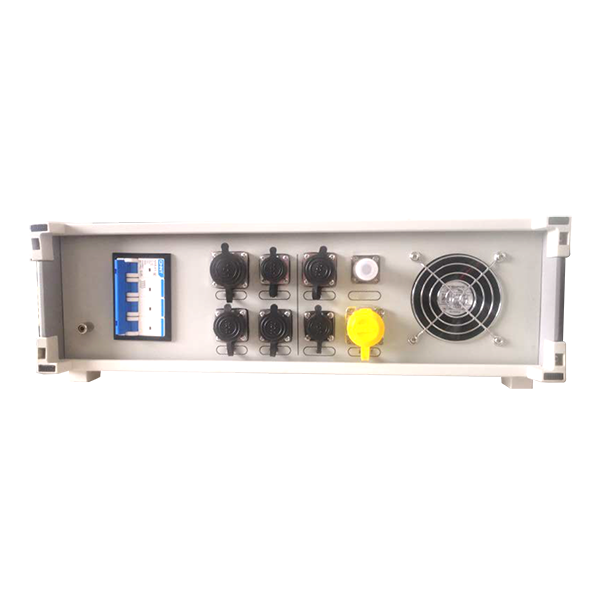

standard configuration Antenna control unit, antenna drive unit, beacon tracking receiving unit, photoelectric encoder, flame retardant cable and connectors
