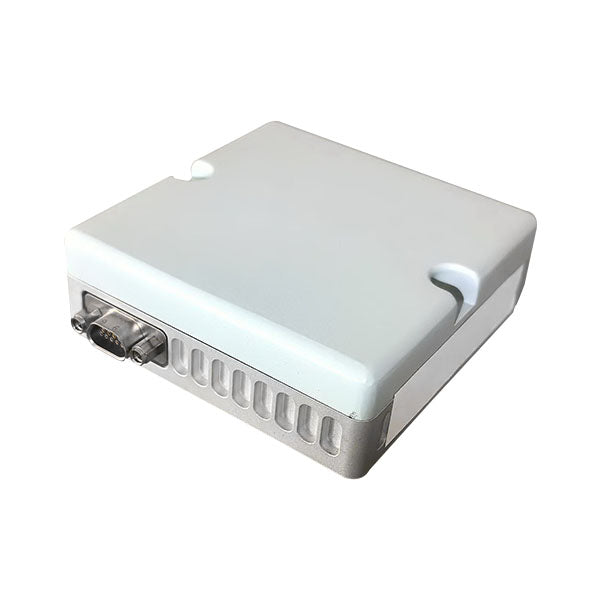

ATJ-101

4-Channel Small Anti-Jamming Terminal

Anti-jamming Terminal

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Serving the fields of reliable navigation for small drones, protecting the platform from various unintentional interference and malicious attacks, significantly improving the security of PNT information. Used for Drones, and UAV and so on.

KEY SPECIFICATIONS
anti deception function Equipped
anti interference airspace azimuth 0° to 360°
anti interference airspace elevation -90° to 90°
anti interference elements Supports 4-channel single frequency anti-interference (main operating frequency points: B1, L1, and E1)
interference power detection Equipped; supports calibration and joint testing
interference types Deception, band-limited Gaussian white interference, spread spectrum matching interference, pulse interference, frequency sweep interference, mixed interference
multidirectional interference resistance ≥ 70 dBc
secondary development support Supports spectrum monitoring, histogram analysis
unidirectional interference resistance ≥ 90 dBc
RF SPECIFICATIONS
positioning accuracy ≤ 10m
speed accuracy ≤ 0.2m/s
ELECTRICAL SPECIFICATIONS
cold start time ≤ 60s(Including self-checking time)

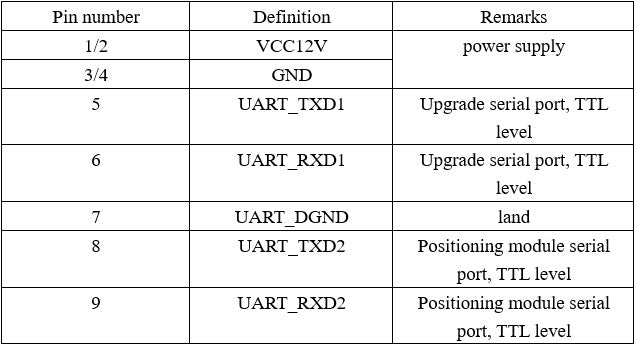

data interface pin definition The positioning module model is UBLOX M1050 module, and it is an international standard.
power consumption 7W (at room temperature, including positioning module)
power supply XT30 connector; input voltage 12V (max 15V)
recapture time ≤ 6s
INTERFACE SPECIFICATIONS
positioning data TTL level output (NEMA0183 protocol)

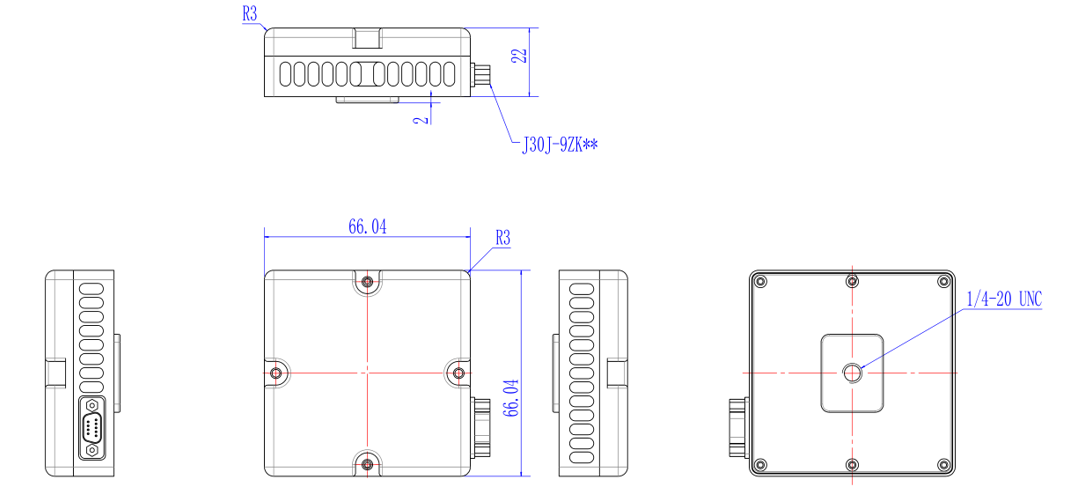

PHYSICAL SPECIFICATIONS
physical interface description DuPont cable or SH1.0 plug form
product height 22 mm
product length 67 mm
product weight 0.2 kg
product width 67 mm
