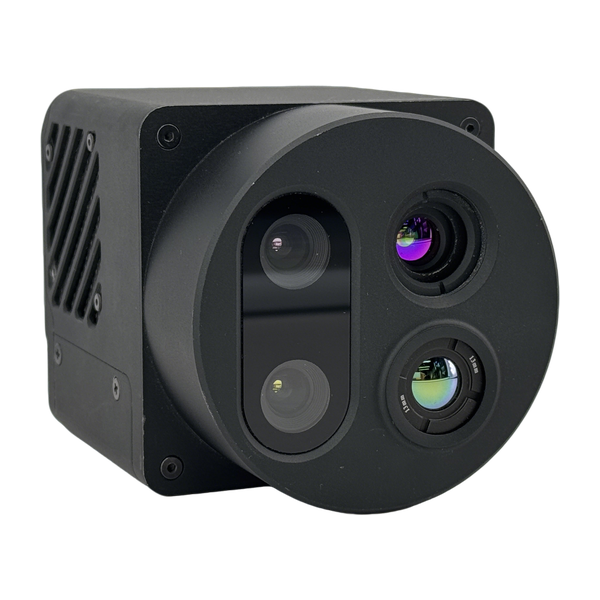

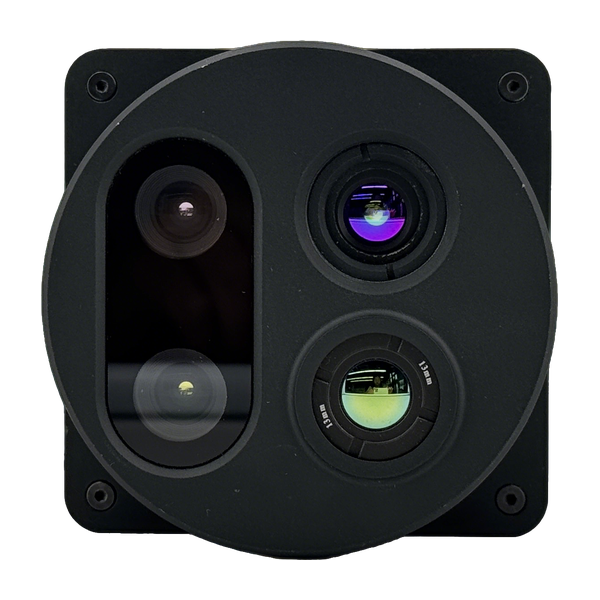

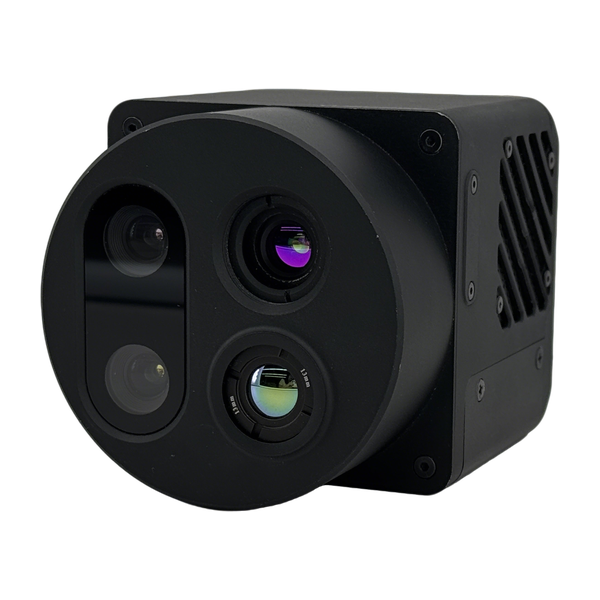

Tri-Sensor Multispectral + SWIR + LWIR Camera
Tri-Sensor Multispectral + SWIR + LWIR Camera
Tri-Sensor Multispectral + SWIR + LWIR Camera

TC5

Tri-Sensor Multispectral + SWIR + LWIR Camera

ACCESSORIES

Regular price

Please sign in or create an account to view the price and availability.


(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band configuration 5 MS + 1 SWIR + 1 LWIR
LWIR camera bit depth 12 bit
LWIR camera detector type Uncooled VOx
LWIR camera effective pixel 0.3 Mpx
LWIR camera FOV horizontal 32.91 deg
LWIR camera FOV vertical 26.59 deg
LWIR camera GSD 11 cm @ h120m
LWIR camera image format 16bit TIFF (Temperature Data)
LWIR camera image size coverage 71 m x 57 m @ h120m
multispectral camera bit depth 12 bit
multispectral camera detector type CMOS
multispectral camera effective pixel 1.3 Mpx
multispectral camera FOV horizontal 36.76 deg
multispectral camera FOV vertical 31.33 deg
multispectral camera GSD 12.5 cm @ h120m
multispectral camera image format 16bit Process TIFF
multispectral camera image size coverage 80 m x 67 m @ h120m
multispectral camera scanning mode Global shutter
multispectral camera sensor size 1/4"
photo frequency 0.5 Hz
spectral band MS: 450-840nm; SWIR: 900-1700nm; LWIR: 8-14um
SWIR camera bit depth 12 bit
SWIR camera detector type InGaAs
SWIR camera effective pixel 0.3 Mpx
SWIR camera FOV horizontal 36.32 deg
SWIR camera FOV vertical 29.15 deg
SWIR camera GSD 12 cm @ h120m
SWIR camera image format 16bit TIFF
SWIR camera image size coverage 77 m x 62 m @ h120m
SWIR camera scanning mode Global shutter
SWIR camera sensor size 1/4"
trigger mode External, Timed, Overlap rate, Cascade trigger
Product Revision A
ELECTRICAL SPECIFICATIONS
operating voltage 9-26 VDC (typical 12 VDC)
power consumption 15W typical, 25W peak
INTERFACE SPECIFICATIONS
control method WIFI (WEB interface) / Ethernet / UART
storage medium Default 64GB micro SD card, up to 128 GB, UHS-I Speed Class 3 (U3)
video format MP4
ENVIRONMENTAL SPECIFICATIONS
operating temperature -10 to +45 deg C
operating wind speed >= 1 m/s
temperature storage -30 to +70 deg C
PHYSICAL SPECIFICATIONS
installation interface 8 x M3
product height 108.2 mm
product length 79 mm
product weight 0.527 kg
product width 79 mm
