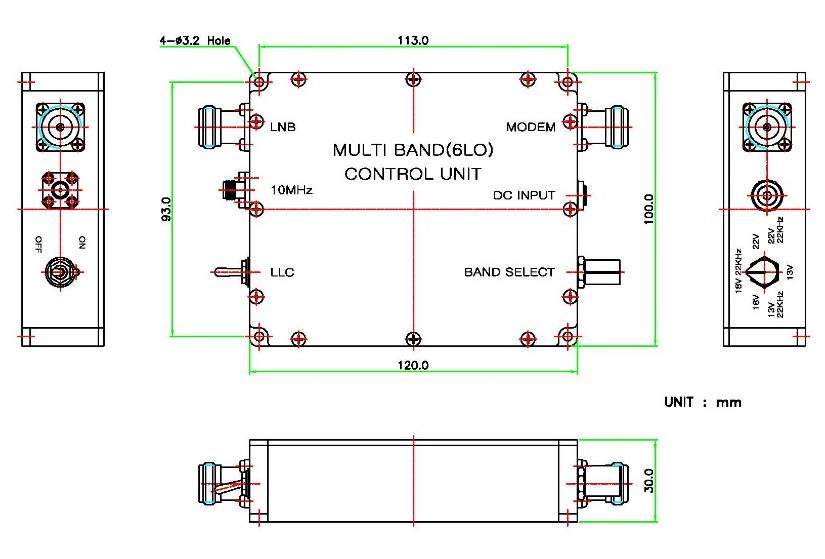

ULC-2S-50-810025
6-BAND LNB CONTROLLER-SWITCH CONTROL
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| Band 1 | 13 VDC |
| Band 2 | 13 VDC 22kHz |
| Band 3 | 18 VDC |
| Band 4 | 18VDC, 22kHz |
| Band 5 | 22 VDC |
| Band 6 | 22VDC 22kHz |
| Input Voltage Range | 23 – 25 VDC Power Supply Included |
| LLC Line Length Compensation | +1 VDC (Switch) |
| Required Current | 500 mA |
| Tone Amplitude | 0.55 – 0.90 Vpp |
| tone frequency | 20 - 24 KHz |
| Product Revision | A |
| INTERFACE SPECIFICATIONS | |
|---|---|
| External 10 MHz Port | SMA Female |
| Input Interface | N- Female Connector |
| Output Interface | N- Female Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40 to +60°C |
