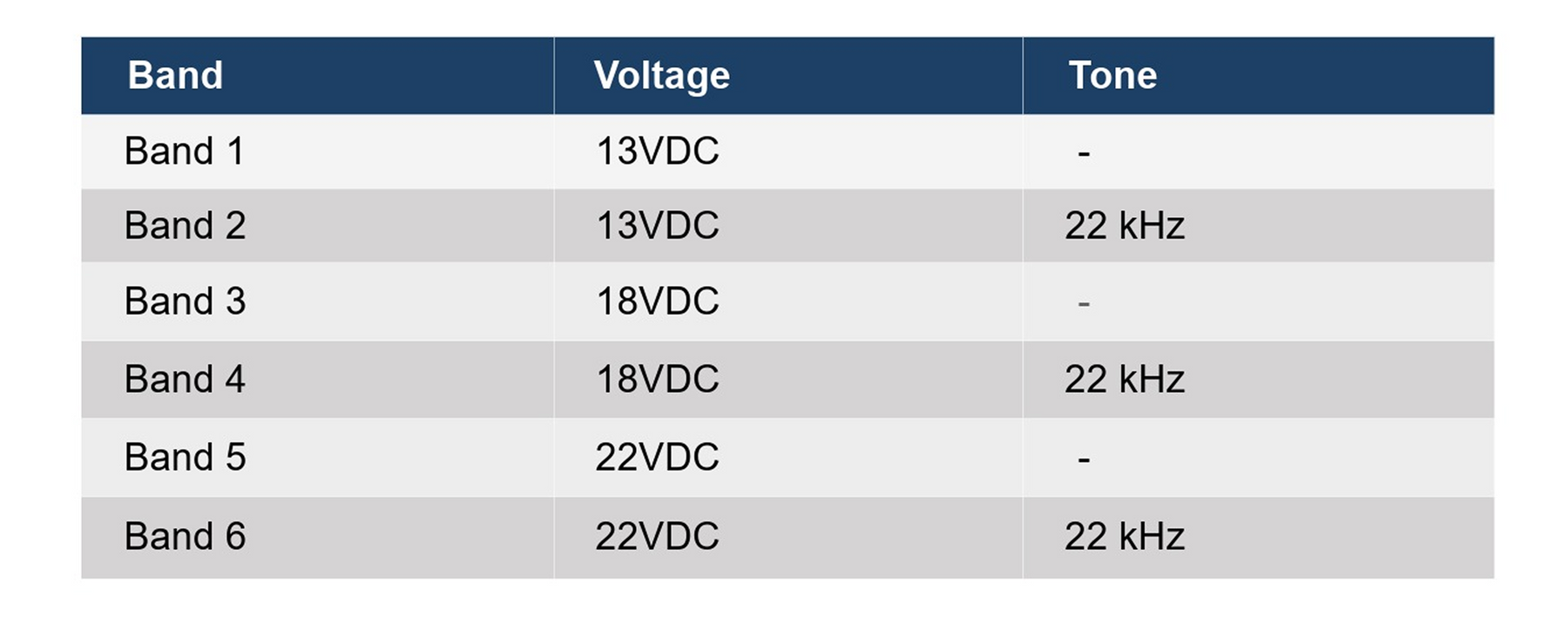

KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | No reference |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | F-Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 75 Ohm F Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | 10MHz internal |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 1100 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | F-Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 75 Ohm F Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 130 mm |
product weight | 0.85 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | 10MHz injection port with SMA Female Connector |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | F-Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 75 Ohm F Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | No reference |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | N-Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm N Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | 10MHz internal |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 1100 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | N-Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm N Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 130 mm |
product weight | 0.85 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | 10MHz injection port with SMA Female Connector |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | N-Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm N Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | No reference |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | SMA Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | 10MHz internal |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 1100 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | SMA Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 130 mm |
product weight | 0.85 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Switch Control & Line Length Compensation with Switch |
reference signal | 10MHz injection port with SMA Female Connector |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | SMA Connector |
control interface | Switch Control & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | No reference |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | F-Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 75 Ohm F Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | 10MHz internal |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 1100 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | F-Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 75 Ohm F Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 130 mm |
product weight | 0.85 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | 10MHz injection port with SMA Female Connector |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | F-Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 75 Ohm F Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | No reference |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | N-Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm N Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | 10MHz internal |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 1100 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | N-Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm N Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 130 mm |
product weight | 0.85 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | 10MHz injection port with SMA Female Connector |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | N-Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm N Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | No reference |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | SMA Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | 10MHz internal |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 1100 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | SMA Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 130 mm |
product weight | 0.85 kg |
product width | 120 mm |
KEY SPECIFICATIONS | |
---|---|
control signal | Control Interface Cable & Line Length Compensation with Switch |
reference signal | 10MHz injection port with SMA Female Connector |
tone amplitude | 0.55 ~ 0.9 vpp |
tone frequency | 20 ~ 24 kHz |
Product Revision | B |
ELECTRICAL SPECIFICATIONS | |
---|---|
current consumption | 500 mA max. |
output current | 500 mA max. |
power requirements | +23 to +25 V DC |
INTERFACE SPECIFICATIONS | |
---|---|
connector | SMA Connector |
control interface | Control Interface Cable & Line Length Compensation with Switch |
LLC line length compensation | +1 VDC (Switch) |
RF input connector | 50 Ohm SMA Connector |
ENVIRONMENTAL SPECIFICATIONS | |
---|---|
IP rating | IP 65 |
temperature operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |
---|---|
product height | 30 mm |
product length | 100 mm |
product weight | 0.67 kg |
product width | 120 mm |
Please contact us to request any additional documents you may need.
INFORMATION | |
---|---|
HS Code | 8517690000 |
Country of Origin | Made in Korea |
Ex Works | Richmond, BC, Canada |
ECCN Number | EAR99 |
Warranty | 3 years |
Unit Package Dimensions | - |
Unit Package Weight | - |
![]() |
![]() |
![]() |
