Name: Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straigh
Brand: Norsat International Inc.
SKU: CUC139TNCSMTNCSM-005
Price: 384.00 USD
Availability: InStock

Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector

CUC139TNCSMTNCSM-005

Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021933375855,"title":"TNC Straight Male \/ 5m","option1":"TNC Straight Male","option2":"5m","option3":null,"sku":"CUC139TNCSMTNCSM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector - TNC Straight Male \/ 5m","public_title":"TNC Straight Male \/ 5m","options":["TNC Straight Male","5m"],"price":38400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021933408623,"title":"TNC Straight Male \/ 10m","option1":"TNC Straight Male","option2":"10m","option3":null,"sku":"CUC139TNCSMTNCSM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector - TNC Straight Male \/ 10m","public_title":"TNC Straight Male \/ 10m","options":["TNC Straight Male","10m"],"price":69600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021933441391,"title":"TNC Straight Male \/ 30m","option1":"TNC Straight Male","option2":"30m","option3":null,"sku":"CUC139TNCSMTNCSM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector - TNC Straight Male \/ 30m","public_title":"TNC Straight Male \/ 30m","options":["TNC Straight Male","30m"],"price":194600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021933474159,"title":"TNC Straight Male \/ 50m","option1":"TNC Straight Male","option2":"50m","option3":null,"sku":"CUC139TNCSMTNCSM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector - TNC Straight Male \/ 50m","public_title":"TNC Straight Male \/ 50m","options":["TNC Straight Male","50m"],"price":319600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021933506927,"title":"TNC Straight Male \/ 100m","option1":"TNC Straight Male","option2":"100m","option3":null,"sku":"CUC139TNCSMTNCSM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector - TNC Straight Male \/ 100m","public_title":"TNC Straight Male \/ 100m","options":["TNC Straight Male","100m"],"price":632100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021933539695,"title":"TNC Straight Male \/ 200m","option1":"TNC Straight Male","option2":"200m","option3":null,"sku":"CUC139TNCSMTNCSM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector - TNC Straight Male \/ 200m","public_title":"TNC Straight Male \/ 200m","options":["TNC Straight Male","200m"],"price":1257100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-10GHz
jacket size	5mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.03 dB Typ.@10GHz
cable insertion loss	6.95 dB
capacitance	405 pF Max.
phase stability vs flesure	±2° Typ.@10GHz
phase stability vs temprature	1000PPM Typ.
shielding effectiveness	90 dB Min.
VSWR max	1.25:1
VSWR typ	1.20:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	46W max.@10GHz

INTERFACE SPECIFICATIONS
connector 1	TNC Straight Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Brass, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	TNC Straight Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Brass, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

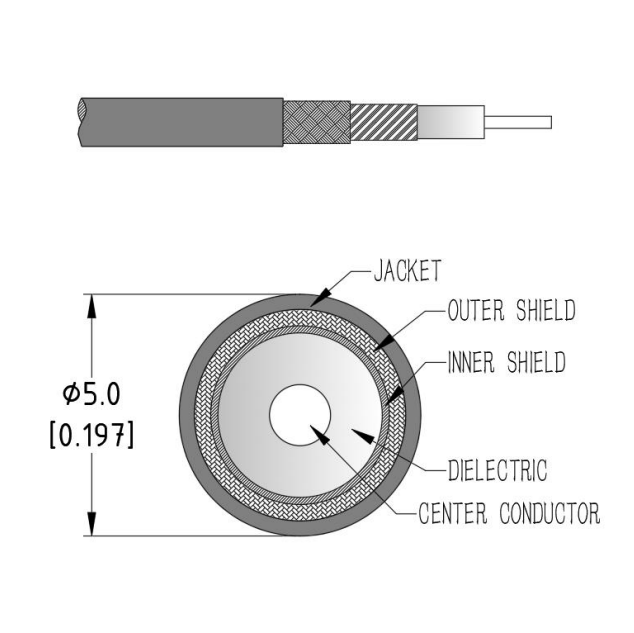

PHYSICAL SPECIFICATIONS
cable diameter	5.0 mm
cable jacket	PUR
min bending life	50000
min bending radius	20 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-10GHz
jacket size	5mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-10GHz
jacket size	5mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-10GHz
jacket size	5mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-10GHz
jacket size	5mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-10GHz
jacket size	5mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A
