Name: Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straig
Brand: Norsat International Inc.
SKU: CUH389292SM292SF-005
Price: 417.00 USD
Availability: InStock

Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector

CUH389292SM292SF-005

Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021931245935,"title":"2.92mm Straight Female \/ 5m","option1":"2.92mm Straight Female","option2":"5m","option3":null,"sku":"CUH389292SM292SF-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Female \/ 5m","public_title":"2.92mm Straight Female \/ 5m","options":["2.92mm Straight Female","5m"],"price":41700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931278703,"title":"2.92mm Straight Female \/ 10m","option1":"2.92mm Straight Female","option2":"10m","option3":null,"sku":"CUH389292SM292SF-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Female \/ 10m","public_title":"2.92mm Straight Female \/ 10m","options":["2.92mm Straight Female","10m"],"price":73000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931311471,"title":"2.92mm Straight Female \/ 30m","option1":"2.92mm Straight Female","option2":"30m","option3":null,"sku":"CUH389292SM292SF-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Female \/ 30m","public_title":"2.92mm Straight Female \/ 30m","options":["2.92mm Straight Female","30m"],"price":198000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931344239,"title":"2.92mm Straight Female \/ 50m","option1":"2.92mm Straight Female","option2":"50m","option3":null,"sku":"CUH389292SM292SF-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Female \/ 50m","public_title":"2.92mm Straight Female \/ 50m","options":["2.92mm Straight Female","50m"],"price":323000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931377007,"title":"2.92mm Straight Female \/ 100m","option1":"2.92mm Straight Female","option2":"100m","option3":null,"sku":"CUH389292SM292SF-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Female \/ 100m","public_title":"2.92mm Straight Female \/ 100m","options":["2.92mm Straight Female","100m"],"price":635500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931409775,"title":"2.92mm Straight Female \/ 200m","option1":"2.92mm Straight Female","option2":"200m","option3":null,"sku":"CUH389292SM292SF-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Female \/ 200m","public_title":"2.92mm Straight Female \/ 200m","options":["2.92mm Straight Female","200m"],"price":1260500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931442543,"title":"2.92mm Straight Male \/ 5m","option1":"2.92mm Straight Male","option2":"5m","option3":null,"sku":"CUH389292SM292SM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Male \/ 5m","public_title":"2.92mm Straight Male \/ 5m","options":["2.92mm Straight Male","5m"],"price":41700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931475311,"title":"2.92mm Straight Male \/ 10m","option1":"2.92mm Straight Male","option2":"10m","option3":null,"sku":"CUH389292SM292SM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Male \/ 10m","public_title":"2.92mm Straight Male \/ 10m","options":["2.92mm Straight Male","10m"],"price":73000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931508079,"title":"2.92mm Straight Male \/ 30m","option1":"2.92mm Straight Male","option2":"30m","option3":null,"sku":"CUH389292SM292SM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Male \/ 30m","public_title":"2.92mm Straight Male \/ 30m","options":["2.92mm Straight Male","30m"],"price":198000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931540847,"title":"2.92mm Straight Male \/ 50m","option1":"2.92mm Straight Male","option2":"50m","option3":null,"sku":"CUH389292SM292SM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Male \/ 50m","public_title":"2.92mm Straight Male \/ 50m","options":["2.92mm Straight Male","50m"],"price":323000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931573615,"title":"2.92mm Straight Male \/ 100m","option1":"2.92mm Straight Male","option2":"100m","option3":null,"sku":"CUH389292SM292SM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Male \/ 100m","public_title":"2.92mm Straight Male \/ 100m","options":["2.92mm Straight Male","100m"],"price":635500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021931606383,"title":"2.92mm Straight Male \/ 200m","option1":"2.92mm Straight Male","option2":"200m","option3":null,"sku":"CUH389292SM292SM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 - 40 GHz - 2.92mm Straight Male Connector - 2.92mm Straight Male \/ 200m","public_title":"2.92mm Straight Male \/ 200m","options":["2.92mm Straight Male","200m"],"price":1260500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-40GHz
jacket size	3.6mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	74% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.1 dB Typ.@40GHz
cable insertion loss	19.45 dB
capacitance	405 pF Max.
phase stability vs flesure	±5° Typ.@40GHz
phase stability vs temprature	1000PPM Typ.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	16W max.@40GHz

INTERFACE SPECIFICATIONS
connector 1	2.92mm Straight Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Beryllium Copper, Gold
connector 1 dielectric type	PEI
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	2.92mm Straight Female
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Beryllium Copper, Gold
connector 2 dielectric type	PEI
connector 2 insertion loss	0.05*Sqrt(f_GHz)

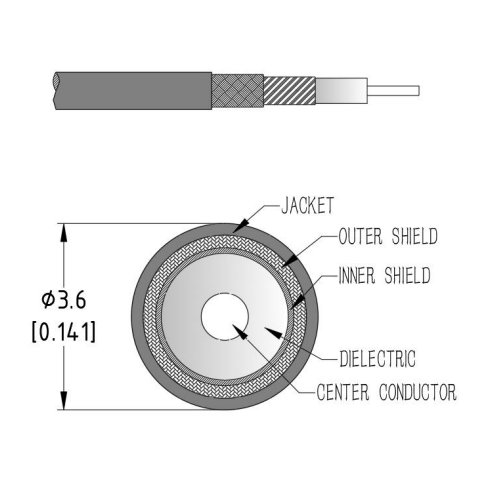

PHYSICAL SPECIFICATIONS
cable diameter	3.6 mm
cable jacket	PUR
min bending life	50000
min bending radius	14 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-40GHz
jacket size	3.6mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	74% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-40GHz
jacket size	3.6mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	74% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-40GHz
jacket size	3.6mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	74% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-40GHz
jacket size	3.6mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	74% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-40GHz
jacket size	3.6mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	74% Typ.
Product Revision	A
