Name: Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male
Brand: Norsat International Inc.
SKU: CUE102NCNRMNCNRM-005
Price: 438.00 USD
Availability: InStock

Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector

CUE102NCNRMNCNRM-005

Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector

COAXIAL CABLE

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

[{"id":52021934883183,"title":"N Right Angle Male \/ 5m","option1":"N Right Angle Male","option2":"5m","option3":null,"sku":"CUE102NCNRMNCNRM-005","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector - N Right Angle Male \/ 5m","public_title":"N Right Angle Male \/ 5m","options":["N Right Angle Male","5m"],"price":43800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021934915951,"title":"N Right Angle Male \/ 10m","option1":"N Right Angle Male","option2":"10m","option3":null,"sku":"CUE102NCNRMNCNRM-010","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector - N Right Angle Male \/ 10m","public_title":"N Right Angle Male \/ 10m","options":["N Right Angle Male","10m"],"price":77100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021934948719,"title":"N Right Angle Male \/ 30m","option1":"N Right Angle Male","option2":"30m","option3":null,"sku":"CUE102NCNRMNCNRM-030","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector - N Right Angle Male \/ 30m","public_title":"N Right Angle Male \/ 30m","options":["N Right Angle Male","30m"],"price":210500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021934981487,"title":"N Right Angle Male \/ 50m","option1":"N Right Angle Male","option2":"50m","option3":null,"sku":"CUE102NCNRMNCNRM-050","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector - N Right Angle Male \/ 50m","public_title":"N Right Angle Male \/ 50m","options":["N Right Angle Male","50m"],"price":343800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021935014255,"title":"N Right Angle Male \/ 100m","option1":"N Right Angle Male","option2":"100m","option3":null,"sku":"CUE102NCNRMNCNRM-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector - N Right Angle Male \/ 100m","public_title":"N Right Angle Male \/ 100m","options":["N Right Angle Male","100m"],"price":677100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52021935047023,"title":"N Right Angle Male \/ 200m","option1":"N Right Angle Male","option2":"200m","option3":null,"sku":"CUE102NCNRMNCNRM-200","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Right Angle Male Connector - N Right Angle Male \/ 200m","public_title":"N Right Angle Male \/ 200m","options":["N Right Angle Male","200m"],"price":1343800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
cable length	5 m
frequency range	DC-18GHz
jacket size	8mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

RF SPECIFICATIONS
amplitude stability vs flexure	±0.05 dB Typ.@18GHz
cable insertion loss	5.1 dB
capacitance	405 pF Max.
phase stability vs flesure	±3° Typ.@18GHz
phase stability vs temprature	1000PPM Max.
shielding effectiveness	90 dB Min.
VSWR max	1.3:1
VSWR typ	1.25:1

ELECTRICAL SPECIFICATIONS
cable RF power cw	254W max.@18GHz

INTERFACE SPECIFICATIONS
connector 1	N Right Angle Male
connector 1 body material and plating	Passivated Stainless Steel
connector 1 contact material and plating	Beryllium Copper, Gold
connector 1 dielectric type	PTFE
connector 1 insertion loss	0.05*Sqrt(f_GHz)
connector 2	N Right Angle Male
connector 2 body material and plating	Passivated Stainless Steel
connector 2 contact material and plating	Beryllium Copper, Gold
connector 2 dielectric type	PTFE
connector 2 insertion loss	0.05*Sqrt(f_GHz)

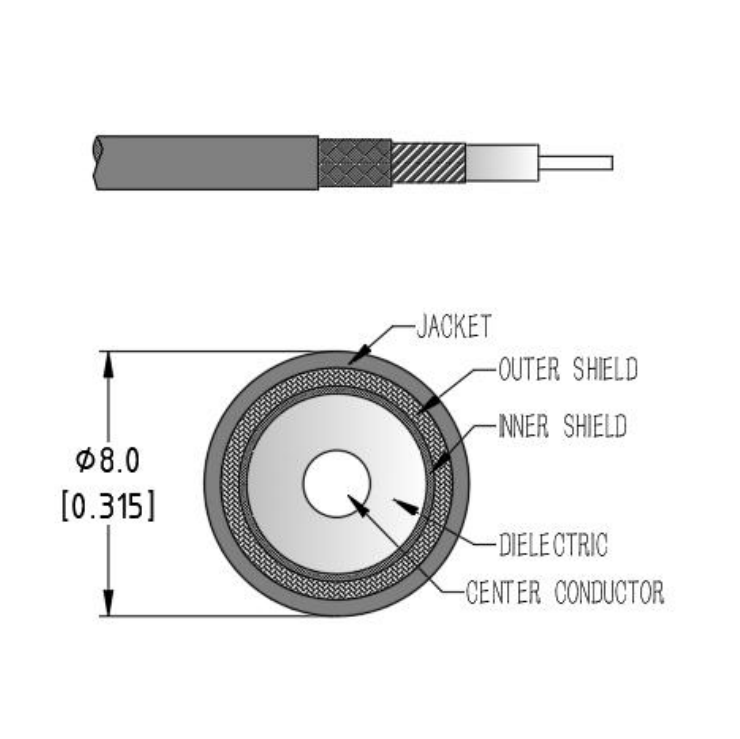

PHYSICAL SPECIFICATIONS
cable diameter	8.0 mm
cable jacket	PUR
min bending life	50000
min bending radius	32 mm

INFORMATION
HS Code	8544200000
Country of Origin	Made in China
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Aluminium Content	-
Aluminium COO	-
Aluminium Total Value	-

KEY SPECIFICATIONS
cable length	10 m
frequency range	DC-18GHz
jacket size	8mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	30 m
frequency range	DC-18GHz
jacket size	8mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	50 m
frequency range	DC-18GHz
jacket size	8mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	100 m
frequency range	DC-18GHz
jacket size	8mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A

KEY SPECIFICATIONS
cable length	200 m
frequency range	DC-18GHz
jacket size	8mm
material flexibility	Ultra-flexible
phase stability	Mechanical
velocity of propagation	76% Typ.
Product Revision	A
