ISO-KU

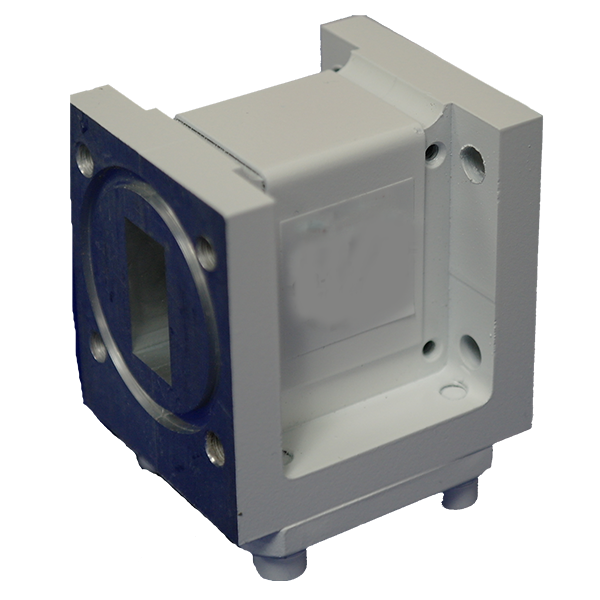

Waveguide Isolator Ku-Band
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Email is required.
Or download now:
Something went wrong. Please try again.
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| input frequency band 1 | 10.70 - 12.75 GHz |
| Product Revision | B |
| RF SPECIFICATIONS | |
|---|---|
| insertion loss | 0.4 dB max. |
| output VSWR | 2.0 : 1 max. |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product weight | 0.113 kg |
Please contact us to request any additional documents you may need.
| INFORMATION | |
|---|---|
| HS Code | 8517690000 |
| Country of Origin | Made in Taiwan |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 3 years |
| Unit Package Dimensions | 118 x 60 x 45 mm |
| Unit Package Weight | 0.113 kg |
| Total Aluminium Content | 0.113 kg |
| Aluminum Country of Smelt and Cast | TW |
| Total Aluminium Value | $ 0.2825 |
Yes
|
No
|
No
|
Norsat's in-house experts produce technical and professional industrial whitepapers.
View our instructional videos to get more information on satellite terminals, components, assembly and software.
Read Norsat's brochures and manuals to learn more about satellite knowledge to product-focused deep dives.
ISO-KU-Spec-Sheet.pdf

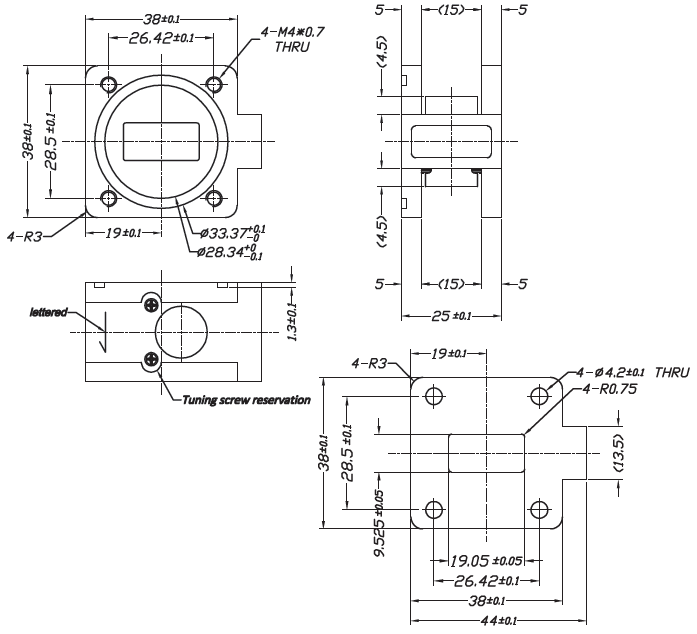

3DModel-ISO-KU.STEP
