WFA035KUA

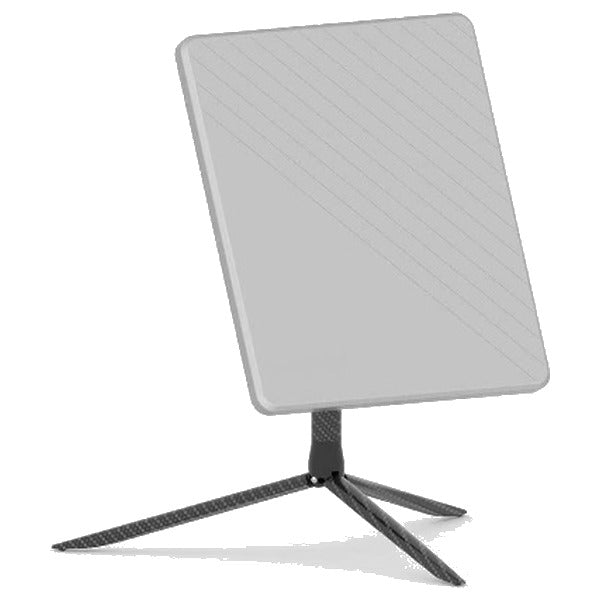

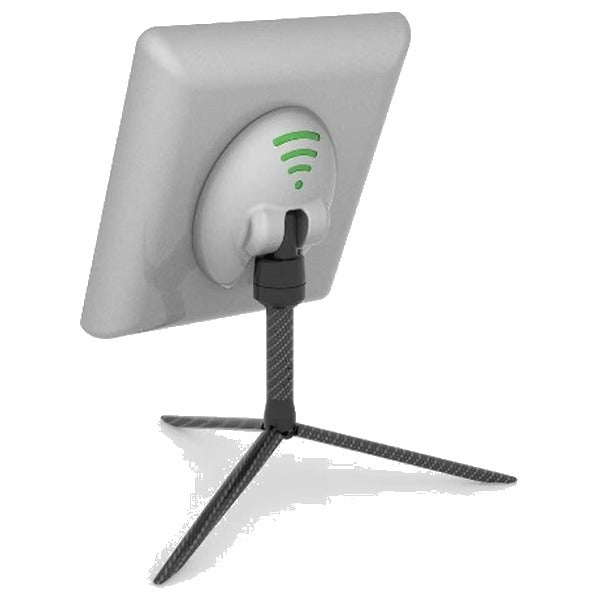

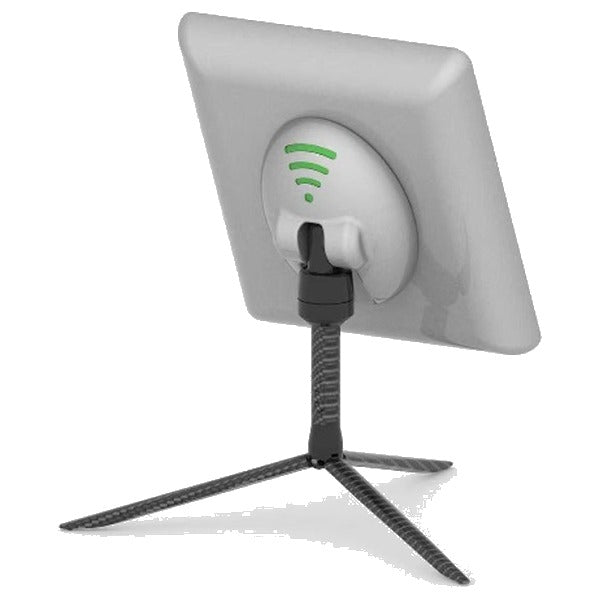

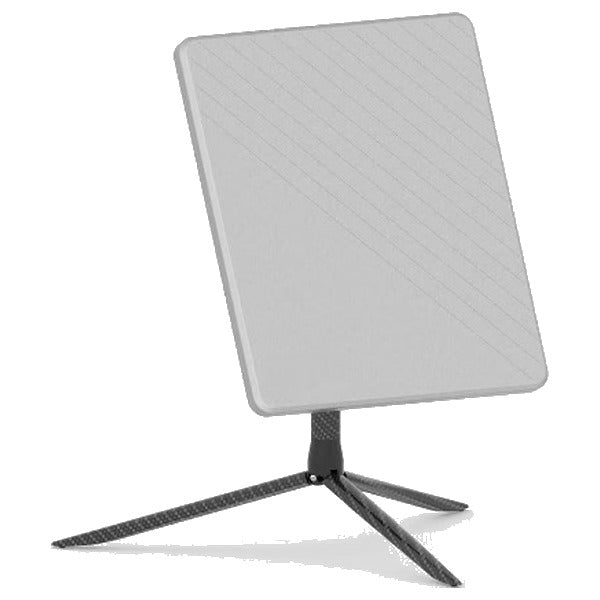

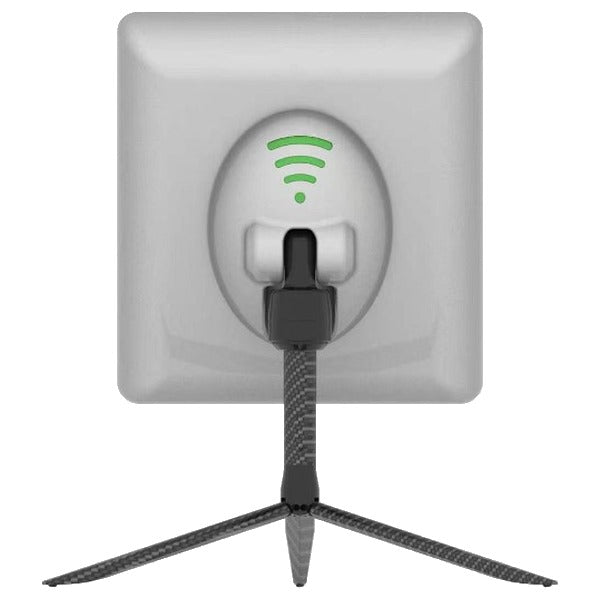

WAYFARER 0.35m Ku-Band Auto Flyaway Antenna - Flat Panel
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| acquisition and tracking | Automatic |
| antenna aperture | 0.35 m |
| antenna category | Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Flat Panel Array (Micro-strip Gap Array) |
| cross polarization isolation | ≥30 dB |
| polarization | Linear |
| sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | ≥ 85 dB |
| port isolation Tx-Rx | ≥ 40 dB |
| power capacity | ≤ 150 W |
| Rx frequency | 10.75 - 12.75 GHz |
| rx gain | ≥ 31.2dBi+20lg(f/12.50GHz)dBi |
| Rx VSWR | ≤ 1.8 |
| Tx frequency | 13.75 - 14.50 GHz |
| tx gain | ≥ 33.4dBi+20lg(f/14.25GHz)dBi |
| Tx VSWR | ≤ 1.8 |
| INTERFACE SPECIFICATIONS | |
|---|---|
| positioning mode | Beacon / DVB carrier |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95% ±3% (20°C - 60°C) |
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | ≤ 11 m/s |
| windspeed survival | ≤ 18 m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| product dimensions (LxWxH) | 415 x 328 x 80 mm |
| product weight | ≤ 6 kg (excluding packaging and accessories) |
| RMS | 0.3 dB |
