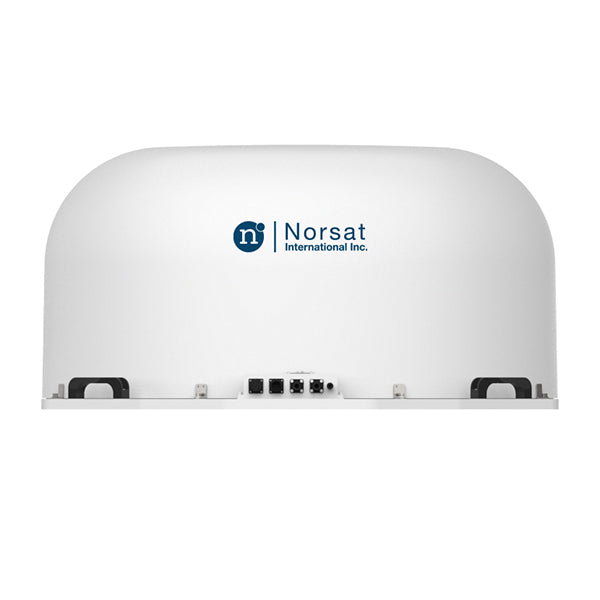

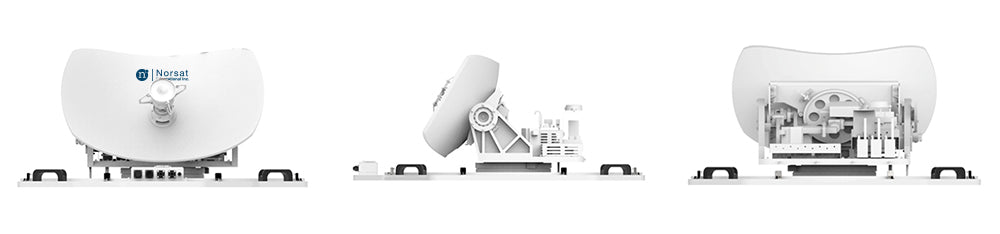

WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed
WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed

WOM055KUP

WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna - Ring Focus Prime Feed

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



Receive Rejection Filter

KEY SPECIFICATIONS
antenna aperture 0.55 m
antenna category On the Move
band Ku-Band
number of onboard LOs Single-Band
Product Revision B
ANTENNA SPECIFICATIONS
antenna type Ring Focus Prime Feed
azimuth acceleration ≥ 200 °/s2
azimuth angle 360° unlimited
azimuth velocity ≤ 60 °/s
blockage recovery time ≤ 5 s（Blockage 20min）
cross polarization isolation ≥35 dB
elevation acceleration ≥ 200 °/s2
elevation angle 0° - 90°
elevation veolcity ≤ 60 °/s
initial auto acquisition time ≤ 3min
polarization Linear
polarization range ± 95°
polarization velocity ≤ 40 °/s
protocol OpenAMIP
sidelobe AZ ≤ -14 dB
RF SPECIFICATIONS
port isolation Rx-Tx 85 dB
port isolation Tx-Rx 40 dB
power capacity 100 W
Rx frequency 10.70 - 12.75 GHz
rx gain ≥ 34.0dBi+20lg(f/12.5GHz)dBi
Rx interface WR75
Rx VSWR ≤ 1.5：1
Tx frequency 13.75 - 14.50 GHz
tx gain ≥ 35.0dBi+20lg(f/14.25GHz)dBi
Tx interface WR75
Tx VSWR ≤ 1.5：1
ELECTRICAL SPECIFICATIONS
power supply 220VAC 50Hz, ≤300W (excluding BUC)
INTERFACE SPECIFICATIONS
positioning mode GPS + BD + DVB module
ENVIRONMENTAL SPECIFICATIONS
humidity 95% (20℃)
IP rating IP 65
temperature operational -40°C to +55°C
temperature storage -50 °C to +70°C
windspeed operational ≤ 21 m/s
windspeed survival ≤ 35 m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) Power supply, RF cable and Communication Cable
default cable length 10 m
product weight 52 kg
RMS ≤ 0.5 dB（R.M.S）
