WOM060KUA

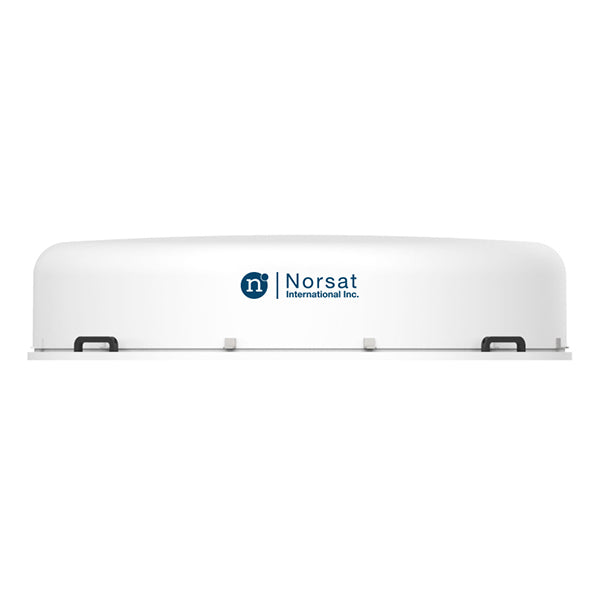

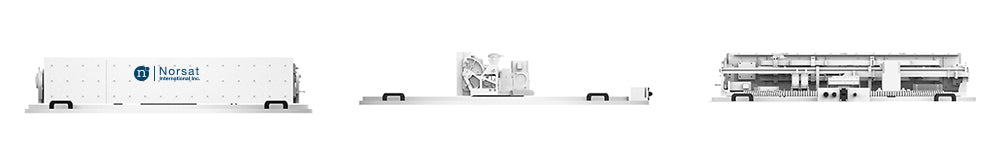

WAYFARER 0.6m Ku-Band Communications-on-the-Move Antenna - Flat Panel
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 0.6m |
| antenna category | On the Move |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Flat Panel |
| azimuth acceleration | ≥ 200 °/s2 |
| azimuth angle | 360° unlimited |
| azimuth velocity | ≤ 60 °/s |
| blockage recovery time | ≤ 5 s（Blockage 20min） |
| cross polarization isolation | ≥30 dB |
| elevation acceleration | ≥ 200 °/s2 |
| elevation angle | 5° - 85° |
| elevation veolcity | ≤ 60 °/s |
| initial auto acquisition time | ≤ 3min |
| polarization | Linear |
| polarization range | 360° Unlimited |
| polarization velocity | ≤40 °/s |
| sidelobe | AZ ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | 85 dB |
| port isolation Tx-Rx | 40 dB |
| power capacity | 100 W |
| Rx frequency | 10.70 - 12.75 GHz |
| rx gain | ≥ 35.3dBi+20lg(f/12.5GHz)dBi |
| Rx interface | WR75 |
| Rx VSWR | ≤ 1.5：1 |
| Tx frequency | 13.75 - 14.50 GHz |
| tx gain | ≥ 36.3dBi+20lg(f/14.25GHz)dBi |
| Tx interface | WR75 |
| Tx VSWR | ≤ 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | 220 VAC, 50 Hz, ≤300W (excluding BUC) |
| INTERFACE SPECIFICATIONS | |
|---|---|
| positioning mode | GPS+BD |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95% (20℃) |
| IP rating | IP 65 |
| temperature operational | -25°C to +55°C (cabin equipment); -40°C to +65°C (Extravehicular equipment) |
| temperature storage | -40°C to +65°C |
| windspeed operational | ≤ 21m/s |
| windspeed survival | ≤ 35m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable (included) | Power supply, RF cable and Communication Cable |
| default cable length | 10m |
| product weight | ≤ 80 Kg (excluding BUC, LNB, packaging and accessories) |
| RMS | ≤ 0.5 dB（R.M.S） |
