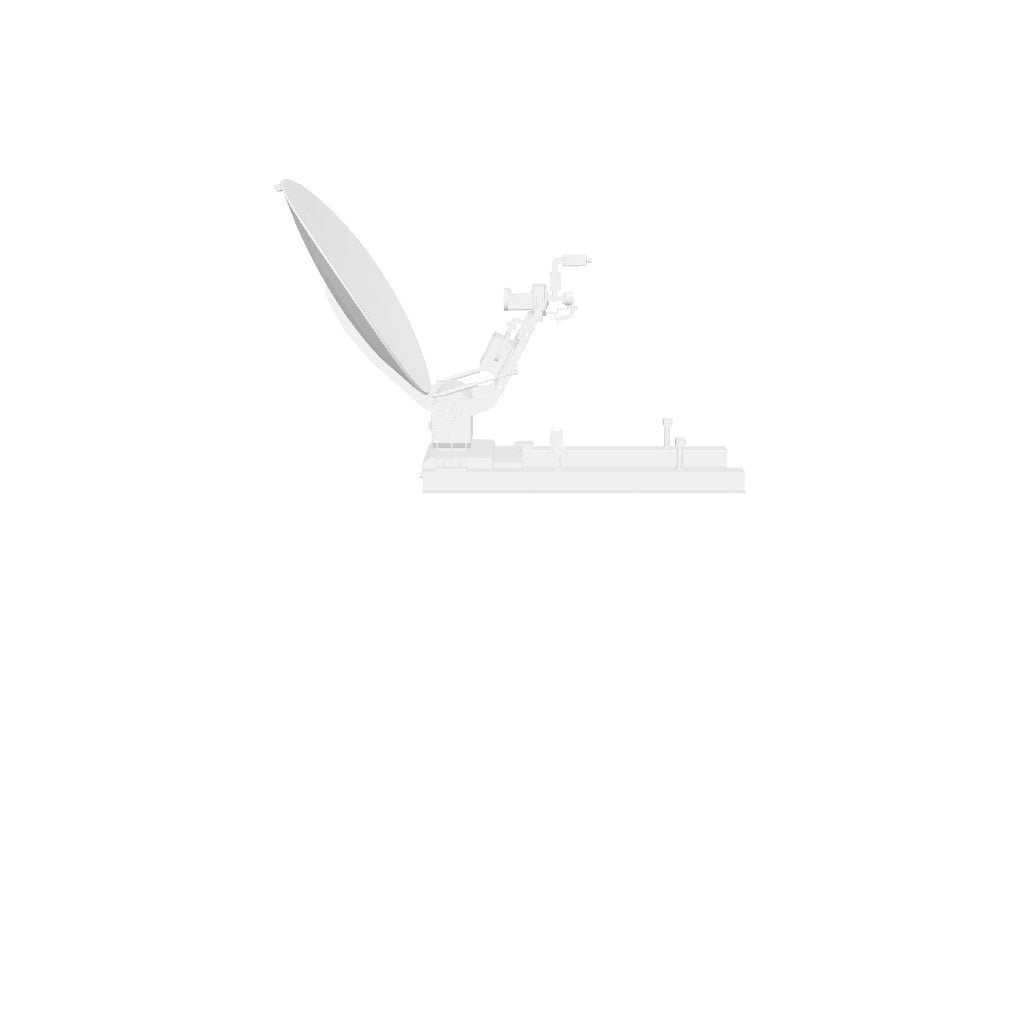

WAYFARER 0.9m Ku-Band Driveaway Antenna - Single Offset
WAYFARER 0.9m Ku-Band Driveaway Antenna - Single Offset
WAYFARER 0.9m Ku-Band Driveaway Antenna - Single Offset
WAYFARER 0.9m Ku-Band Driveaway Antenna - Single Offset
WAYFARER 0.9m Ku-Band Driveaway Antenna - Single Offset

WDA090KUS

WAYFARER 0.9m Ku-Band Driveaway Antenna - Single Offset

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!



KEY SPECIFICATIONS
antenna aperture 0.9m
antenna category Drive Away
band Ku-Band
number of onboard LOs Single-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Single Offset
azimuth angle ±220°
azimuth velocity 0.1～3°/s
blockage recovery time ≤1min
cross polarization isolation ≥30 dB
elevation angle 10°-90°
elevation veolcity 0.1～3°/s
initial auto acquisition time ≤3min
polarization Linear
polarization range ±90°
polarization velocity 0.1°/s～3°/s
sidelobe ≤-14dB
RF SPECIFICATIONS
port isolation Rx-Tx ≥85dB
port isolation Tx-Rx ≥40dB
power capacity ≤500 W
Rx frequency 18.70 - 21.20 GHz
rx gain 42.7+20lg(f/20.0)dBi
Rx interface WR75
Rx VSWR ≤ 1.35 : 1
Tx frequency 29.00 - 31.00 GHz
tx gain 46.3+20lg(f/30.0)dBi
Tx interface WR75
Tx VSWR ≤ 1.35 : 1
ELECTRICAL SPECIFICATIONS
power supply 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC)
ENVIRONMENTAL SPECIFICATIONS
humidity 95%（20°C）
IP rating IP65
temperature operational -40°C to +60°C
temperature storage -50°C to +70°C
windspeed operational 13m/s
windspeed survival 20m/s
PHYSICAL SPECIFICATIONS
color White
default cable (included) 1. Chassis - turntable: RF cable, power supply, power amplifier communication, power amplifier power supply (8 m). 2. Chassis: Power supply (3 m), network cable (5 m)
number of cases 1
packed by wood crate and aluminium shipping case
product height 1650 mm
product length 2110 mm
product weight 65 kg
product width 1000 mm
