WFM100KUP

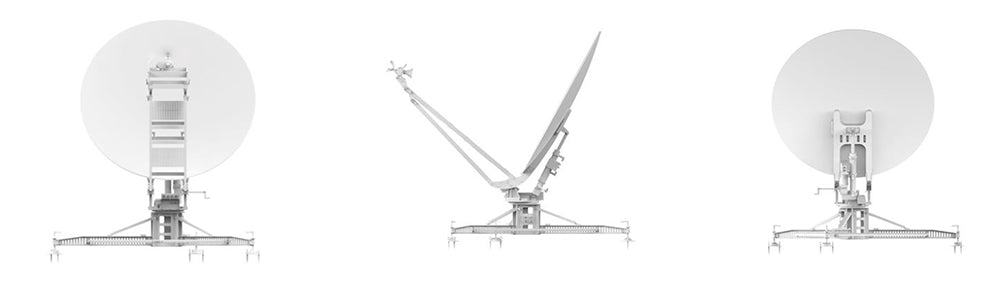

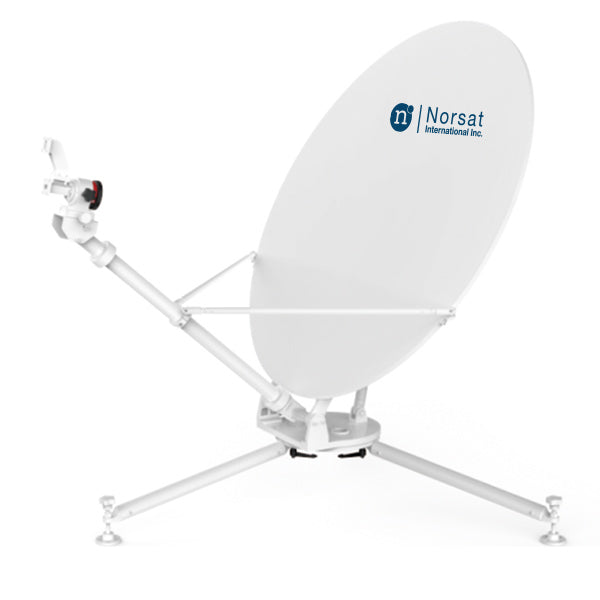

WAYFARER 1.0m Ku-Band Manual Flyaway Antenna - Ring Focus Prime Feed
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 1.0m |
| antenna category | Manual Flyaway |
| band | Ku-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Ring Focus Prime Feed |
| azimuth angle | ± 200° |
| cross polarization isolation | ≥35 dB |
| elevation angle | 10° - 90° |
| polarization | Linear |
| polarization range | ± 90° |
| sidelobe | First sidelobe ≤ -14 dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | 85 dB |
| port isolation Tx-Rx | 40 dB |
| power capacity | 100 W |
| Rx frequency | 10.95 - 12.75 GHz |
| rx gain | ≥ 39.9dBi+20lg(f/12.5GHz)dBi |
| Rx interface | WR75 |
| Rx VSWR | ≤ 1.5：1 |
| Tx frequency | 13.75 - 14.50 GHz |
| tx gain | ≥ 41.0dBi+20lg(f/14.25GHz)dBi |
| Tx interface | WR75 |
| Tx VSWR | ≤ 1.5：1 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95% (20℃) |
| IP rating | IP 65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50 °C to +70°C |
| windspeed operational | ≤ 11m/s |
| windspeed survival | ≤ 18m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable length | 10m |
| product weight | ≤ 26 kg (excluding BUC, LNB, packaging and accessories) |
