WFA120KAB

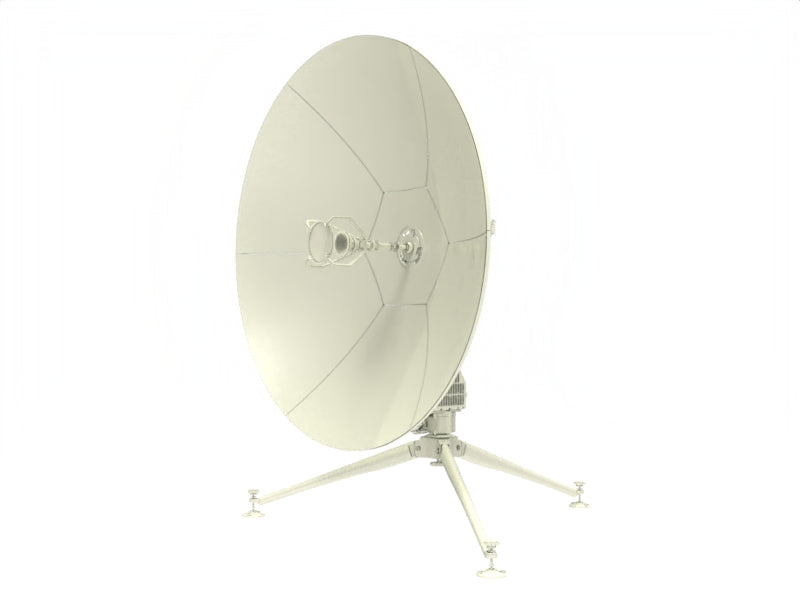

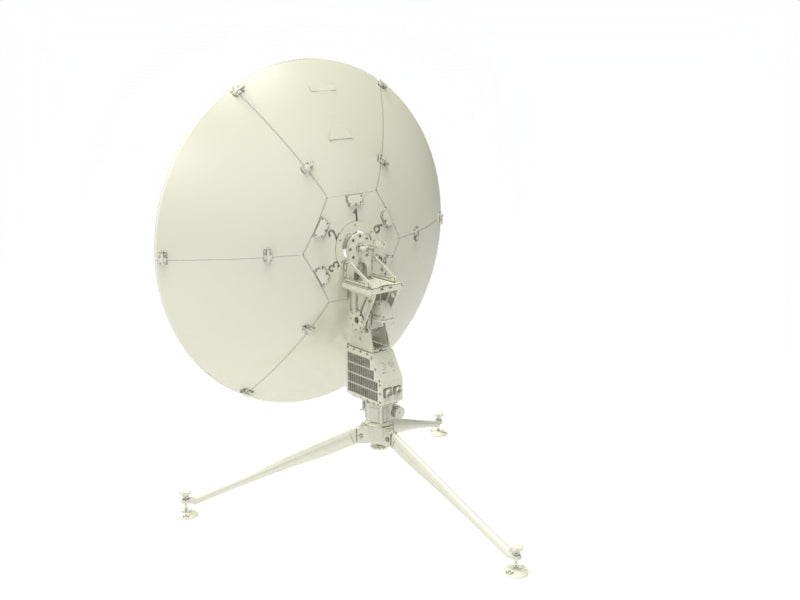

WAYFARER 1.2m Ka-Band Auto Flyaway Antenna - Feed Back
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 1.2m |
| antenna category | Auto Flyaway |
| band | Ka-Band |
| number of onboard LOs | Single-Band |
| Product Revision | A |
| ANTENNA SPECIFICATIONS | |
|---|---|
| antenna type | Feed Back |
| axis ratio | ≤ 1.0 dB |
| azimuth angle | ±90° |
| azimuth velocity | 0.1°/s～3°/s |
| blockage recovery time | ≤1min |
| elevation angle | 5° - 90° |
| elevation veolcity | 0.1°/s～3°/s |
| initial auto acquisition time | ≤3min |
| polarization | Circular |
| polarization range | ±90° |
| polarization velocity | 0.1°/s～3°/s |
| sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
|---|---|
| port isolation Rx-Tx | ≥85dB |
| port isolation Tx-Rx | ≥40dB |
| power capacity | ≤500 W |
| Rx frequency | 17.70 - 21.20 GHz |
| rx gain | 45.16+20lg(f/20)dBi |
| Rx interface | WR42 |
| Rx VSWR | ≤ 1.5 : 1 |
| Tx frequency | 29.00 - 31.00 GHz |
| tx gain | 48.69+20lg(f/30)dBi |
| Tx interface | WR28 |
| Tx VSWR | ≤ 1.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| power supply | 220 VAC ± 10 50Hz ± 2Hz; ≤350W (not include BUC) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 95%（20°C） |
| IP rating | IP65 |
| temperature operational | -40°C to +60°C |
| temperature storage | -50°C to +70°C |
| windspeed operational | 13m/s |
| windspeed survival | 20m/s |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| color | White |
| default cable (included) | Power supply and network cable |
| default cable length | 5 m |
| number of cases | 2 |
| packed by | wood crate and aluminium shipping case |
| product height | 1500 mm |
| product length | 1250 mm |
| product weight | 25kg |
| product width | 1500 mm |
