1.2m Ku-Band Auto X/Y Flyaway Antenna
1.2m Ku-Band Auto X/Y Flyaway Antenna
1.2m Ku-Band Auto X/Y Flyaway Antenna
1.2m Ku-Band Auto X/Y Flyaway Antenna

WFA-100224

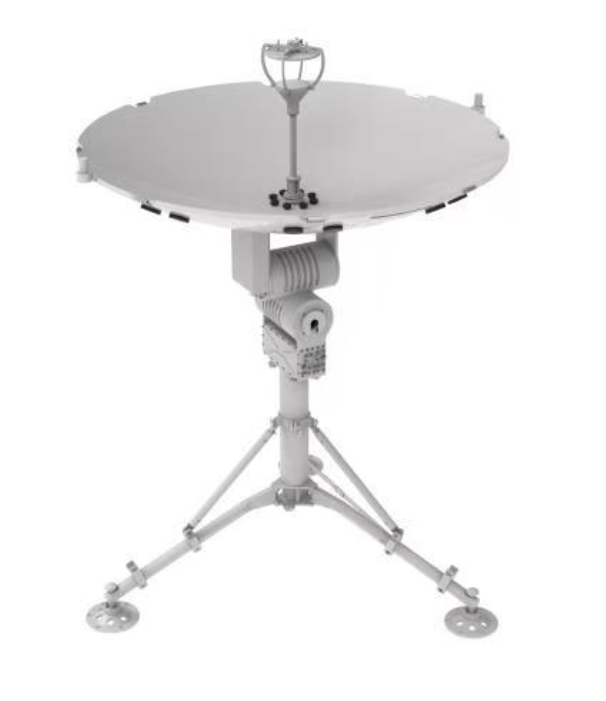

1.2m Ku-Band Auto X/Y Flyaway Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 1.2m
band Ku-Band
Product Revision A
ANTENNA SPECIFICATIONS
antenna type Ring Focus
axial ratio ≤ 1.5 (axial)
feed interface Tx: WR75; Rx: WR75
polarization Circular
sidelobe First sidelobe: ≤ -14 dB
x axis range ± 90°
x axis speed 0.1°/s to 5°/s
y axis range ± 90°
y axis speed 0.1°/s to 5°/s
RF SPECIFICATIONS
movement platform Motorized X-Y Antenna
Rx frequency 10.70 - 12.75 GHz
rx gain ≥41.5+20lg(f/12.50) dBi
Rx VSWR 1.5 : 1 max.
Tx frequency 13.75 - 14.50 GHz
tx gain ≥42.8+20lg(f/14.25) dBi
tx rx isolation port isolation Transceiver: ≥ 40 dB (field amplifier input)
Receiver: ≥ 90 dB (power amplifier output port)
Tx VSWR 1.5 : 1 max.
INTERFACE SPECIFICATIONS
AC input interface North America (NEMA 5/15)
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95% (20°C)
temperature operational -40 to +55°C
temperature storage -50 to +70°C
weatherproofing IP 65
wind load operational 11 m/s (with ballast)
wind load survival 20 m/s (with ballast)

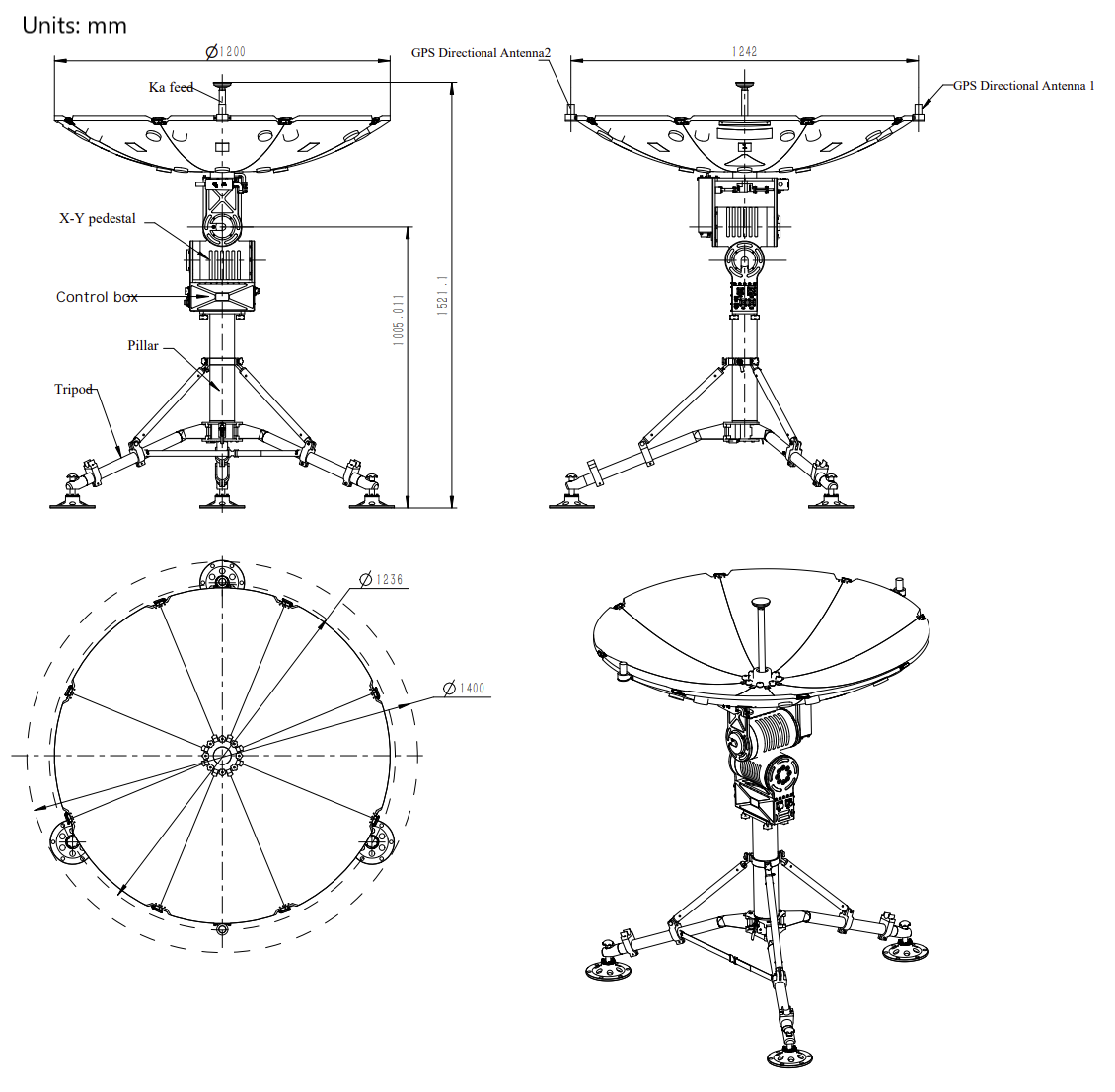

PHYSICAL SPECIFICATIONS
color White
product weight ≤ 38 kg (excluding BUC, LNB, packaging and accessories)
